BOSE Videobar VB1 conference Device With Wi-Fi, Bluetooth (App-controlled)

204,661.00

Key Features

  • Includes table stand and wall-mount kit to mount easily in multiple ways; display mounting accessory also available (sold separately)
  • Connect to existing network infrastructure, making installation and troubleshooting faster and allowing for remote updates, management, and monitoring
  • Videobar Configuration software for easy initial setup, available as an app or via web browser; and manage remotely with Videobar Administration software for single-device or enterprise- wide, multi-device changes, and to view device status
  • Videobar Mobile app for real-time control from a smartphone; easily adjust volume, mute, pan, tilt, zoom, present controls, and Bluetooth pairing
  • Bluetooth connectivity to use as a standalone speakerphone or to stream music
  • Works with a variety or third-party hardware devices — learn more about our Alliance Partner Network
  • Connections: USB Type-C®, Wi-Fi, 1 Gbps Ethernet, Bluetooth connectivity, HDMI output, 3.5 mm (1/8in) aux input, and 2-pin Euroblock GPI
Categories: ,

Description

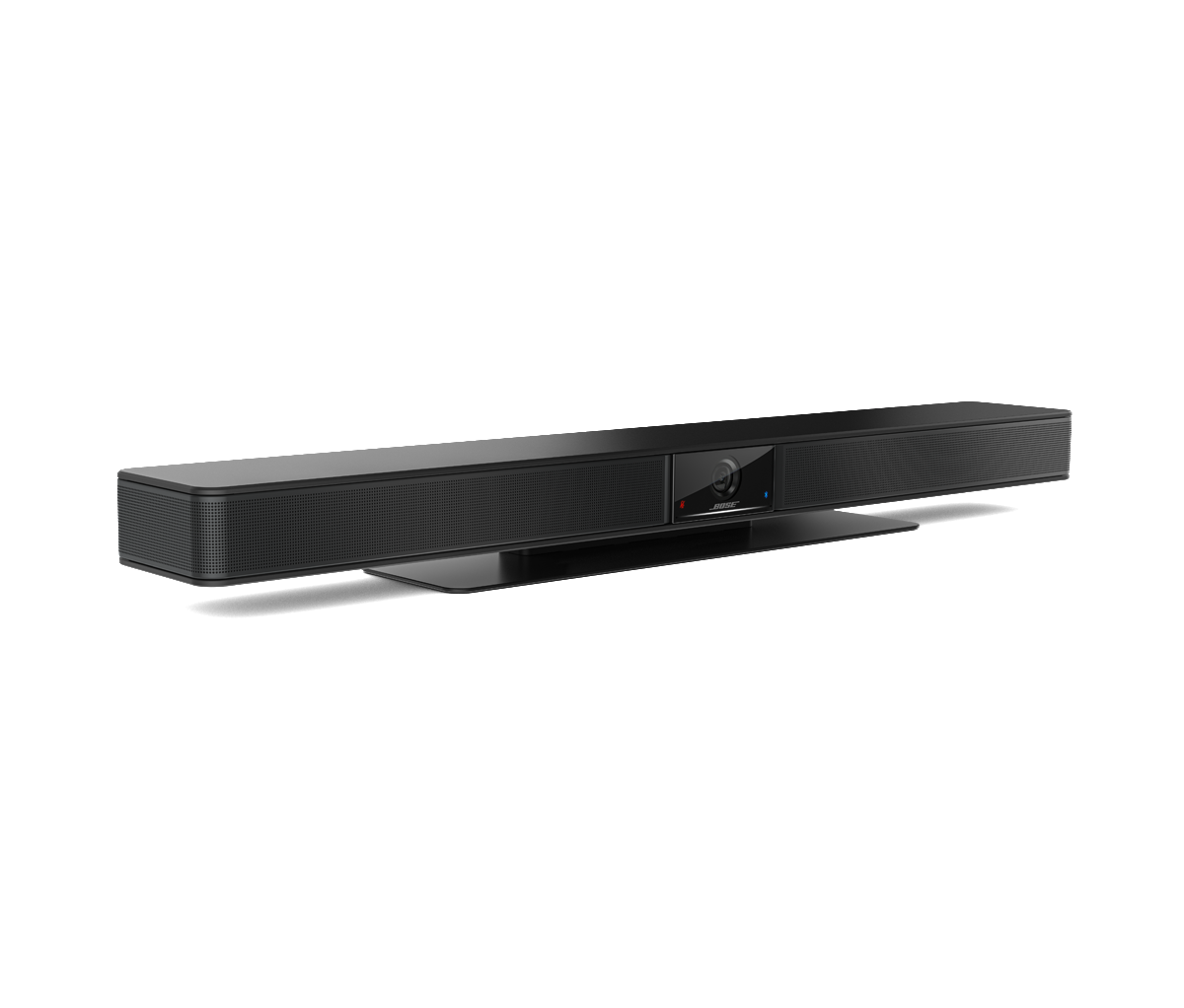

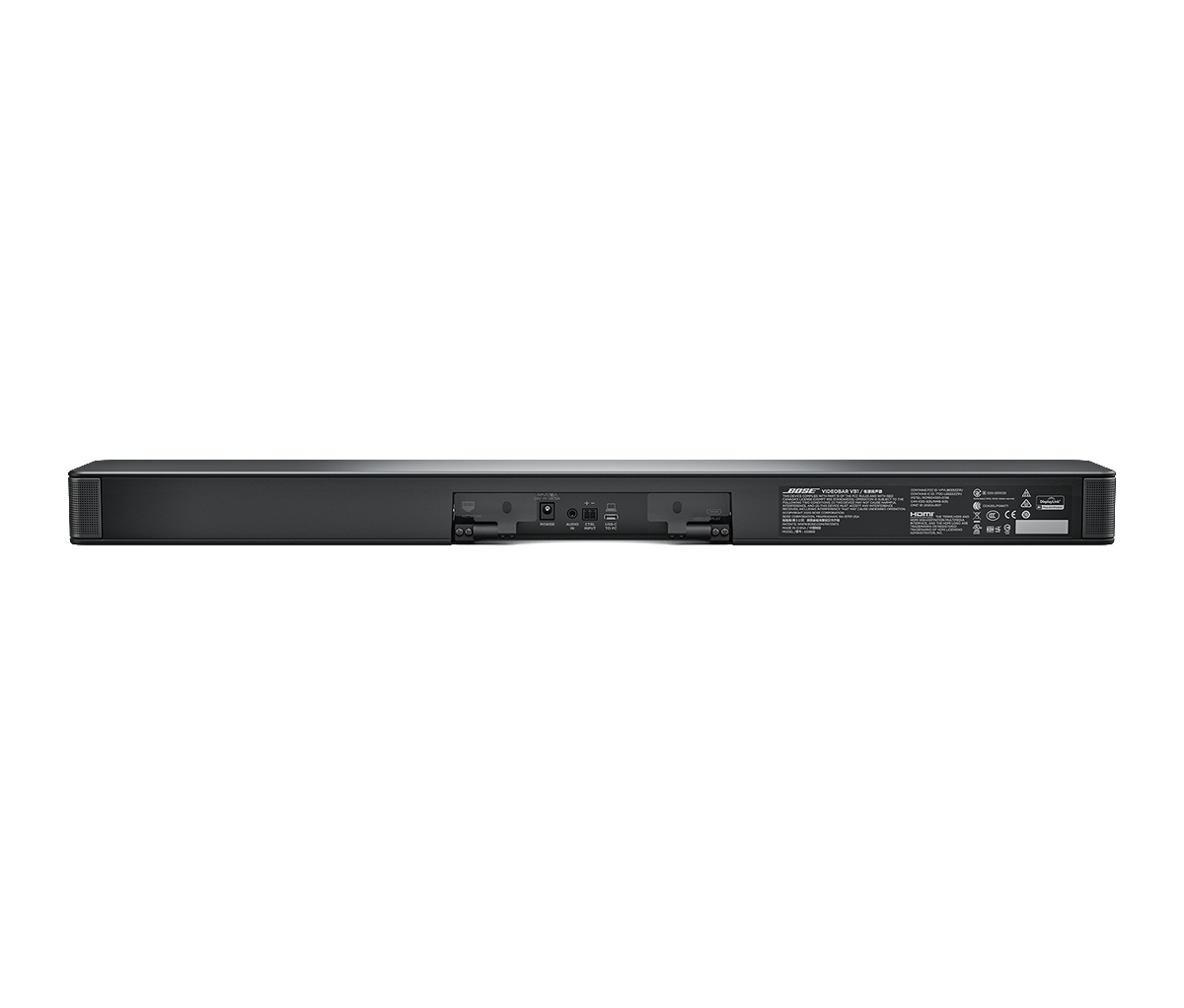

Bose Professional Videobar VB1 is an all-in-one USB conferencing device that brings premium audio and video to huddle spaces to medium-sized meeting rooms up to 6 × 6 meters (20 × 20 feet). With six automatic beam-steering microphones, a 4K ultra-HD camera, and signature sound, the Videobar VB1 helps you huddle up and get more done.

 Specification

AMPLIFICATION
  • Maximum Peak Power, Symmetrical
  • 20 W
  • Rated Power, Symmetrical
  • 20 W per channel, < 0.3% distortion over frequency range
AUDIO INPUTS, ANALOG
  • Connectors
  • (1) stereo 1/8-in (3.5 mm)
PHYSICAL
  • Colors
  • Black
  • Suspension/Mounting
  • Tabletop stand, wall-mount bracket, display mounting kit (optional), mud ring (optional)
  • Net Weight
  • 5.6 lb (2.5 kg)
  • Operating Temperature Range
  • 0 °C to 40 °C (32 °F to 104 °F), 90% non-condensing humidity
  • Product Dimensions (H×W×D)
  • 1.9 in × 27.0 in × 4.0 in (48 mm × 659 mm × 102 mm)
  • Shipping Dimensions (H×W×D)
  • 27.0 in × 1.9 in × 3.8 in (686 mm × 48 mm × 96 mm)
  • Storage Temperature
  • -40 °C to 70 °C (-40 °F to 158 °F), 93% relative humidity
  • Shipping Weight
  • 12.0 lb (5.4 kg)
COMPLIANCE
  • EMC
  • FCC Part 15B Class B, ICES-003 Class B, CISPR 13, EN55032 Class B, EN55035, EN61000-3-2, EN61000-3-3, BSMI CNS13439
  • Safety
  • IEC/UL/EN 60065:2014/A11:2017, IEC/UL/EN 62368-1:2014/A11:2017
CAMERA AND VIDEO
  • Focus Distance
  • 0.5 m (1.6 ft) to ∞
  • Field of View (FOV)
  • 123° diagonal × 115° horizontal × 81° vertical
  • Image Sensor
  • 8 MP
  • Lens
  • Up to 5x digital zoom
  • Positioning
  • Autoframing mode, manual pan-tilt-zoom (PTZ) with configurable presets
  • Processing
  • Automatic white balance, automatic brightness, digital noise reduction
  • Supported Video Resolutions
  • UHD 2160p (4K), 1080p, 720p, 960×480, 848×480, 640×480, 640×360, 432×240 (30 fps)
  • USB Device Video Class (UVC)
  • v1.1
  • Video Encoding
  • H.264, M-JPEG
CONTROL INPUTS
  • Inputs (Control)
  • (1) general purpose, 2-pin Euroblock
COMMUNICATION PORTS
  • Bluetooth
  • Bluetooth 4.2 HSP, A2DP, AVRCP, Bluetooth Low Energy
  • Network
  • RJ-45, 1 Gbps Ethernet, IEEE 802.3 (wired) / Wi-Fi 802.11ac (wireless)
ELECTRICAL
  • AC Power Connector
  • External power supply with local power cord (included)
  • AC Power Input
  • 110–240 VAC, 50/60 Hz, 1.5 A maximum
GENERAL
  • Computer Interface Connection
  • USB Type-C (USB 3.0 UAC, UVC, HID)
  • Software Applications
  • Videobar Configuration (Windows, macOS, web browser), Videobar Administration (Windows), Videobar Mobile (Android, iOS)
  • System Requirements
  • Windows 7, 8.1, or 10 / macOS 10.10 or later / Chrome OS (Google Chromebook)
INDICATORS AND CONTROLS
  • LED Status Indicators
  • (1) LED light bar, (1) mute LED, (1) Bluetooth LED
MICROPHONE
  • Microphone Type, Quantity and Size
  • 6 microphones
  • Pickup Range
  • 6.0 m (19.7 ft)
  • Technology
  • Static and adaptive dynamic beam-forming, 3 exclusion zones, stereo acoustic echo cancellation (AEC), digital noise suppression
PERFORMANCE
  • Calculated Maximum SPL @ 1 m
  • 89 dB (IEC 60268-5, mono input, wall-mounted)
