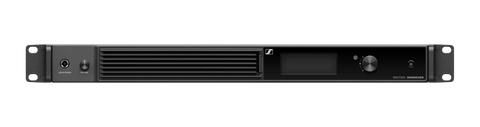

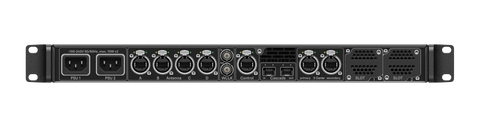

Sennheiser Spectera Base Station Rackmount 64-Channel Bidirectional Wireless Transceiver
Sennheiser Spectera Base Station Rackmount 64-Channel Bidirectional Wireless Transceiver

Sennheiser Spectera Base Station Rackmount 64-Channel Bidirectional Wireless Transceiver

Rs. 0.00

Key Features

19’’ 1 RU Base Station with redundant power supplies

Provides up to 64 channels (32 in / 32 out) and allows for up to two independent wideband RF carriers in UHF or 1G4 (6 or 8 MHz) – country specific per region license

4 ethernet antenna ports for redundancy, extended zone coverage, and additional spectrum usage

Redundant Dante® audio interface

Two optional slots for redundant MADI (OM or BNC)

Sample rates of 48 kHz and 96 kHz

Individual sample rate converters for all audio interfaces

Wordclock I/O BNC

Synchronized clock for all audio over RF allows 3D recordings and playback

Adjustable RF power from 10 – 100 mW (country specific)

RJ45 network interface for full remote control with secured interface

11 Audio Link modes with selectable audio codecs (OPUS, SeDAC) or PCM

Secure transmission of confidential content using AES 256 encryption

Future expansion via Cascade port

Selective headphone output with volume control on front panel

OLED display, jog wheel navigation, and rugged metal housing

Base Station activation via Spectera WebUI: Spectera license defines respective frequency spectrum per region (license sold separately)

Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 0.00
Sennheiser Spectera Base Station Rackmount 64-Channel Bidirectional Wireless Transceiver
Rs. 0.00

Product Description

The Spectera Base Station is a 1RU hardware device that provides up to 64 channels (32 in/32 out) and utilizes up to two wideband RF carriers to accommodate all of the unit’s wireless transmission.

It features redundant Dante and optional redundant Madi, assuring seamless integration into your audio network. Additional antennas can be added for redundancy, extended zone coverage, or additional spectrum capacity. The Spectera Base Station supports sample rates of 48 kHz and 96 kHz and features individual sample rate converters for all audio interfaces and wordclock I/O. Base Station must be activated with license per region.

Specifications

Product Type Digital Wireless Base Station
System Sennheiser Spectera
Form Factor 19-inch, 1 RU
RF Channels 2
Audio Channels Up to 64 Channels (32 In / 32 Out)
RF Transmission Multicarrier, TDMA, TDD
RF Bandwidth 6 or 8 MHz per RF Carrier
Frequency Range Depends on connected DAD antennas and regional license
UHF Range 470–608 MHz, 630–698 MHz, depending on region
1G4 Range 1350–1400 MHz, 1435–1525 MHz, depending on region
Audio Frequency Response 20 Hz – 20 kHz (±1 dB)
Audio Link Modes 11 selectable modes
Audio Codecs OPUS, SeDAC, PCM
Encryption AES-256 CTR
Dante Interface 2 × ruggedized RJ45, Primary & Secondary
Dante Audio 32 In / 32 Out, 48 / 96 kHz, 16 / 24 / 32-bit
MADI 2 × expansion slots for optional MADI cards
MADI Audio 32 In / 32 Out, 48 / 96 kHz, 16 / 24-bit
Antenna Connections 4 × ruggedized RJ45 with PoE
Antenna Support Up to 4 DAD UHF/1G4 antennas
Antenna Cable Cat 5e or higher, S/UTP, up to 100 m
Word Clock BNC, 75 Ω Input & Output
Word Clock Rates 48 kHz / 96 kHz
Control Interface 1 Gbit/s Ethernet, ruggedized RJ45
Cascade Interface 2 × SFP+ cages for future expansion
Headphone Output 6.3 mm TRS, 2 × 50 mW RMS @ 32 Ω
RF Output Power Adjustable 10–100 mW, country dependent
Power Supply 2 × Internal Redundant Power Supplies
Input Voltage 100–240 V AC, 50/60 Hz
Power Consumption Approx. 70 W
Dimensions (H × W × D) 44 × 483 × 373 mm
Weight Approx. 6.3 kg without accessories
Operating Temperature -10°C to +50°C
Storage Temperature -25°C to +70°C
Relative Humidity 25–95%, non-condensing
Protection IP2X
Display OLED Display with Jog Wheel Navigation
Housing Rugged Metal
Activation Requires Spectera regional license
Included Accessories Power Cables, Quick Guide, Safety Guide, Manufacturer Declaration
