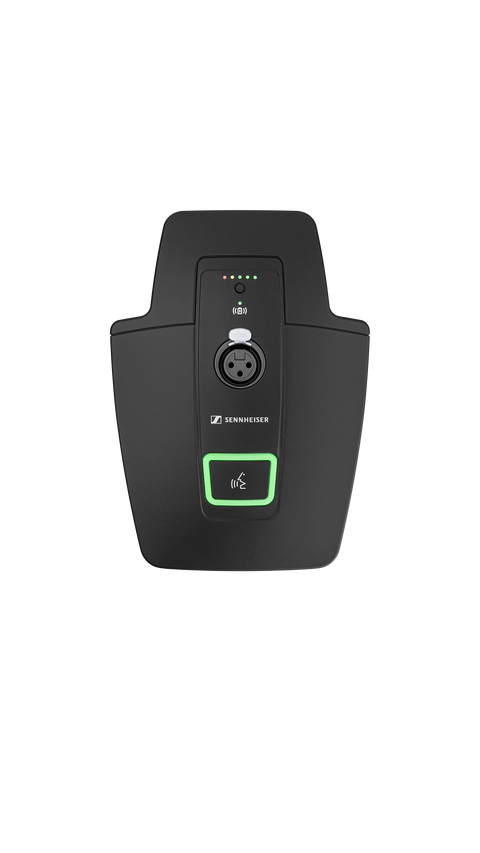

Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly. EW-DX tablestand transmitters are compatible with a wide range of Sennheiser gooseneck microphones.

Specifications

Product Type	Wireless Tablestand Transmitter
Connector	3-Pin XLR
Transducer Type	Condenser
Pickup Pattern	Cardioid / Omnidirectional
Audio Frequency Response	20 Hz – 20 kHz (-3 dB)
Dynamic Range	>134 dB
Latency	1.9 ms
Total Harmonic Distortion	≤ -60 dB
Transmission Method	200 kHz
Transmission Power	10 mW ERP
LD Mode Power	10 mW ERP
Bluetooth LE Power	Max. 10 mW EIRP
Battery	BA 40 Rechargeable Lithium-Ion
Battery Voltage	3.6 V
Operating Time	Approx. 10 Hours
Charging	Inductive Charging via CHG 2W / USB
Input Voltage	2.0 – 4.35 V
Input Current	<300 mA
Bluetooth Frequency	2402 – 2480 MHz
Operating Temperature	-10°C to +50°C
Operating Humidity	5 – 95% RH, Non-Condensing
Dimensions	166.7 × 120.2 × 48.1 mm
Weight	Approx. 650 g (without rechargeable battery)
Housing	Metal
Mute Function	Programmable Mute Switch
Compatible Microphones	Sennheiser 3-Pin Gooseneck Microphones without LED Ring
Frequency Variants	Q1-9, R1-9, S1-10, S2-10, S4-10, U1/5, V3-4, V5-7, Y1-3
Included	EW-DX TS 3-Pin, BA 40 Rechargeable Battery, Quick Guide, Safety Guide
