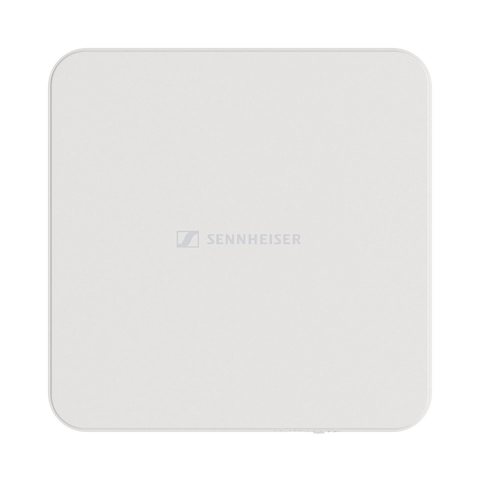

AWM Antenna is an active directional antenna for use with Evolution Wireless Digital microphone systems. The AWM antenna is designed to enhance the wireless performance of your Evolution Wireless Digital system and can be installed quickly and easily in any room, on a vertical (wall) or horizontal (ceiling) surfaces. The AWM UHF can be connected to any stationary Evolution Wireless Digital receiver or EW-D ASA antenna splitter. Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly.
Specifications
| Product Type | Active Directional UHF Antenna |
| Application | Evolution Wireless Digital Systems |
| Frequency Range | 470 – 694 MHz / 823 – 1075 MHz, depending on variant |
| Antenna Type | Active Directional |
| Polarization | Linear |
| Antenna Gain | ≥ +3.0 to +4.5 dBi (UHF I); ≥ +6.0 dBi (UHF II) |
| Apex Angle (-3 dB) | Approx. 80° for UHF II |
| Front-to-Back Ratio | Approx. 10 dB for UHF II |

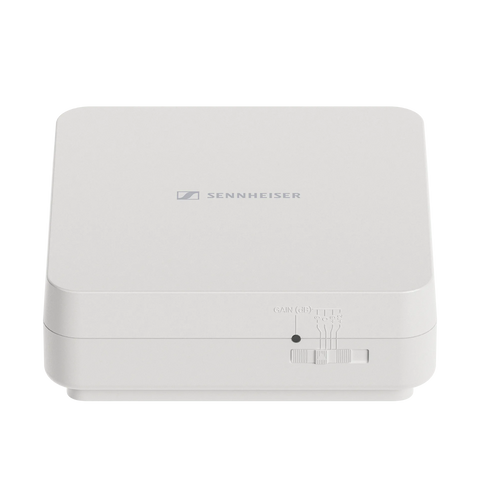

| Adjustable Gain | +12 dB / +6 dB / 0 dB / -6 dB |
| OIP3 | ≥ 35 dBm |
| Maximum RF Output | Approx. +22 dBm |

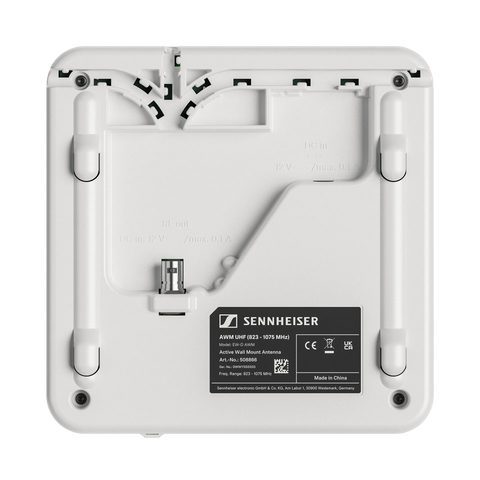

| RF Connection | BNC Female, DC Coupled |
| RF Impedance | 50 Ω |
| DC Connection | 5.5 × 1.6 mm DC Jack |
| Power Supply | 12 V DC (9 – 18 V DC), max. 100 mA @ 12 V |

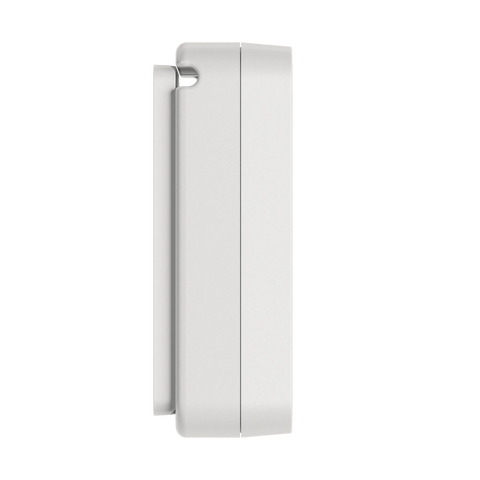

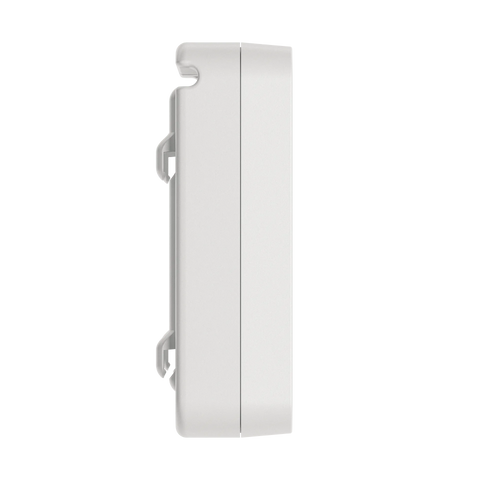

| Mounting | Wall, Ceiling or Microphone Stand |
| Mounting Thread | 3/8" Internal Thread |
| VESA Mounting | 100 × 100 mm |
| Dimensions | 180 × 180 × 53 mm (without mounting plate) |
| Dimensions with Mount | 180 × 180 × 63 mm |
| Weight | Approx. 700 g |
| Housing Material | Halogen-Free Flame-Retardant PC/ABS |
| Color | Traffic White (RAL 9016) |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 5 – 95% |
| Compatible Systems | Evolution Wireless Digital, EW-D / EW-DX |
