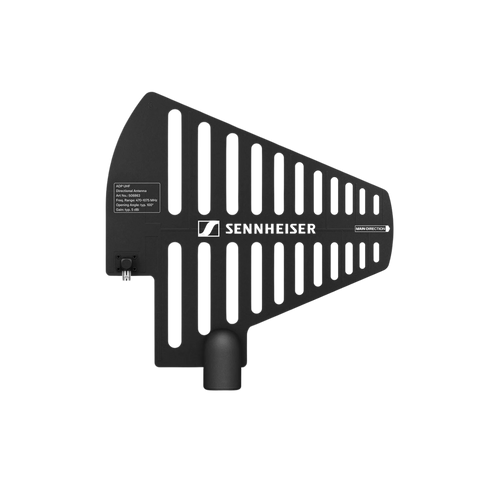

Passive external directional antenna.
Specifications
| Product Type | Passive Directional UHF Antenna |
| Application | Evolution Wireless Digital Systems |
| Frequency Range | 470 – 1075 MHz |
| Apex Angle (-3 dB) | Approx. 100° |
| Front-to-Back Ratio | >14 dB |
| Gain | Typically 5 dBi |
| Impedance | 50 Ω |
| Connection | BNC Female |
| DC Path | No DC Path |
| Tripod Mounting Threads | 3/8" and 5/8" |
| Dimensions | 319 × 310 mm |
| Weight | Approx. 320 g |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +85°C |
| Relative Humidity | 5 – 95% RH |
| Compatible Systems | Sennheiser Evolution Wireless Digital |
| In the Box | 1 × ADP UHF Antenna |
