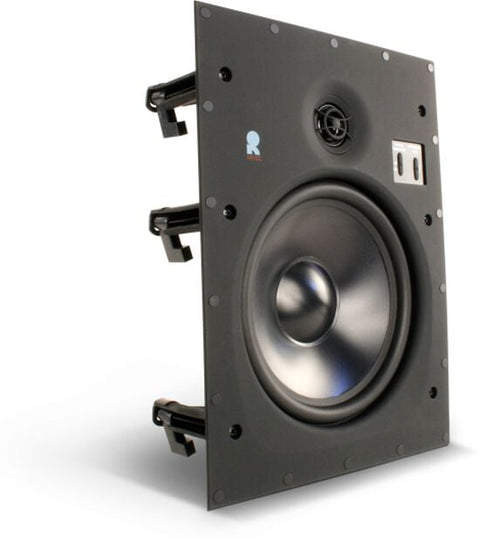

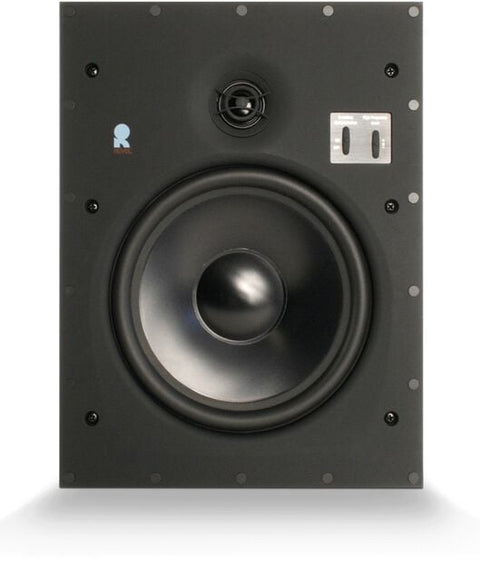

Revel W783 8" In-Wall Loudspeaker
Revel W783 8" In-Wall Loudspeaker
Revel W783 8" In-Wall Loudspeaker
Revel W783 8" In-Wall Loudspeaker

Revel W783 8" In-Wall Loudspeaker

Rs. 65,990.00

Key Features

  • Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
  • 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.

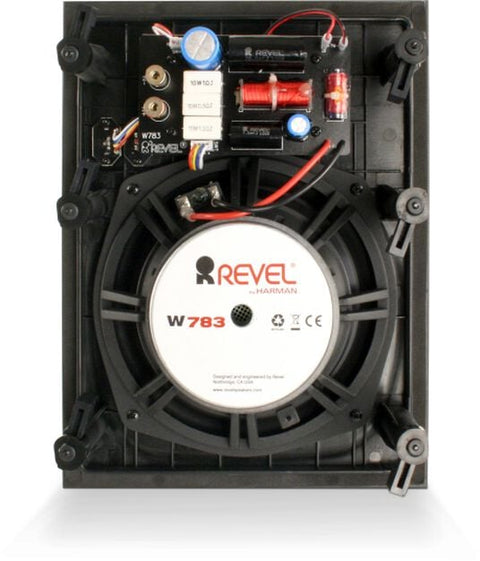

  • High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
  • Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling
  • Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles
Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 65,990.00
Revel W783 8" In-Wall Loudspeaker
Rs. 65,990.00

Product Description

Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves.

Specification

Depth Mounting depth 3.7" (9.4 cm)
Weight 7.1 lb (3.2 kg) / Shipping weight 8.6 lb (3.9 kg)

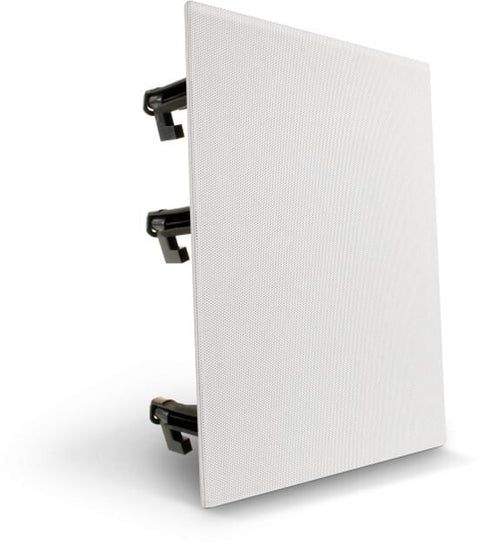

Features Cutout dimensions (H x W) 11.9" x 8.9" (30.3 cm x 22.7 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 12.9" x 9.9" (32.8 cm x 25.2 cm
High Frequency Driver Components 1" aluminum dome swiveling high-output tweeter with waveguide
Low Frequency Extension High Frequency Extension 3-position HF level contr /Low Frequency Extension LF boundary compensation
Low Frequency Driver Components 8" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer
Mounting C-2 mounting mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm)
Recommended Amplifier Power 10 - 150 Watts RMS
