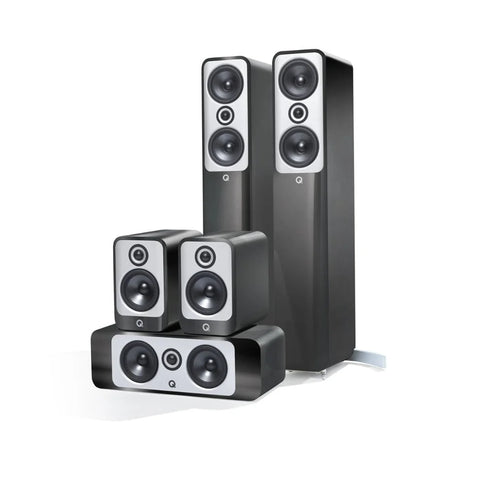

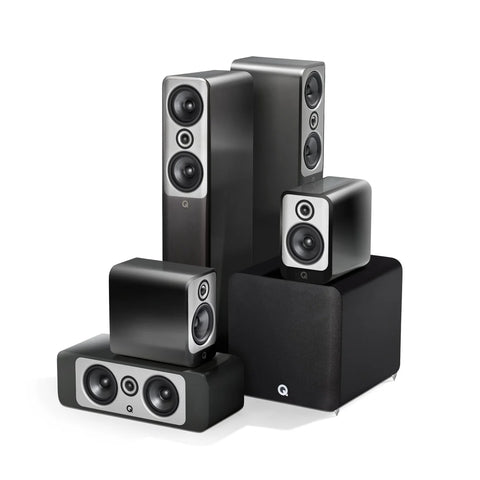

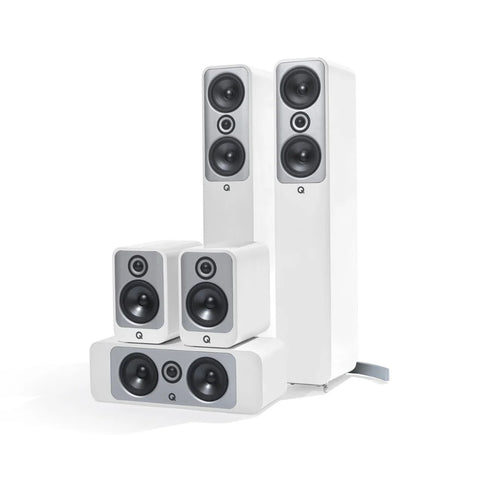

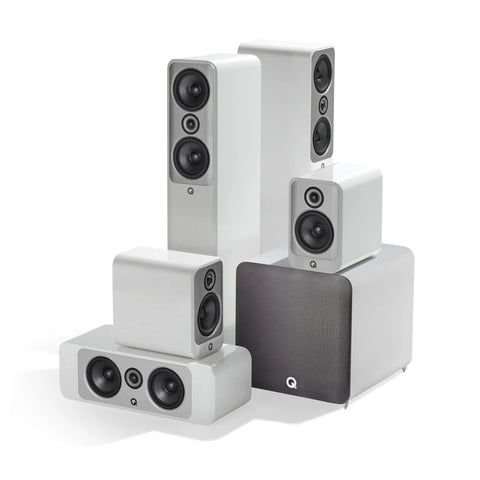

Q Acoustics Concept 50 5.1 with SUB120 Home Cinema
Key Features
Product Description
Bringing scale and widescreen sound to home movie-watching experience, this package ramps up the intensity and entertainment levels to command your attention. A pair of Concept 50 floorstanding speakers at the front end intensifies the power and dynamics, all without sacrificing any insight and subtlety. This 5.1 set-up is as agile and sophisticated as it is commanding and all-encompassing.
Introducing the Concept series
Concept is our range-topping series of loudspeakers, consisting of Concept 30 and Concept 300 standmount models, Concept 50 and Concept 500 floorstanders, Concept 90 centre channel and Concept 50 5.1 home cinema package. Each one delivers pure audio excellence.
Our applied technology
Concept is the embodiment of all the technological advances we’ve made since we began, going beyond anything we’ve accomplished before. We truly believe these beautiful speakers deliver a performance never previously heard at these price points.
Oh so quiet
Our aim with the Concept series was to design the ‘quietest’ cabinet possible. From the pioneering Gelcore™ cabinet construction, through to the Isolation Suspension System, these technologies deliver close to a resonance-free speaker design, as possible.
Style along with substance
Exceptional engineering inside the cabinet is matched by stunning design. The premium finishes – white or black lacquers, with dual gloss and Italian wood veneer also available for the 300 and 500 models - fits perfectly into any listening environment.
Gelcore™ cabinet technology
First introduced in our original Concept loudspeaker, the Gelcore™ cabinet construction is designed to minimise high-frequency noise. A unique design consisting of a non-setting gel sandwiched between two individual layers, our specially developed adhesive converts the high-frequency vibrations generated by driver movement into heat, allowing for a focused and uncoloured audio performance.
Isolation Suspension System
A refinement of the hugely effective ‘isolation base’ principle first fitted to Concept 300, the Concept 50 has an isolation suspension system in the form of a sprung baseplate. Two plates are separated by suspension ‘spheres’ that effectively isolate the cabinet from interference caused by external vibrations. The result is tighter stereo imaging and greater low-frequency extension.
Controlled driver power
Specially developed, ground-up driver designs include a hermitically sealed and decoupled tweeter enclosure to shield from internal resonances from the mid/bass driver and reduce distortion, a driver assembly baffle-mounted design to dampen vibrations, while a larger mid/bass driver voice coil increases motor strength, resulting in a 50% increase in power handling.
P2P™ (Point to Point) bracing
Q Acoustics P2P™ (Point to Point™) bracing technology is used throughout the Concept loudspeaker range - it supports the parts of the cabinet that need to be stiffened, making the elegant enclosures exceptionally rigid. This improves the focus of the stereo image, and gives the soundstage more accuracy than ever before.
HPE™ (Helmholtz Pressure Equalizer)
The Concept 50 and Concept 500 are, like all floorstanding loudspeakers, vulnerable to internal build-up of pressure that causes both unwanted standing waves and colouration. To prevent this occurring, specially designed HPE™ (Helmholtz Pressure Equaliser™) tubes are fitted inside the cabinet to nullify internal pressure and improve frequency response.
Bi-wire speaker cable terminals
Each Concept model has bi-wire terminals on the rear of its cabinet. Using appropriate speaker cable, two pairs of cables can connect an amplifier to the speaker - one carries the high-frequency signal, the other carries midrange and low frequencies. Separating these frequencies minimises the intermodulation distortion that arises when using one length of cable to carry the entire frequency range.
Specifications
Front Speakers – Concept 50
| Details | |
|---|---|
| Bass Drivers | 2 × 125mm (5") |
| Tweeter | 25mm (0.9") |
| Frequency Response | 42Hz – 30kHz |
| Sensitivity | 90.5dB |
| Nominal Impedance | 6Ω |
| Amplifier Power | 25W – 150W |
| Crossover Frequency | 2.1kHz |
| Dimensions (H × W × D) | 1025 × 418 × 319 mm |
| Weight | 22.9kg (Each) |
Surround Speakers – Concept 30
| Details | |
|---|---|
| Bass Driver | 1 × 125mm (5") |
| Tweeter | 25mm (0.9") |
| Frequency Response | 54Hz – 30kHz |
| Sensitivity | 87dB |
| Nominal Impedance | 6Ω |
| Amplifier Power | 25W – 100W |
| Dimensions (H × W × D) | 284 × 180 × 319 mm |
| Weight | 7.9kg (Each) |
Center Speaker – Concept 90
| Details | |
|---|---|
| Bass Drivers | 2 × 125mm (5") |
| Tweeter | 25mm (0.9") |
| Frequency Response | 67Hz – 30kHz |
| Sensitivity | 90dB |
| Nominal Impedance | 6Ω |
| Amplifier Power | 25W – 150W |
| Dimensions (H × W × D) | 184 × 550 × 259 mm |
| Weight | 12.3kg |
Subwoofer – Q SUB120
| Details | |
|---|---|
| Driver Size | 305mm (12") |
| Amplifier Power | 300W RMS / 600W Peak |
| Frequency Response | 28Hz – 250Hz |
| Maximum SPL | 114dB |
| Low-Pass Crossover | 40Hz – 250Hz |
| Enclosure Type | Infinite Baffle |
| Dimensions (H × W × D) | 400 × 400 × 432 mm |
| Weight | 22.5kg |
