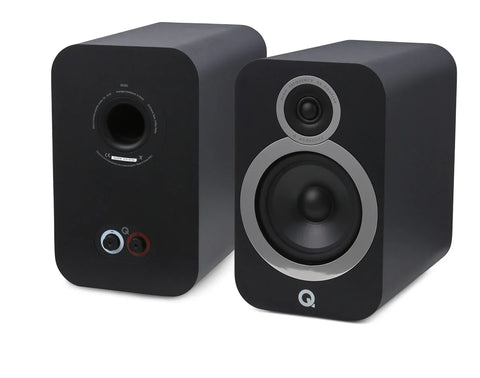

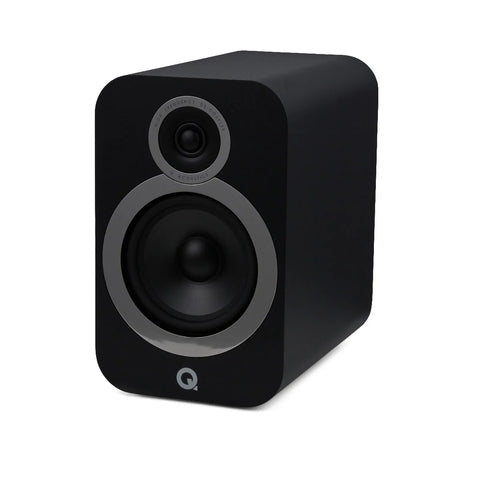

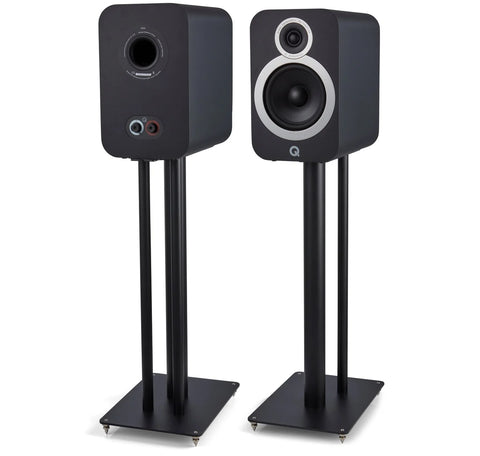

Q Acoustics 3030i Large Bookshelf Speaker
Key Features
Product Description
The Q Acoustics 3030i is the largest bookshelf or stand-mount addition to our award-winning 3000i loudspeaker range. Designed to deliver big, bassy, hard-hitting yet beautifully poised sound from a compact, discreet and good-looking cabinet, it’s packed with Q Acoustics’ latest technological advances.
Introducing the 3000i series
Our most affordable range consists of the 3010i bookshelf, 3020i and 3030i standmount models, 3050i floorstander, with the 3090i centre channel and 3060S slimline subwoofer completing the line-up for a 5.1 home cinema set-up.
Technology from the high end
The 3000i series features acoustic and cabinet technologies first introduced in our high-end flagship floorstanding loudspeaker, the Concept 500. Every model in the range benefits from these ground-breaking innovations.
The style to satisfy
Every model in the range features elegantly curved cabinetry and is available in a choice of Carbon Black, Arctic White, Graphite Grey and English Walnut finishes. These veneers are complemented by chrome-finish bezels and magnetic grilles.
Low-end power and control
The 3060S is a much slimmer and more discreet subwoofer than the norm, but thanks to its powerful 150-watt amplifier and high-performance 200mm bass driver it can generate all the low-frequency presence a home cinema system demands. And its tidy dimensions and choice of four finishes means it looks much more discreet than it sounds.
P2P™ (Point to Point) bracing
Q Acoustics P2P™ (Point to Point™) bracing technology is used throughout the 3000i series - it supports the parts of the cabinet that need to be stiffened, making the new enclosures exceptionally rigid. This improves the focus of the stereo image and gives the soundstage more accuracy than ever before.
High-frequency driver design
The 3000i tweeter unit is mechanically isolated from the baffle via a compliant suspension system to prevent internal pressure modulations from within the cabinet and from the adjacent mid/bass driver - this allows the high-frequency driver to perform with dramatically reduced interference compared to more traditional designs.
Mid/bass driver design
Every 3000i model is fitted with precision-formed mid/bass drivers made from a combination of impregnated and coated paper with a newly developed, low-hysteresis rubber surround. The coated paper cone provides the optimum balance between stiffness and self-damping, which means it can accelerate without flexing and stop very accurately without unwanted resonance.
HPE™ (Helmholtz Pressure Equalizer)
The 3050i, like all floorstanding loudspeakers, is vulnerable to internal build-up of pressure that causes both unwanted standing waves and colouration. To prevent this occurring, specially designed HPE™ (Helmholtz Pressure Equaliser™) tubes are fitted inside the cabinet to nullify internal pressure and improve frequency response.
Specifications
| Speaker Type | Bookshelf Speaker |
| Enclosure Type | 2-Way Reflex |
| Bass Driver | 1 × 165mm (6.5") |
| Tweeter | 22mm (0.9") |
| Frequency Response | 46Hz – 30kHz |
| Average Impedance | 6Ω |
| Minimum Impedance | 4Ω |
| Sensitivity | 88dB (2.83V @ 1m) |
| Stereo Amplifier Power | 25W – 75W |
| AV Receiver Power | 50W – 145W (2 Ch. Driven) |
| Crossover Frequency | 2.4kHz |
| Effective Volume | 12.5L |
| Enclosure Dimensions (H × W × D) | 320 × 200 × 313 mm |
| Overall Dimensions (H × W × D) | 325 × 200 × 329 mm |
| Weight | 6.4kg (Per Speaker) |
