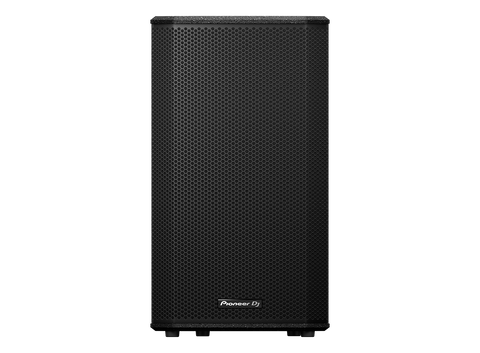

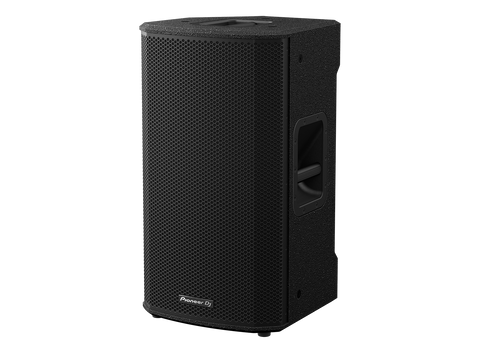

Pioneer XPRS122 12” Full-Range Active Loudspeaker
Key Features
Product Description
The XPRS2 Series couples the versatility and mobility of the original XPRS Series with elevated sound-performance and audio intelligibility to deliver a high-caliber speaker system for mobile DJs, live sound, houses of worship, rental and fixed installations.
Powerful Class D Amplification
The XPRS2 Series employs Class D Amplification with high output wattage for a powerful and premiere audio experience for performers and listeners alike. The XPRS102 and XPRS122 full-range speakers feature Class D 2000 W amplification, while the XPRS1152S and XPRS1182S subwoofers offer Class D 4000 W amplification.
High Quality, Robust Build
Pioneer DJ’s all-new XPRS2 Series features a sleek all-black, protective plywood cabinet for performance in harsh outdoor and indoor environments. The series models all come with a durable handle to support system portability and handling during setup and take down. The XPRS2 Series also features rubber feet to create separation and shock absorption between surfaces.
Four DSP Modes
Both of the XPRS2 full-range speakers contain four different DSP preset modes—Live, Music, Speech and Studio Monitoring—to address the needs of different listening environments.
16 Customizable User DSP Modes
In addition to the four presets, each XPRS2 full-range speaker includes 16 custom user DSP modes - which can be saved with different names - to ensure the EQ settings are maximized for every scenario.
Full-Range Speaker Design
The XPRS122 is the larger full range speaker counterpart in Pioneer DJ’s XPRS2 Series. Featuring a 12” woofer and 3” voice coil with a 1” exit compression driver and 1.75” voice coil, the speakers deliver comprehensive sound coverage across mid to large audiences and venues. Boasting a frequency response of 48 Hz – 20 kHz and a maximum SPL of 131 dB, the versatile full range speaker delivers powerful sound built to thrive in even the harshest of sound environments such as a live DJ set.
Specifications
| Product Type | 12-Inch 2-Way Active Full-Range Loudspeaker |
| Amplifier Type | Class-D |
| Peak Power | 2000 W |
| LF Driver | 12-Inch Woofer |
| LF Voice Coil | 3-Inch |
| HF Driver | 1-Inch Exit Compression Driver |
| HF Voice Coil | 1.75-Inch |
| Frequency Response | 48 Hz – 20 kHz |
| Maximum SPL | 131 dB |
| Crossover Frequency | 2 kHz |
| DSP Presets | Live / Music / Speech / Monitor |
| User DSP Programs | 16 Customizable Presets |
| Inputs | 1 × MIC/LINE Combo, 1 × HI-Z/LINE Combo, 1 × 3.5 mm Stereo Mini |
| Output | 1 × XLR MIX Output |
| EQ | 4-Band Equalizer |
| Pole Mount | 35 mm Socket |
| Rigging Points | 10 × M10 |
| Enclosure | Protective Plywood Cabinet |
| Protection | Thermal Limiting, Overload, Digital Limiter & Compressor |
| Power Supply | AC 110–240 V, 50/60 Hz |
| Power Consumption | 800 W |
| Dimensions (W × H × D) | 362.7 × 637 × 350 mm |
| Weight | 20.2 kg |
| Finish | Black |
| Application | DJs, Live Sound, Worship, Rental & Fixed Installations |
