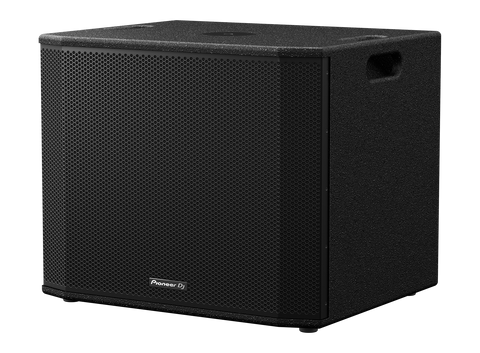

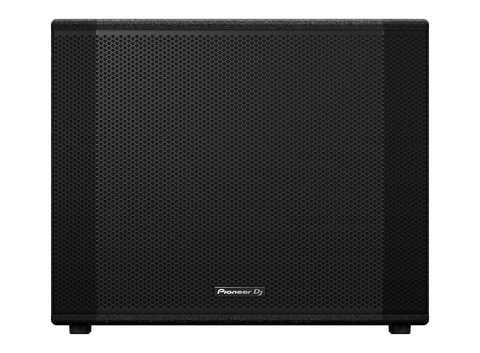

Pioneer XPRS1182ST 18” Reflex Loaded Active Subwoofer
Key Features
Product Description
The XPRS2 Series couples the versatility and mobility of the original XPRS Series with elevated sound-performance and audio intelligibility to deliver a high-caliber speaker system for mobile DJs, live sound, houses of worship, rental and fixed installations.
Powerful Class D Amplification
The XPRS2 Series employs Class D Amplification with high output wattage for a powerful and premiere audio experience for performers and listeners alike. The XPRS82 and XPRS152 full-range speakers feature Class D 2000 W amplification, while the XPRS1152ST and XPRS1182ST subwoofers offer Class D 4000 W amplification.
High Quality, Robust Build

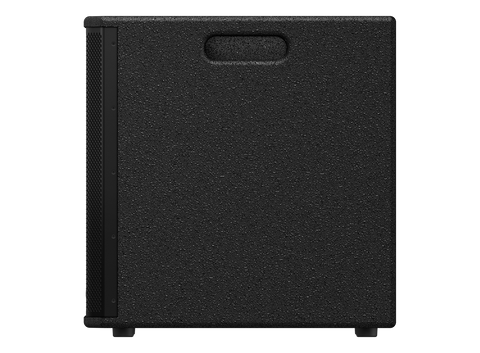

Pioneer DJ’s all-new XPRS2 Series features a sleek all-black, protective plywood cabinet for performance in harsh outdoor and indoor environments. The series models all come with a durable handle to support system portability and handling during setup and take down. The XPRS2 Series also features rubber feet to create separation and shock absorption between surfaces.
Three DSP Modes
Both of the XPRS2 subwoofers contain three different DSP preset modes—Boost, Extended LF, and Normal—to suit different listening environments.
Accurate Audio Performance / Frequency Response
The XPRS1182ST relies on an 18” ferrite woofer with a 3” voice coil with long excursion to produce low frequencies with paramount accuracy.
Offers a 40 Hz – 120 Hz frequency response and 130 dB maximum SPL; the subwoofers pack in the performance of a permanent install subwoofer with the compact mobility required by today’s mobile artists, performers and venues.

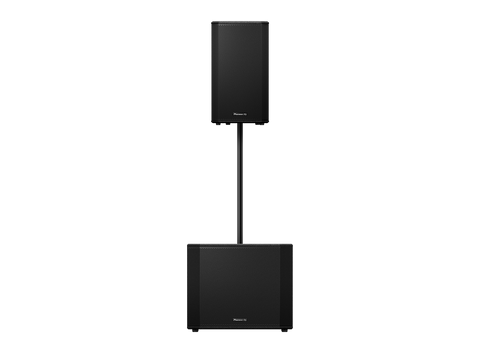

Threaded pole-mount
An M20 screw socket standard metal pole-mount, has been added which provides more stability when setting up.
Specifications
| Product Type | 18-Inch Reflex-Loaded Active Subwoofer |
| Woofer | 18-Inch Ferrite LF Driver |
| Voice Coil | 3-Inch Long-Excursion Voice Coil |
| Amplifier Type | Class-D |
| Peak Power | 4000 W |
| Frequency Response | 40 Hz – 120 Hz |
| Maximum SPL | 130 dB |
| DSP Modes | Boost / Extended LF / Normal |
| DSP Functions | LPF / Polarity |

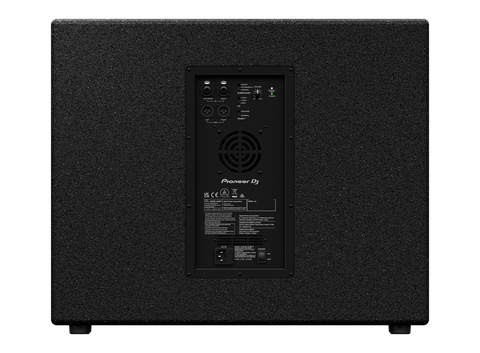

| Inputs | 2 × XLR/TRS Combo (Balanced) |
| Outputs | 2 × XLR Balanced |
| Pole Mount | M20 Threaded Socket |
| Enclosure | Protective Plywood Cabinet |
| Protection | Digital Compressor & Thermal Protection |
| Power Supply | AC 110–240 V, 50/60 Hz |
| Dimensions | Approx. 680 × 536 × 680 mm |
| Weight | Approx. 33.5 kg |
| Finish | Black |
| Package | 1 × XPRS1182ST |
