Rs. 27,190.00

Key Features

Digital Bass Control: Features a built-in DSP with three selectable bass modes (DEEP, NATURAL, and DYNAMIC) to match different music genres and listening preferences.

Highly Efficient Class-D Amplifier: Delivers a maximum output of 170W (50W RMS) with low distortion and ultra-low current consumption of only 4.3 amps.

EV Optimized: Specifically designed for Electric Vehicles, providing deep bass without significantly impacting the vehicle's mileage or driving range.

Honeycomb Enclosure Structure: Reinforces the cabinet to increase rigidity, which helps reduce unwanted vibrations and distortion for cleaner sound.

Flexible Installation: Compatible with both aftermarket and factory-fitted (OE) stereos via RCA (low-level) or speaker-level (high-level) inputs.

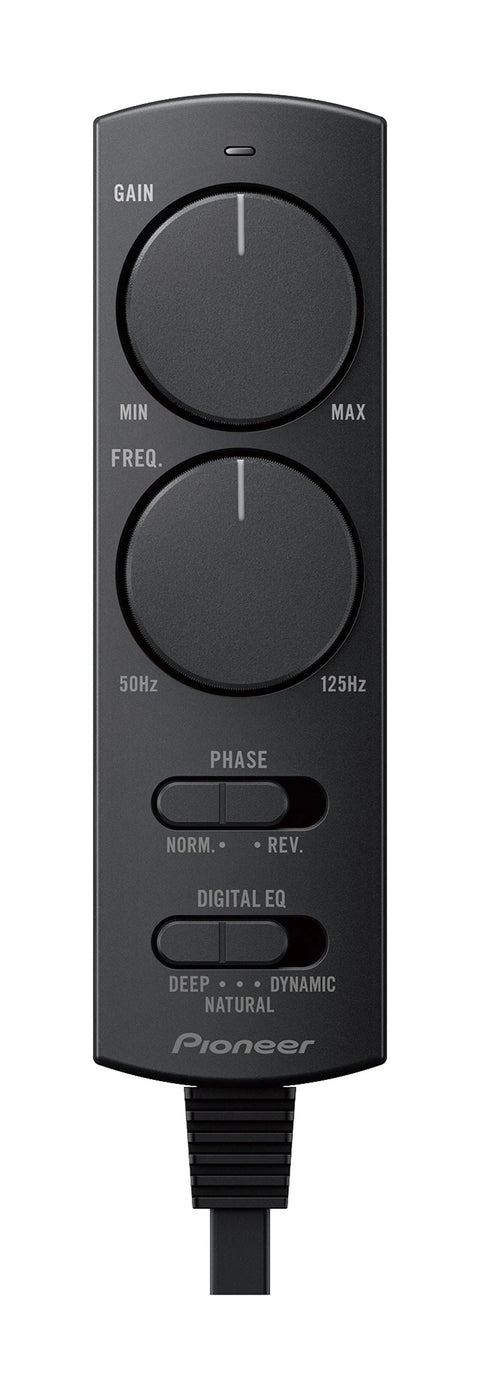

Wired Remote Control: Includes a 6-meter cable for adjusting gain, low-pass filter frequency, phase selection, and bass modes directly from the driver’s seat.

CarSoundFit App Support: Compatible with Pioneer's sound simulator app to help users visualize and experience the audio upgrade on their smartphone.

Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 27,190.00
Pioneer TS-WX140DA compact, under-seat active subwoofer
Rs. 27,190.00

Product Description

TS-WX140DA has been carefully engineered with an uncompromising quality and durability to deliver unparalleled performance in a compact form.

EV Optimized: TS-WX140DA is the perfect addition to add more bass in your electric vehicle . TS-WX140DA is built with high efficiency 170W Class D Amplifier, thereby ensuring that the maximum current drawn even at high bass is very less, so you need not to worry about lower mileage due to bass addition.

Pioneer Sound and Engineered Design

A new design with Evolved Bass Performance , TS-WX140DA features curves that express the image of the spread of sound, an improved texture and tactile sensation, and with a large, easy-to-use knob, you can fine-tune your listening experience with precision.

Built-in DSP Chip

CLASS-D amplifier with DSP Reach Max power 170W by adopting a high-power FET and a high-power coil

Deep : Wide and deep bass experience through rich low frequency reproduction

Natural : Natural mode for flat and natural bass sounds and helps to play the bass that naturally spreads in the car comfortably.

Dynamic : Powerful and vibrant bass sensation through frequency emphasis.

Class-D Amplifier with High Performance components

Class-D amplifiers delivers higher efficiency compared to other class of amplifiers, it can deliver high power output while efficiently driving the speakers with very low distortion as compared to other class of amplifiers.

High-Performance Magnetic Circuit that delivers powerful and deep bass , High Quality Field Effect Transistors which can handle more than 7 times the output power ensuring long life. High-performance Coil that seamlessly restores the original signal and ensures minimal distortion thereby ensuring high bass without any loss in quality.

High Performance magnetic circuit

Delivers powerful bass reproduction that maximizes performance even with a very compact design.

Large magnet of φ110x13mm.

Thick plate with a thickness of 10 mm.

Long voice coil with a large wire diameter.

EV Optimized

This compact subwoofer is the perfect solution to add more deep and powerful bass in your Electric Vehicle (EV), without the typical sacrifice in space! With a built-in high-efficiency Class-D amplifier, low power consumption, low weight design and compact size you don't have to worry about lower mileage due to your bass addition.

Specifications

Modal Name

 TS-WX140DA

Max. Power

  170 W

Nominal Power

50 W

Sensitivity

DEEP 95dB, NATURAL 98dB, DYNAMIC 100dB

Frequency response

DEEP 20～200Hz, DYNAMIC 40～160Hz, NATURAL 40～200Hz（－20ｄB）

Cone material

Aluminium diaphgram / Pulp Cone

Magnet material

Ferrite

Voice Coil

 Single

Voice Coil Impedance per wire

1 Ohm

Max. Current Consumtion

4.3 A

Include Remote Control

 Yes

Remote Control Adjustment Function

Gain, LPF Freq., Phase, EQ mode

Dimensions (W x H x D)

280mm x 70mm x 200mm+A12:C25A11:C25
