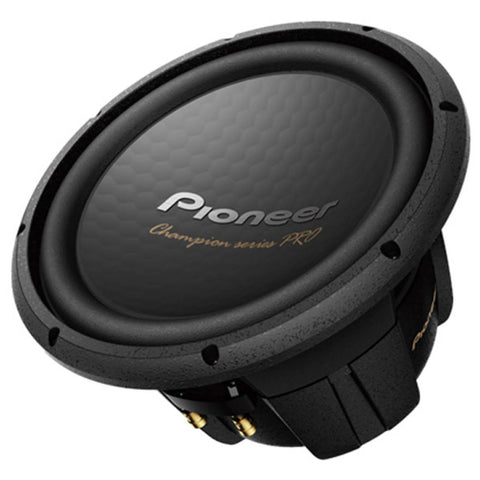

Pioneer TS-W3004D4 12-inch "Champion Series PRO" subwoofer

Rs. 20,690.00

Key Features

Rigid IMPP Cone: Features a high-rigidity, injection-molded polypropylene (IMPP) composite cone with a honeycomb design to prevent failure at high sound pressure levels.

Hybrid Surround: Employs a dual-layer fiber-reinforced elastic polymer surround that is lighter and more durable than traditional rubber.

Advanced Cooling: Includes a newly designed air ventilation duct in the motor assembly to quicken heat dispersion during prolonged use.

Oversized Motor: Equipped with double-stacked magnets and an extended voice coil to drive deeper and louder bass.

Reinforced Basket: Built with an optimized, firmly enclosed steel basket and four ribbed arms for increased stiffness and reduced resonance.

Power Output: Delivers a maximum music power of 2,400W and a continuous RMS of 800W.

Frequency Range: Covers a wide bass spectrum from 20 Hz to 1.6 kHz.

Sensitivity: Features a high sensitivity rating of 94 dB (1W/1m) for efficient output.

Impedance: Utilizes a Dual 4-ohm (DVC) configuration for flexible wiring options.

Xmax: Provides a maximum linear excursion of 19.4 mm for deep air movement.

Standard warranty provide by OEM
Rs. 20,690.00
Pioneer TS-W3004D4 12-inch "Champion Series PRO" subwoofer
Rs. 20,690.00

Product Description

Champion Series Pro Subwoofer with Deeper & Louder Bass. Elevate your music with deeper & thunderous bass that ignites every beat, enhancing your drive with unparalleled audio immersion.

High power handling and High endurance

Hexagonal shape with big center cap, Light & Rigid seamless cone with Large honeycomb design CAP Hybrid surround and dual spider system

Deeper & Louder Bass

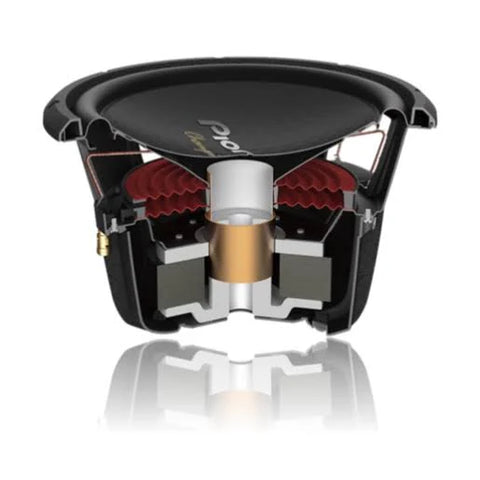

Experience unmatched power with our cutting-edge motor assembly, featuring double-stacked magnets, an extended voice coil, and the largest magnet ever for superior performance and efficient heat dispersion.

Heavier and More Durable Design

Optimized, strengthened steel basket, firmly enclosed bottom basket design and Magnet cover with Air ventilation system for cooling effect. Gold plated terminals

Specifications

Modal Name

TS-W3004D4

Cone size

 12"(30cm) Cone

Type

Enclosure use

Sound pressure level

94 dB

Frequency range

20 Hz - 1.6 kHz (-20dB)

Maximum power

2400W

Nominal power

800W

Impedance

4 Ω (Dual Voice Coil)

Cone material

High Rigid IMPP Cone

Surround Material

Dual layer fiber reinforced elastic polymer surround

Terminal

Gold Plated Push Terminal

Cutout hole

φ283mm

Mounting Depth

190mm

Dimension(Dia x Depth)

φ327mm x 207mm

Weight

8.8 Kg
