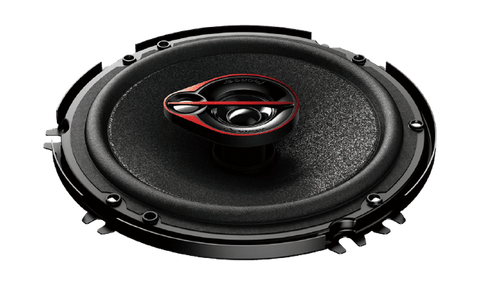

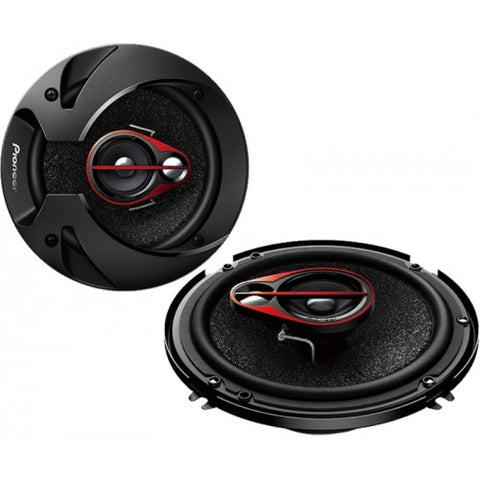

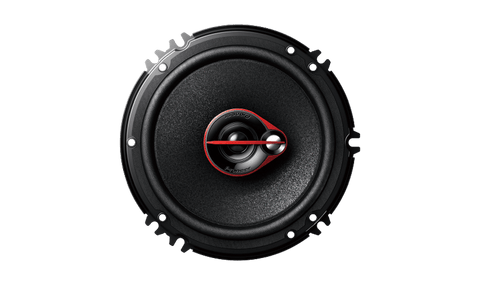

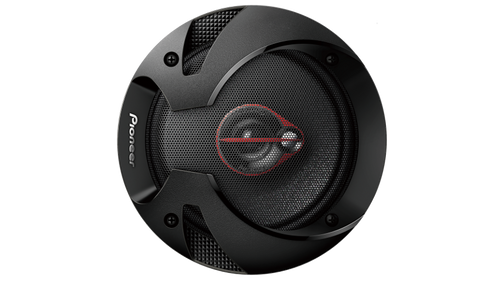

Pioneer TS-R1651D-2 is a 6.5-inch 3-way coaxial car speaker
Pioneer TS-R1651D-2 is a 6.5-inch 3-way coaxial car speaker
Pioneer TS-R1651D-2 is a 6.5-inch 3-way coaxial car speaker
Pioneer TS-R1651D-2 is a 6.5-inch 3-way coaxial car speaker

Pioneer TS-R1651D-2 is a 6.5-inch 3-way coaxial car speaker

Rs. 6,190.00

Key Features

3-Way Coaxial System: Combines a woofer, mid-range, and tweeter for a full-range sound experience.

300W Peak Power: Features a maximum wattage of 300W with a nominal (RMS) output of 40W.

Mica Reinforced Pulp Cone: Utilizes mica mixed with pulp to optimize rigidity for impactful and powerful bass.

Progressive Flex Suspension System (P.F.S.S.): Supports the voice coil by dampening large vibrations to enhance the linearity of sound reproduction.

Wide Frequency Range: Delivers sound across a range of 30 Hz to 18 kHz.

Flexible Installation: Redesigned shallow basket and four new screw holes allow for a perfect fit in various cars, including those with 3-spoke provision.

Aluminum Bobbin: Uses a high-quality aluminum voice coil bobbin to safeguard against heat and prolong speaker life.

Shallow Design: Produces high-energy sound from a 6-1/2" (160 mm) size that matches the default for many inbuilt car speakers.

Piezoelectric Components: Features a PET piezoelectric mid-range and silver-colored PET piezoelectric tweeter.

Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 6,190.00
Pioneer TS-R1651D-2 is a 6.5-inch 3-way coaxial car speaker
Rs. 6,190.00

Product Description

For those who wish for a high-quality sound solution without hurting your monthly budget, we present a double speaker pair package with specially designed speakers for each door at a special price. With MMM cone along with an aluminum bobbin, quality sound production is assured.

Mica reinforced pulp cone

The mica is mixed into the pulp cone material in precise proportions to optimise cone rigidity and to reproduce impactful bass.

P.F.S.S. spider

Progressive Flex Suspension System supports the voice coil effectively by dampening the large cone vibration and enhancing linearity of sound reproduction. Its soft part makes movement smooth and reproduces clear sound and at excessive input, its hard part controls excessive vibration and prevents movement error.

Impactful Bass

Its unique design with long stroke space, powerful motor and long stroke suspension helps it in providing powerful bass and strong sound.

Specifications

Modal Name

TS-R1651D-2

SYSTEM

Coax. 3-way

Sound pressure level

90dB ( ±1.5dB )

FREQUENCY RANGE　

30 Hz ～ 18 KHz (-20dB)

Max Wattage

300 W

Nominal Wattage

40 W

SIZE

6-1/2" (160 mm), CONE

CONE MATERIAL

Mica reinforced pulp cone

Color

 Black

Surround material

Rubber coated cloth surround

DIAPHRAGM MATERIAL

 PET

Dimensions (Dia x Depth) w/o Grille

158 x 61 (mm)

Dimensions (Dia x Depth) with Grille

171 x 73 (mm)

Mounting depth

42 mm

Cutout hole

128 mm

Weight

 0.60Kg
