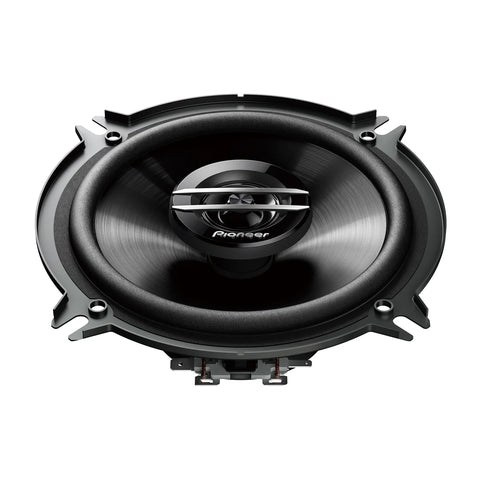

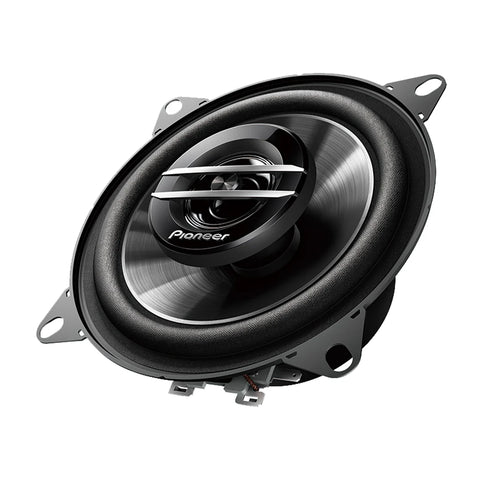

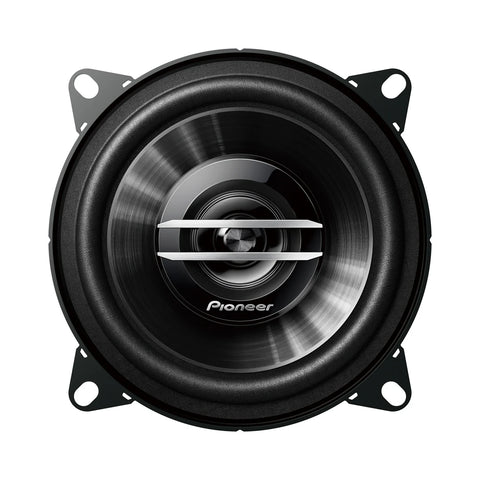

Pioneer TS-G1020S 4.0” - 2-way, 210 W Max Power, Mica-reinforced IMPP™ cone, 1.2" (30 mm) PET tweeter - Coaxial Speakers (pair)
Pioneer TS-G1020S 4.0” - 2-way, 210 W Max Power, Mica-reinforced IMPP™ cone, 1.2" (30 mm) PET tweeter - Coaxial Speakers (pair)
Pioneer TS-G1020S 4.0” - 2-way, 210 W Max Power, Mica-reinforced IMPP™ cone, 1.2" (30 mm) PET tweeter - Coaxial Speakers (pair)

Pioneer TS-G1020S 4.0” - 2-way, 210 W Max Power, Mica-reinforced IMPP™ cone, 1.2" (30 mm) PET tweeter - Coaxial Speakers (pair)

Rs. 2,190.00

Key Features

Size & Type: 4-inch (10 cm) 2-way coaxial design for compact, direct factory replacement.

Power Output: 210 watts maximum power (30 watts nominal/RMS) for enhanced audio output.

Audio Quality: IMPP composite cone with Mica for rigid, lightweight performance with reduced distortion.

Highs & Bass: Features a 30mm (1-3/16") PET balanced dome tweeter and a Conex damper for clear highs and deeper bass.

Performance: 87 dB sensitivity with a frequency response of 35 Hz to 27 kHz.

Design: Shallow mounting depth (1-3/4" / 42.8mm) ensures easy fitment in a wide variety of vehicles.

Suspension: Utilizes P.F.S.S. (Progressive Flex Suspension System) for enhanced linearity and clear sound.

Impedance: Standard 4-ohm impedance, suitable for most stock or aftermarket head units.

Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 2,190.00
Pioneer TS-G1020S 4.0” - 2-way, 210 W Max Power, Mica-reinforced IMPP™ cone, 1.2" (30 mm) PET tweeter - Coaxial Speakers (pair)
Rs. 2,190.00

Product Description

The TS-G1020S 4.0" two-way speaker with 210 W max power (30 W nominal) features Pioneer's extremely strong and lightweight Injected Molded Polypropylene (IMPP™) cone for improved sensitivity and reduced distortion. The Conex damper delivers higher power handling and deeper bass, while the 25 mm balanced dome tweeter reproduces highs with great performance and musicality. These speakers are designed with a shallow mounting depth for easy installation in a wide variety of vehicles.

Affordable & Reliable OEM Speaker Replacement

These speakers are excellent choices for replacing a bad set of factory speakers. Their two-way design features Pioneer's extremely strong and lightweight Injected Molded Polypropylene (IMPP™) with a MICA composite cone woofer for improved sensitivity and reduced distortion. You don't just get basic, run-of-the-mill features either. The Conex damper delivers higher power handling and deeper bass, while the balanced dome tweeter reproduces highs with great performance and musicality. These speakers are designed with a shallow mounting depth for easy installation.

Mica reinforced IMPP™ cone

An extremely rigid yet lightweight cone is essential to avoid cone failure and distortion under high power. Pioneer's IMPP™ composite cones meet this need perfectly. To further improve this rigidity-to-weight ratio, Pioneer uses an advanced process that integrates different materials, such as mica, which resonate at different frequencies, creating a perfectly balanced cone across the entire bandwidth.

PET hard dome tweeter

The stable electrical and mechanical properties over a wide frequency range, as well as the strength-to-weight ratio of PET (Polyethylene Terephthalate), make it perfect for the high-frequency vibrations of the dome. We have also carefully designed the tweeter with a front diffuser to help maintain a perfect audio balance during the transition from on-axis to off-axis listening. This allows for a more balanced sound source between the different audio points in the car.

Pioneer exclusive P.F.S.S. spider

The Progressive Flex Suspension System (P.F.S.S.) effectively supports the voice coil by damping cone vibrations and improving the linearity of sound reproduction. Its soft part ensures smooth movement and clear sound even under high power, while its firmer part controls excessive vibrations and prevents unwanted movements that cause distortion. The goal is simple: to provide all the details of your music while maintaining control during the large excursions generated by the bass.

Specifications

Modal

  TS-G1020S

SYSTEM

Coaxial 2way

SOUND PRESSURE LEVEL(GK-090）

87 dB（±1.5ｄB）

FREQUENCY RANGE　 (GK-090）

35Hz 〜 27KHz　（－20dB）

Max Wattage

210W

Nominal Wattage

30(W)

SIZE

4" (100mm), CONE

CONE MATERIAL

IMPP COMPOSITE CONE

Color

BLACK (HAIR LINE)

Surround material

RUBBER COATED CLOTH SURROUND

Type

PIEZOELECTRIC TW

DIAPHRAGM MATERIAL

PET

color

 BLACK

Dimensions (Dia x Depth)

Φ 102 X 45.2(mm)

Mounting depth

42.8 mm

Cutout hole

106 mm

Weight

0.31kg (0lbs 11oz)
