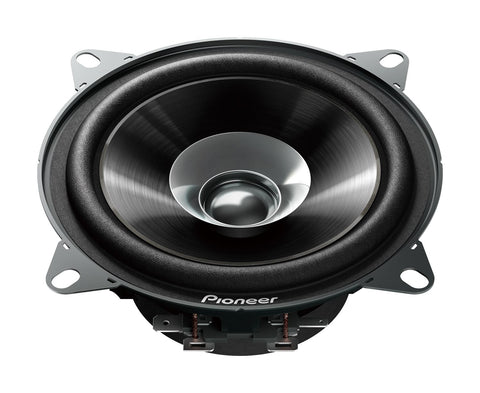

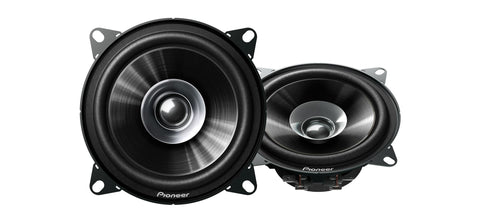

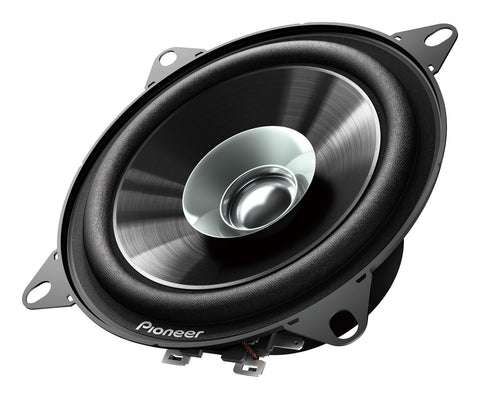

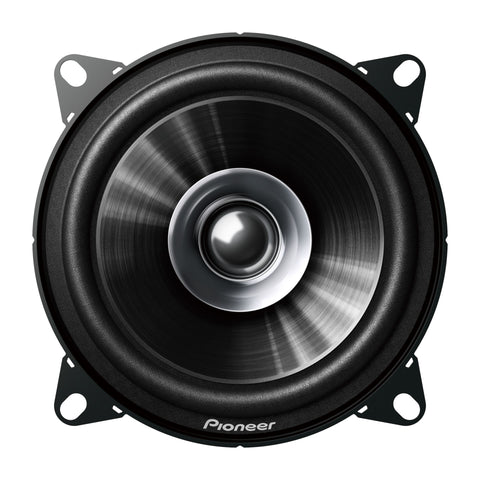

Pioneer TS-G1010S Carrozzeria 10cm Dual Cone Speaker
Pioneer TS-G1010S Carrozzeria 10cm Dual Cone Speaker
Pioneer TS-G1010S Carrozzeria 10cm Dual Cone Speaker
Pioneer TS-G1010S Carrozzeria 10cm Dual Cone Speaker

Pioneer TS-G1010S Carrozzeria 10cm Dual Cone Speaker

Rs. 1,650.00

Key Features

190W Max Power: Delivers 190 watts maximum power (30W RMS) for enhanced, loud sound.

Dual Cone Design: Features a 2-way coaxial design for clear highs and solid midrange.

IMPP Composite Cone: High-rigidity construction reduces distortion and provides durable performance.

4-Inch Compact Size: Specifically designed for easy, flush-mount installation in a wide range of vehicles.

Wide Frequency Response: Produces a range from 44 Hz to 25,000 Hz for full-spectrum sound.

Improved Sensitivity: 89 dB sensitivity allows for efficient, high-volume output.

PFSS Damper: Progressive Flex Suspension System ensures smooth movement and powerful bass.

Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 1,650.00
Pioneer TS-G1010S Carrozzeria 10cm Dual Cone Speaker
Rs. 1,650.00

Product Description

Our consumers love the dual cone design, especially for the clarity in the high frequencies thanks to the rigid cone material used to constract the smaller cone. With 190W (max), these speakers are apt to upgrade from your existing 10 cm speakers

P.F.S.S. spider

Progressive Flex Suspension System supports the voice coil effectively by dampening the large cone vibration and enhancing linearity of sound reproduction. Its soft part makes movement smooth and reproduces clear sound and at excessive input, its hard part controls excessive vibration and prevents movement error.

Impactful Bass

Its unique design with long stroke space, powerful motor and long stroke suspension helps it in providing powerful bass and strong sound.

High rigidity PP Cone

High rigidity PP Cone realize well sound balance and reproduce impactful bass & clear vocal.

Specifications

General Information




SYSTEM

Dual cone

SOUND PRESSURE LEVEL(GK-090)

89 dB

FREQUENCY RANGE　 (GK-090）

44Hz ～ 25KHz（－20dB）

Max Wattage

 190W

Nominal Wattage

30W

SIZE

4" (100mm), CONE

Woofer

CONE MATERIAL

IMPP COMPOSITE CONE

Color

BLACK (HAIR LINE)

Surround material

RUBBER COATED CLOTH SURROUND

Tweeter

Type

-

DIAPHRAGM MATERIAL

-

Installation information


Dimensions (Dia x Depth)

Φ 102 X 45.2(mm)

Weight

0.3kg (0lbs 11oz)

Mounting depth

42.8 mm

Cutout hole

106 mm
