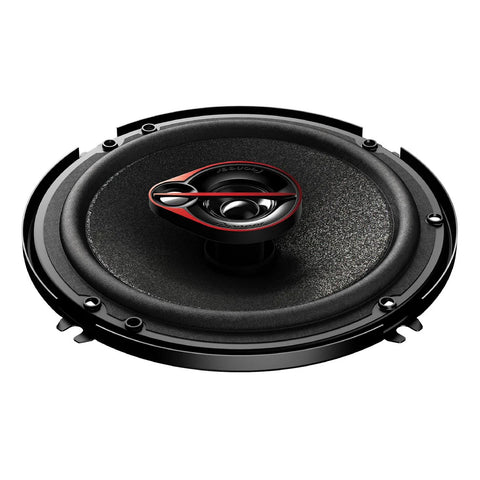

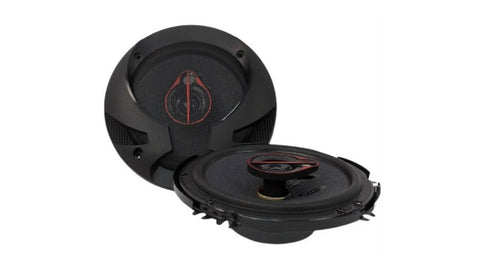

Pioneer R Series TS-R1651S-2 is a 16 cm (6.5") 3-way coaxial Car speaker
Pioneer R Series TS-R1651S-2 is a 16 cm (6.5") 3-way coaxial Car speaker
Pioneer R Series TS-R1651S-2 is a 16 cm (6.5") 3-way coaxial Car speaker

Pioneer R Series TS-R1651S-2 is a 16 cm (6.5") 3-way coaxial Car speaker

Rs. 3,290.00

Key Features

Multilayer Mica Matrix (MMM) Cone: Uses a mica-reinforced pulp cone to ensure rigidity, which optimizes the reproduction of impactful and accurate bass.

Progressive Flex Suspension System (P.F.S.S.): Supports the voice coil by dampening large vibrations to enhance the linearity of sound reproduction.

3-Way Coaxial System: Combines a woofer, midrange, and piezoelectric tweeter to deliver a wide and balanced frequency range.

High Power Handling: Offers a maximum power output of 300W with a nominal (RMS) input of 40W.

Aluminum Bobbin: Integrated for high-performance heat resistance and efficiency during loud playback.

Frequency Response: 30 Hz to 18 kHz.

Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 3,290.00
Pioneer R Series TS-R1651S-2 is a 16 cm (6.5") 3-way coaxial Car speaker
Rs. 3,290.00

Product Description

16 cm is the default size of most inbuilt speakers in a car. We have used a shallow basket with flexible installation options to fit these speakers in most cars. Also features a young aggressive design, the trademark of R-series, a MMM cone and aluminum bobbin for high performance.

Mica reinforced pulp cone

The mica is mixed into the pulp cone material in precise proportions to optimise cone rigidity and to reproduce impactful bass.

Impactful Bass

Its unique design with long stroke space, powerful motor and long stroke suspension helps it in providing powerful bass and strong sound.

P.F.S.S. spider

Progressive Flex Suspension System supports the voice coil effectively by dampening the large cone vibration and enhancing linearity of sound reproduction. Its soft part makes movement smooth and reproduces clear sound and at excessive input, its hard part controls excessive vibration and prevents movement error.

3-way

3-way speakers feature 3 different drivers for effectively recreating separate sound frequency

Shallow basket

Light weight design with lesser mounting depth for easy installation in your car

Aluminum bobbin

High quality aluminium voice coil bobbin is used to safeguard from heat and prolong speaker life

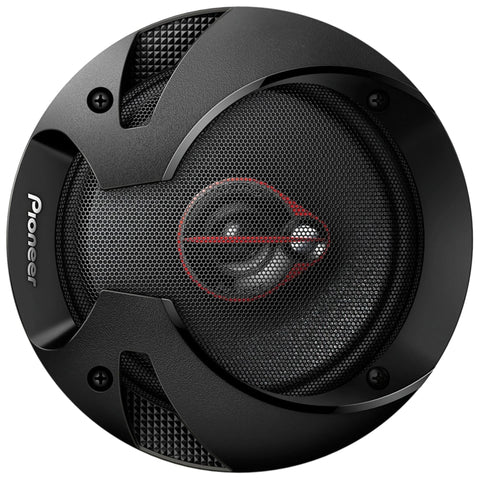

Full covered grille

This prevents a physical damage and deliver a reliability and high endurance

Specifications

Modal Name

 TS-R1651S-2

SYSTEM

 Coax. 3-way

Sound pressure level

90dB ( ±1.5dB )

FREQUENCY RANGE　

30 Hz ～ 18 KHz (-20dB)

Max Wattage

300 W

Nominal Wattage

40 W

SIZE

6-1/2" (160 mm), CONE

CONE MATERIAL

Mica reinforced pulp cone

Color

 Black

Surround material

Rubber coated cloth surround

Type

Piezoelectric

Dimensions (Dia x Depth) w/o Grille

158 x 61 (mm)

Dimensions (Dia x Depth) with Grille

171 x 73 (mm)

Mounting depth

42 mm

Cutout hole

128 mm

Weight

0.60Kg
