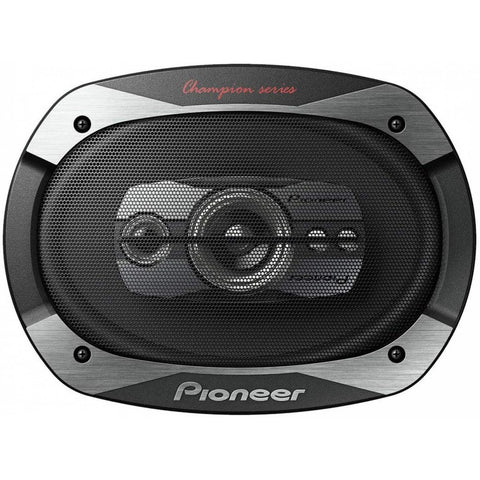

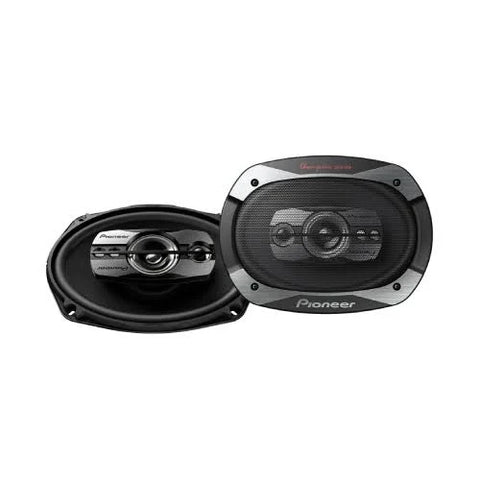

Pioneer Champion Series TS-7150F 5-way coaxial speaker
Pioneer Champion Series TS-7150F 5-way coaxial speaker
Pioneer Champion Series TS-7150F 5-way coaxial speaker

Pioneer Champion Series TS-7150F 5-way coaxial speaker

Rs. 11,890.00

Key Features

5-Way Coaxial Design: Utilizes multiple drivers to provide detailed audio reproduction across a full range of frequencies.

Oversized 7"x10" Cone: Features a surface area roughly 30% larger than standard 6"x9" speakers, allowing for more air movement and deeper bass.

Dual Spider System: Effectively dampens cone vibration to maintain linearity and reduce distortion at high volumes.

Kenaf Reinforced Cone: Built with a rigid pulp material mixed with kenaf to ensure forceful bass and high durability.

Heat-Resistant Mid-Range: Uses a 66mm PEI (Polyetherimide) cone to deliver clear, powerful vocals even under extreme conditions.

Dust Protection Design: Engineered to prevent dust from entering the motor assembly, ensuring long-term reliability.

Flexible Installation: Includes a 6"x9" bracket, making it easier to fit into vehicles with standard 6"x9" speaker openings.

Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 11,890.00
Pioneer Champion Series TS-7150F 5-way coaxial speaker
Rs. 11,890.00

Product Description

The TS-7150F introduces the new sized 7" x 10", 5-Way Champion Series Speaker, includes a 6"x9" bracket for easy installation. Pioneer Champion Series Speakers reproduce bass with clarity, stability and presence that other speakers typically cannot achieve. Speaker cones used for Champion Series speakers are tougher at handling more higher power input at higher volume without compromising higher quality.

Kenaf Reinforced Rigid Pulp Cone

The combination of kenaf mixed pulp material, press formation process, and CAE technology for maintaining rigid shape is essential for realizing forceful bass and minimal sound distortion.

Dual spider

Dual Spiders supporting the voice coil effectively dampen large cone vibration and enhance linearity of sound reproduction.

Large-sized Mid-Range using Heat-Tesistant PEI Cone

High-frequency sensitivity is increased with the use of a newly designed 66mm mid-range speaker.

Perfect Dust Prevention

Pioneer's Dust Protection design reliably prevents dust from interfering with uncompromising speaker performance and durability.

Installation flexibility

The TS-7150F introduces the new sized 7" x 10", 5-Way Champion Series Speaker, includes a 6"x9" bracket for easy installation.

Specifications

Modal Name

 TS-7150F

Type

  Coaxial 5-way

Maximum Music Power

500 W

Nominal power

80 W

Frequency Response

27Hz to 25KHz

Impedence

 4Ω

Sensitivity

89.8dB

Cone size

7"x10"(180mmx252mm)

Cone material

Kenaf reinforced rigid pulp

Color

 Black

Surround material

Urethane

Dimension(with grille)

(W)272X(H)119x(D)203[mm]

Cut out hole

166x238[mm]

Mounting depth

85[mm]

Weight

1.89[kg]
