LD Systems (MAUI 28 G3) Compact cardioid column PA system

Rs. 385,990.00

Key Features


2060 W Peak Power delivering powerful performance

127 dB Maximum SPL for high sound pressure output

12” Subwoofer for deep and punchy bass

12 × 3.5” Full-Range Drivers for balanced and detailed mids

2 × 1” High-Frequency Drivers for crisp and silky highs

Cardioid Column Design for controlled low-mid and midrange dispersion

BEM-Optimized HF Waveguide for smooth and uniform sound coverage

Optimized Bass-Reflex Cabinet for improved bass response and reduced airflow noise

Expandable System – connect an additional subwoofer for stronger low-end or cardioid setup

Dynx® DSP (Gen.2) ensures distortion-free sound even at maximum volume

HD Bluetooth® 5.0 Streaming for high-quality wireless audio

Automatic Setup Detection for quick and easy operation

Tool-Free Assembly – fast setup without stands or cables

Durable Birch Plywood Subwoofer Cabinet with rugged polyurea coating

Lightweight Aluminium Column with powder-coated finish

Standard warranty provide by OEM
Rs. 385,990.00
LD Systems (MAUI 28 G3) Compact cardioid column PA system
Rs. 385,990.00

Product Description

Compact, powerful and easy to use - a column PA remains the perfect companion for DJs and smaller bands. The LD Systems MAUI series represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you're all set!

The MAUI 28 G3 delivers a huge, powerful and precise sound featuring 1,030 W RMS power (2,060 W peak), suitable for all applications: as a main PA for concerts, a sound system for mobile DJs or a public address system at weddings, corporate events and many more.

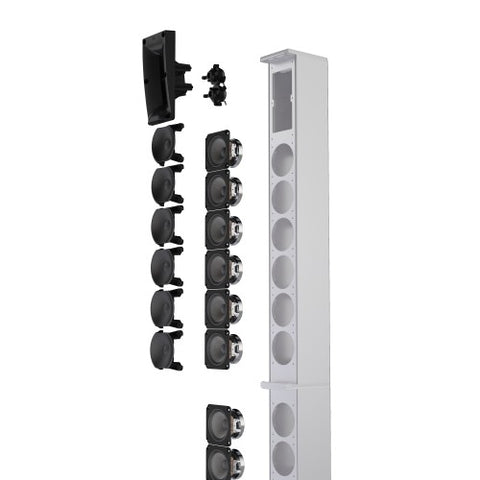

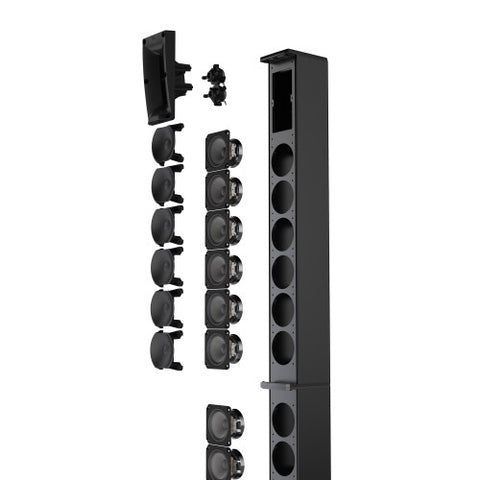

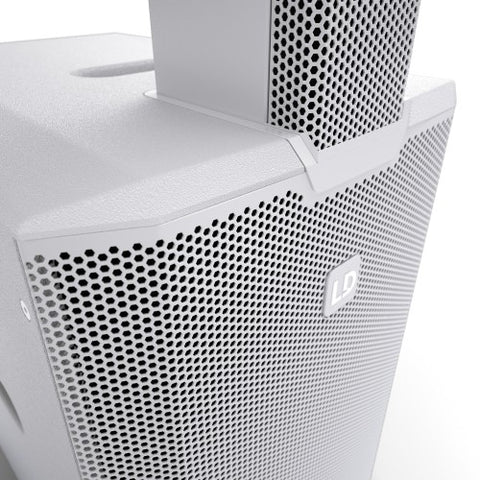

With its sleek and elegant design, the MAUI 28 G3 looks very appealing. The two aluminium column elements sit at the front edge of the subwoofer, further enhancing the seamless visual impression. The columns are equipped with 12 x 3.5'' midrange drivers and 2 x 1'' tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. In addition, the BEM-optimised waveguide ahead of the tweeters carries the high frequencies even to the very rear audience areas.

The LD Systems engineers also took great care of the crossover filter between midrange and tweeter speakers. The aim was to reduce harmonic distortion and interference to make the sound even more transparent, vibrant and powerful. The result speaks for itself: a highly precise reproduction of vocals and instruments across the entire 120° x 30° dispersion field. The columns of the MAUI 28 G3 are designed as cardioid speakers. This allows for controlled low-mids at the front and up to 18 dB of attenuation at the rear, resulting in a clean stage sound.

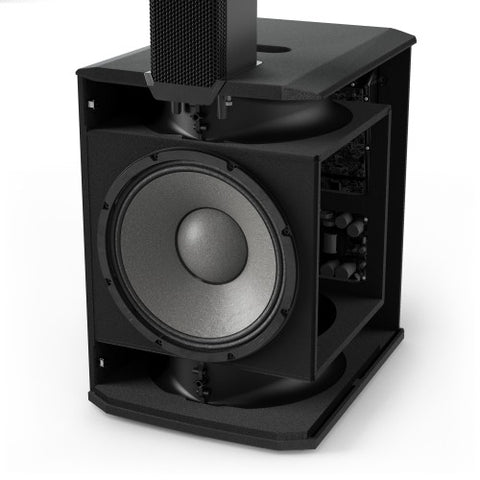

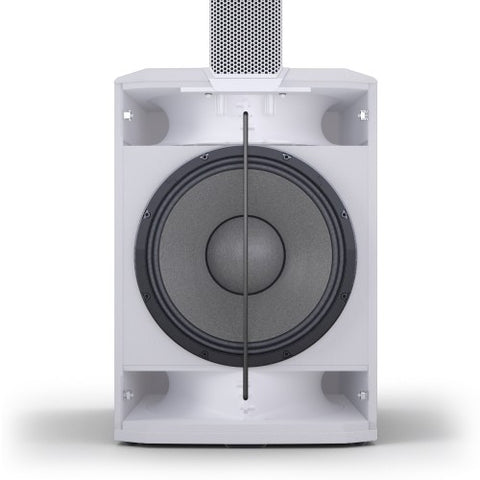

Equipped with a single 12'' woofer and four bass reflex ports, the MAUI 28 G3 subwoofer delivers a clear, tight and punchy low end down to 37 Hz. By using a second subwoofer, the bass response can also be increased of up to 6 dB and it can also be driven in cardioid configuration at the push of a button (cardioid preset). In addition, the ultra-durable polyurea coating of the subwoofer easily withstands even the toughest demands on the road.

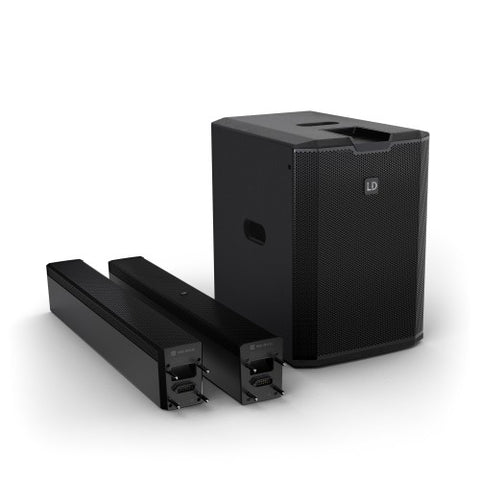

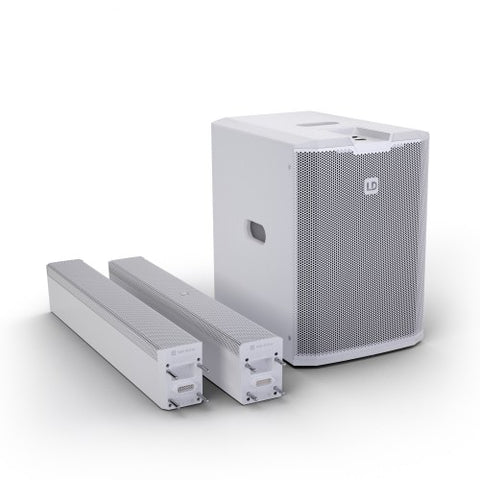

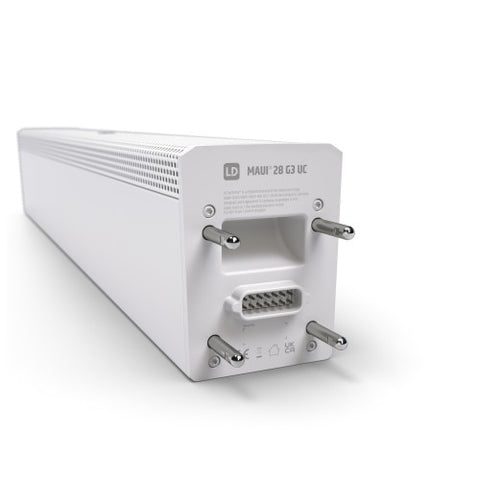

The MAUI 28 G3 is a real sound machine, yet also convinces with its sophisticated features in the day-to-day life of DJs, musicians and technicians. Thanks to Bluetooth 5.0, the column PA becomes even more versatile. Transport is as easy as usual, while the enhanced, hidden multi-pin connections between the elements provide increased stability during assembly. There's nothing that can knock the MAUI off its feet so easily...

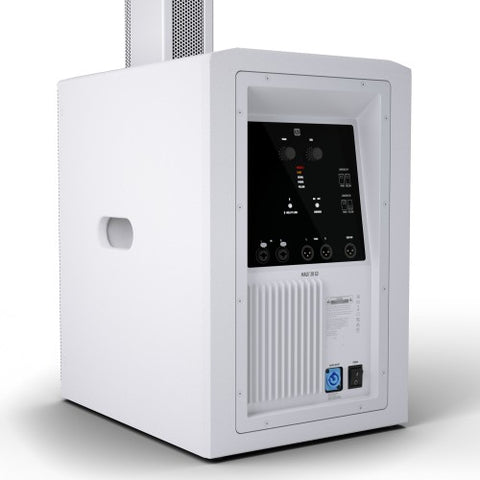

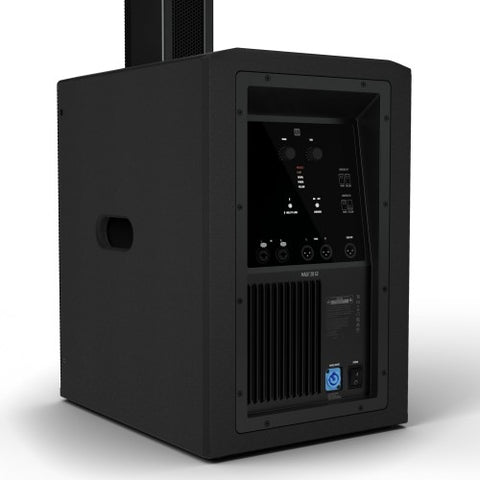

INPUTS AND CONTROLS

Less is more – The MAUI G3 line-in versions were designed as the ultimate headache-free PA systems. Our engineering team put great care in creating an intuitive user-panel with just the controls and inputs you really need.

The user panel features a stereo line input, a THRU line output to feed an additional sound system and a dedicated sub output allowing you to connect an additional “follower” subwoofer. You’ll also find a few controls like MAIN volume, SUB volume as well as the cardioid preset switch. And thanks to the built-in Bluetooth 5.0 input with codec you can stream high resolution audio directly to your PA!

Specifications

Type Active
Peak Output Power 2060 W
RMS Output Power 1030 W
Amplifier Class Class D
Max. SPL Peak 127 dB
Beam Angle Horizontal: 120° / Vertical: 30°
Number of Inputs 2
Input Connector Types XLR Combo Socket
Number of Outputs 3
Output Connector Types XLR 3-Pole Male
Protection Features Multiband Limiter, Short Circuit, Overheating, Direct Current
Colour Black
Bluetooth® Version Bluetooth® 5.0
Bluetooth® Features Audio Streaming (A2DP), Control
Supported Audio Codecs SBC, AAC
Speaker Outputs 1 (XLR 3-Pole Male)
Line Outputs 2 (XLR 3-Pole Male)
AD/DA Converter 24 Bit / 48 kHz
Bass Driver 12" Ferrite Magnet, 3" Voice Coil
Midrange Drivers 3.5" × 12, 0.75" Voice Coil, Ferrite Magnet
Tweeters 1" × 2, Neodymium Magnet, 1" Voice Coil
Operating Voltage 100–120 V AC / 220–240 V AC, 50–60 Hz
Power Supply Type Switched-Mode Power Supply (SMPS)
Rated Power 400 W
Mains Connector Indoor Power In Male & powerCON®
Cabinet Design Bass Reflex
Cabinet Material Multiplex (15 mm)
Front Grille Material Aluminium
Number of Handles 4
Cooling System Convection Cooling
Satellite / Column Design Cardioid
Satellite Material Aluminium
Satellite Dimensions (W×H×D) 103 × 1540 × 135 mm
Satellite Weight 12.6 kg
Subwoofer Design Bass Reflex
Subwoofer Material Thickness 15 mm
Subwoofer Surface Coating Polyurea
Subwoofer Front Grille Aluminium
Subwoofer Dimensions (W×H×D) 370 × 527 × 472 mm
Subwoofer Weight 22.8 kg
Ambient Temperature 0 – 40 °C
Maximum Air Humidity 80 % (Non-condensing)
Total System Dimensions (W×H×D) 370 × 2052 × 472 mm
Total System Weight 35.4 kg
