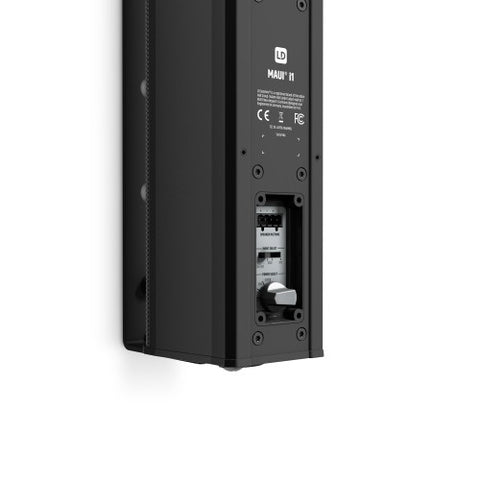

LD Systems (MAUI® i1) Passive Indoor/Outdoor Installation Column Loudspeaker

Rs. 75,600.00

Key Features

  • Surface-mounted passive column Loudspeaker with nine 3" mid-range woofers and two 1" neodymium tweeters
  • 120 W RMS at 8 ohms
  • 70 V / 100 V power taps: 60 W, 30 W, 15 W, 7.5 W with low saturation transformer
  • Sealed connection panel cover for outdoor protection
  • Extensive passive audio crossover for balanced frequency response and Self-resetting overload protection for tweeters
  • BEM-optimized high frequency waveguide for wide horizontal and controlled vertical dispersion
  • Input selector switch: 8 ohms (transformer bypass) / 100 V / 70 V
  • IP65 protection class, aluminum speaker grille and weather treated cones
  • 4-Pole Terminal Block connector for parallel speaker connection
  • U-Bracket included; bracket for angled wall installation optionally available
Standard warranty provide by OEM
Rs. 75,600.00
LD Systems (MAUI® i1) Passive Indoor/Outdoor Installation Column Loudspeaker
Rs. 75,600.00

Product Description

For acoustically challenging interiors where music and speech must be clearly understood, even in the rearmost rows, there is one solution - MAUI® i1.

This feature is achieved with nine 3" mid-range drivers, two 1" neodymium high-frequency drivers and a specially developed BEM-optimized Waveguide. This combination avoids unnecessary reflections on the floor and on ceilings by keeping the vertical dispersion as narrow as possible and the horizontal one as wide as possible.

Installers can easily integrate the MAUI® i1 in any constant-voltage audio system. This is made possible with an 8 Ohm / 70 V / 100 V selector switch. In addition, you can tap the power down to 60 W, 30 W, 15 W and 7.5 W depending on how many speakers you need to run in parallel and for a more efficient performance. At 8 Ohms, you can benefit from the best frequency response and highest 120 W RMS power rating.

For outdoor use, MAUI® i1 features weather treated cones, an aluminum loudspeaker grille and a weatherproof cover for the connection panel. That way, no water can enter the panel and your Loudspeaker stays rust free.

Surface installation is easy with the included U-bracket and with its black or white color selection, the loudspeaker blends unobtrusively and discreetly into almost any location.

The multiple award-winning MAUI® series has been expanded with the completely revised i1 and adapted to the special requirements of indoor and outdoor installations. All of this definitely makes MAUI® i1 the right choice for your demanding fixed installations.

Specifications

Type Passive
Power Handling (Peak) 480 W
Power Handling (RMS) 120 W
SPL (1 W / 1 m) 94 dB
Max. SPL Peak 116 dB
Frequency Response 130 – 19,000 Hz
Transformer Taps (100 V) 60 W, 30 W, 15 W, 7.5 W
Transformer Taps (70 V) 60 W, 30 W, 15 W, 7.5 W
Impedance 8 Ω
Crossover Frequency 2500 Hz
Beam Angle Horizontal: 120° / Vertical: 30°
Number of Inputs 1
Input Connector Type Terminal Block 4 Pin (Euroblock) / 5.08 mm Pitch
Colour Black
Bass Driver 3" × 9 (Ferrite Magnet)
Tweeter 1" × 2 (Neodymium Magnet)
Cabinet Design Closed
Cabinet Material Aluminium
Front Grille Material Aluminium
Protection Class IP65
Width 85 mm
Height 985 mm
Depth 105 mm
Weight 8.6 kg
