LD Systems CURV 500 SLA T Curv 500® 70 / 100 V SmartLink® Adapter
LD Systems CURV 500 SLA T Curv 500® 70 / 100 V SmartLink® Adapter
LD Systems CURV 500 SLA T Curv 500® 70 / 100 V SmartLink® Adapter
LD Systems CURV 500 SLA T Curv 500® 70 / 100 V SmartLink® Adapter

LD Systems CURV 500 SLA T Curv 500® 70 / 100 V SmartLink® Adapter

Rs. 13,900.00

Key Features

  • 70 / 100 V SmartLink® adapter for up to 4 LD CURV 500® satellites.
  • 2-pin input for screw connector
  • Special accessories for mounting on walls and ceilings
  • Integrated transformer with 10, 20, 40 and 80 W output taps @ 4 ohms
  • Switchable for 70 or 100 V operation
Choose variants
Select Color
Black
Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 13,900.00
LD Systems CURV 500 SLA T Curv 500® 70 / 100 V SmartLink® Adapter
Rs. 13,900.00

Product Description

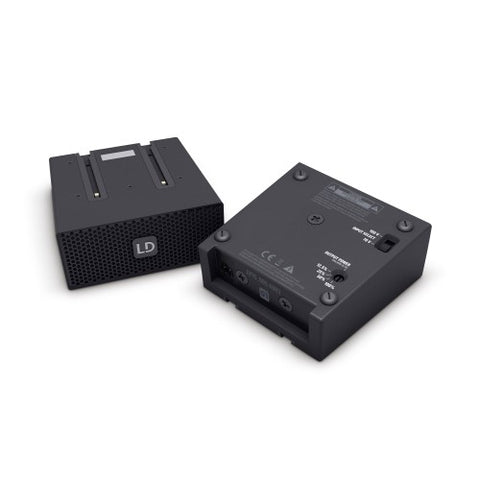

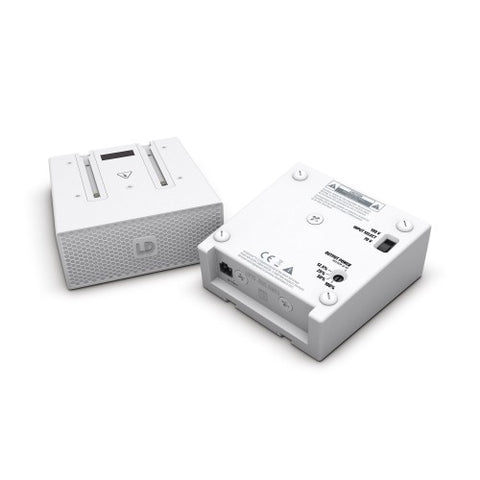

This version of the SmartLink® adapter allows up to 4 Curv 500® satellites to be operated as an ELA system with 70 or 100 volts per adapter. It has an input for a 2-pin screw connector. The integrated transformer offers a selection of four 10 to 80 W output taps. The adapter is available in black (LDCURV500SLAT) or white (LDCURV500SLAWT); wall and ceiling holders from the Curv 500® accessory range make for straightforward installation.

Specifications

Product Type PA Complete Systems Accessories
Type SmartLink® Adapter
Material Die-cast Aluminium
Surface Finish Powder Coated
Connectors Screw / Plug-in Terminal (2 Pole)
Colour Black
Width 122 mm
Height 57 mm
Depth 122 mm
Weight 1.15 kg
Features 2 × M6 Thread for Optional Wall/Truss Mount, 4 × Rubber Feet for Desktop Use, SmartLink® System
