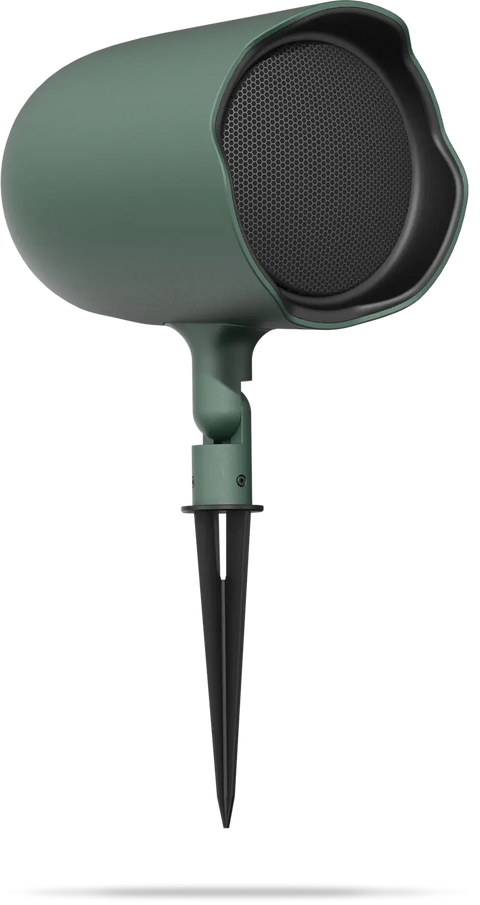

JBL GSF6 Coax 6.5" Full-Range Landscape Loudspeaker
Key Features
Product Description
Coaxial 6.5" Full-Range Landscape Loudspeaker
The mid-size, weather-resistant JBL GSF6 landscape loudspeaker provides superior fidelity and wide coverage in a range of outdoor commercial applications, with a custom two-way coaxial 6.5-inch driver system that delivers full-range, crystal-clear sound. (Extend system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.) This versatile speaker features a 30-watt multi-tap transformer for use on 70V/100V distributed systems and is switchable for 8-ohm direct operation.

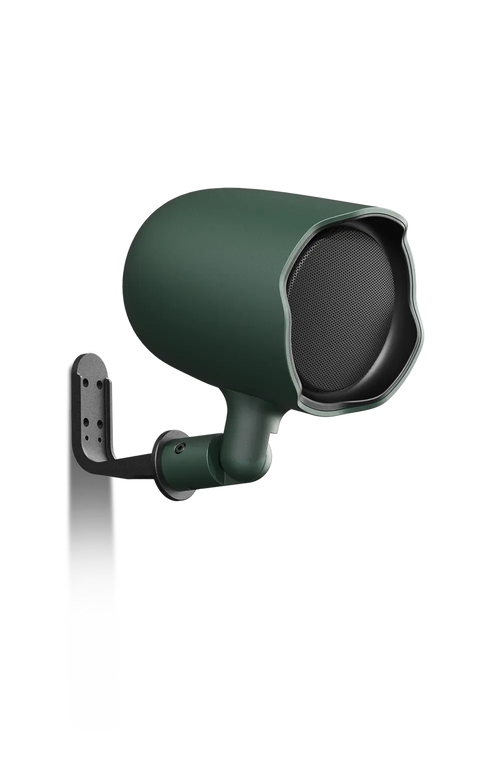

Versatile mounting options include a ground stake for in-ground installation and an L-bracket for secure mounting on either horizontal or vertical surfaces (both are included). A low-profile, unobtrusive speaker, the GSF6 blends right into its surroundings, and is aimable for precise coverage via an adjustable hinge. Available in hunter green and tan finishes.
The elegant, discreet GSF6—winner of international design awards for industrial design excellence—is the perfect sound solution for diverse outdoor applications including shopping malls, theme parks, sports venues, hospitality venues, and any application calling for a stylish, robust, great-sounding landscape speaker system.
Specification
| Brand | JBL Professional |
| Model | GSF6 |
| Product Type | Ground-Stake Landscape Loudspeaker |
| Speaker Configuration | 2-Way Coaxial |
| LF Driver | 6.5-inch (165 mm) Woofer |
| HF Driver | 1-inch (25 mm) Titanium Dome Tweeter |
| Frequency Range (-10 dB) | 65 Hz – 20 kHz |
| Frequency Response (±3 dB) | 90 Hz – 18 kHz |
| Power Rating | 100 W Continuous Program (2 hours) |
| Power Handling | 50 W Continuous Pink Noise (2 hours); 200 W Peak |
| Long-Term Power Handling | 30 W Continuous Pink Noise (100 hours); 120 W Peak |
| Sensitivity | 87 dB |
| Maximum SPL | 110 dB Peak; 104 dB Continuous |
| Nominal Impedance | 8 Ω |
| Transformer Taps (70V) | 30 W, 15 W, 7.5 W |
| Transformer Taps (100V) | 30 W, 15 W |
| Coverage Angle | 70° Conical |
| Enclosure Material | Polycarbonate + ABS |
| Grille Material | Aluminium |
| Environmental Rating | IP66 |
| Cabinet Dimensions (Diameter × Depth) | 218 × 293 mm |
| Height with Ground Stake | 544 mm |
| Height with L-Bracket | 444 mm |
| Net Weight | 3.5 kg |
| Available Colours | Pine Green / Beige Grey |
| Mounting Options | Ground Stake and L-Bracket |
