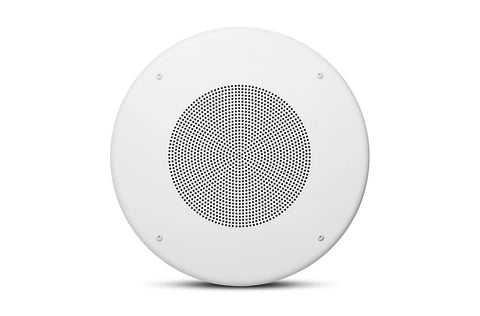

JBL CSS8018 200 mm (8 in) Commercial Series Ceiling Speakers
Rs. 5,900.00
Key Features
Standard warranty provide by OEM
JBL CSS8018 200 mm (8 in) Commercial Series Ceiling Speakers
Rs. 5,900.00
Product Description
200 mm (8 in) Commercial Series Ceiling Speakers
JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.
Specification
| Brand | JBL Professional |
| Model | CSS8018 |
| Speaker Type | High-Output Commercial Series Ceiling Speaker |
| Driver Type | Dual-Cone |
| Driver Size | 200 mm (8") |
| Sensitivity | 97 dB (1 W / 2.83 V, 1 m, 2–6 kHz) |
| Frequency Range (-10 dB) | 50 Hz – 17 kHz |
| Frequency Range with CSS-BB8 Backcan | 90 Hz – 17 kHz |
| Coverage | 110° Conical |
| Continuous Power Handling | 20 W |
| 100V Transformer Taps | 10 W / 5 W / 2.5 W |
| 70V Transformer Taps | 10 W / 5 W / 2.5 W / 1.3 W |
| 25V Transformer Taps | 10 W / 5 W / 2.5 W / 1.3 W |
| Transformer Insertion Loss | 1.5 dB Maximum |
| Transformer Connection | Bare Wire |

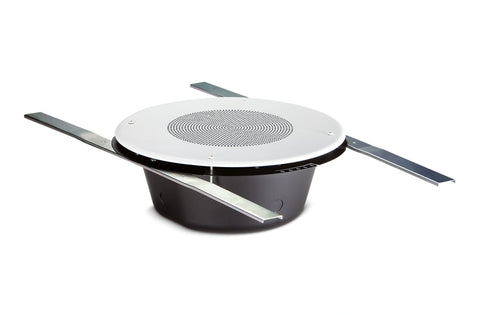

| Matching Backcan | CSS-BB8 |
| Compatible Backcans | MTC-81BB8, MTC-200BB6, MTC-300BB8 |
| Open-Back Cutout | 216 mm (8.5") |
| Cutout with CSS-BB8 | 295 mm (11.7") |
| Depth Behind Grille | 73 mm (2.9") |
| Grille Diameter | 327 mm (12.9") |
| Bolt Mounting Circle | 286 mm (11.25") |
| Net Weight | 1.58 kg |
| Shipping Weight | 2.25 kg |
| Color | White |
