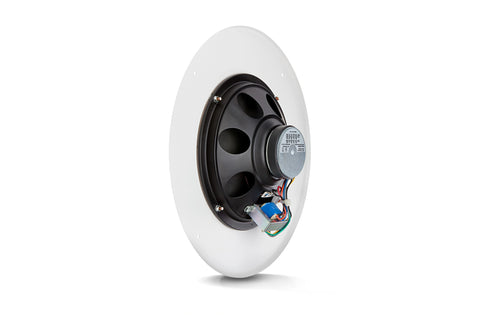

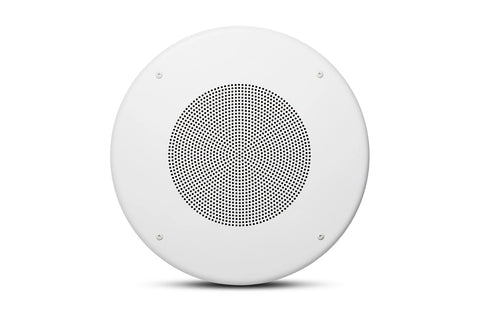

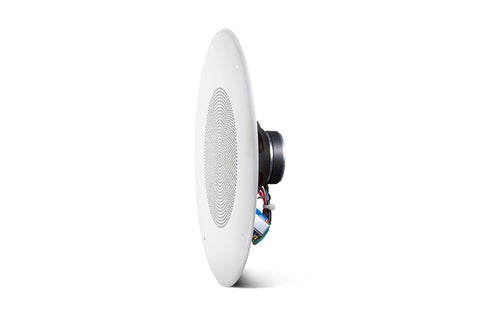

JBL CSS8008 200 mm (8 in) Commercial Series Ceiling Speakers
Rs. 4,968.00
Key Features
Standard warranty provide by OEM
JBL CSS8008 200 mm (8 in) Commercial Series Ceiling Speakers
Rs. 4,968.00
Product Description
200 mm (8 in) Commercial Series Ceiling Speakers
JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.
Specification
| Brand | JBL Professional |
| Model | CSS8008 |
| Speaker Type | Commercial Series Ceiling Speaker |
| Driver | 200 mm (8") Full-Range Dual-Cone |
| Sensitivity | 96 dB (2 kHz–6 kHz) |
| Frequency Range (-10 dB) | 55 Hz – 16 kHz |
| Frequency Range with CSS-BB8 Backcan | 100 Hz – 16 kHz |
| Coverage | 120° Conical |
| Continuous Power Handling | 15 W |
| Maximum SPL | 103 dB @ 1 m |
| 100V Transformer Taps | 5 W / 2.5 W / 1.3 W |
| 70V Transformer Taps | 5 W / 2.5 W / 1.3 W / 0.7 W |
| 25V Transformer Taps | 5 W / 2.5 W / 1.3 W / 0.7 W |
| Transformer Insertion Loss | 1.5 dB max. |
| Transformer Connection | Bare wire |
| Matching Backcan | CSS-BB8 |
| Open-Back Cutout | 216 mm (8.5") |
| Cutout with Backcan | 295 mm (11.7") |
| Grille Diameter | 327 mm (12.9") |
| Depth Behind Grille | 71 mm (2.8") |
| Bolt Mounting Circle | 286 mm (11.25") |
| Net Weight | 1.27 kg |
| Color | White |
| Plenum Use | Yes, with accessory backcan |
| Compatible Backcans | CSS-BB8, MTC-81BB8, MTC-200BB6, MTC-300BB8 |
