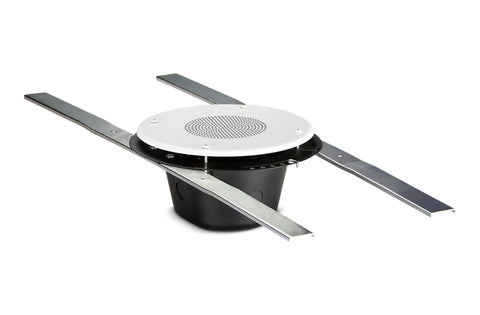

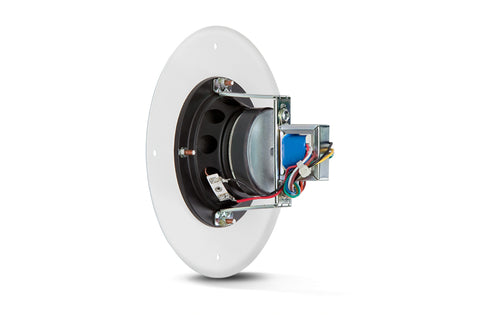

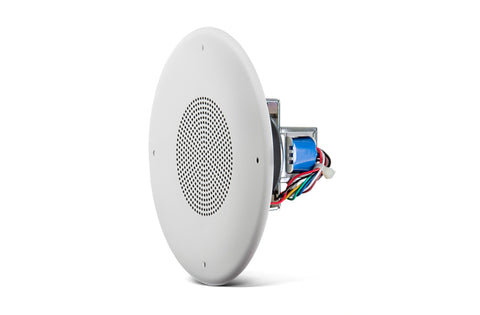

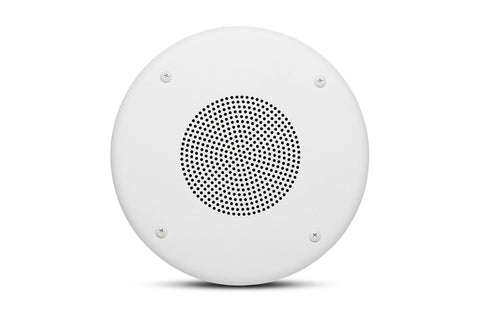

JBL CSS8004 100 mm (4 in) Commercial Series Ceiling Speakers
Rs. 3,776.00
Key Features
Standard warranty provide by OEM
JBL CSS8004 100 mm (4 in) Commercial Series Ceiling Speakers
Rs. 3,776.00
Product Description
100 mm (4 in) Commercial Series Ceiling Speakers
JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.
Specification
| Brand | JBL Professional |
| Model | CSS8004 |
| Speaker Type | Commercial Series Ceiling Speaker |
| Driver Type | Dual-Cone |
| Driver Size | 100 mm (4") |
| Frequency Range (-10 dB) | 85 Hz – 18 kHz |
| Frequency Range in CSS-BB Backcan | 130 Hz – 18 kHz |
| Sensitivity | 90 dB |
| Coverage | 175° Conical |
| Continuous Power Handling | 15 W |
| Nominal Impedance | 8 Ω |
| 100V Transformer Taps | 5 W / 2.5 W / 1.3 W |
| 70V Transformer Taps | 5 W / 2.5 W / 1.3 W / 0.7 W |
| 25V Transformer Taps | 5 W / 2.5 W / 1.3 W / 0.7 W |
| Transformer Insertion Loss | Max. 1.5 dB |
| Transformer Connection | Bare wire |
| Matching Backcan | CSS-BB4 |
| Open-Back Cutout | 125 mm (5") |
| Cutout with CSS-BB4 | 170 mm (6.7") |
| Depth Behind Grille | 94 mm (3.7") |
| Grille Diameter | 198 mm (7.8") |
| Net Weight | 0.90 kg |
| Shipping Weight | 1.26 kg |
| Color | White |
| Plenum Use | Yes, with appropriate UL-listed backcan |
