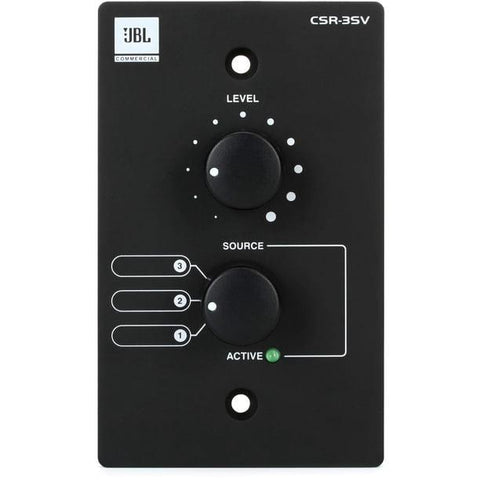

JBL CSR-3SV 3-Zone Wall Controller
Rs. 7,906.00
Key Features
Standard warranty provide by OEM
JBL CSR-3SV 3-Zone Wall Controller
Rs. 7,906.00
Product Description
The JBL CSR-3SV is a commercial audio wall controller designed for remote volume adjustment and selection between three audio sources when used with the compatible JBL CSM-32 mixer. It features a user-friendly wall-mounted design, RJ-45 connectivity, and Cat 5 cable support for installation distances of up to 305 metres (1000 feet). Using analog DC voltage control, the CSR-3SV provides convenient audio management for commercial sound systems in restaurants, offices, conference rooms, retail spaces, and other professional environments.
Specification
| Brand | JBL Professional |
| Model | CSR-3SV |
| Product Type | 3-Zone Wall Controller |
| Control Functions | Volume Control & Source Selection |
| Source Selection | 3 Audio Sources |
| Connector | RJ-45 |
| Cable Type | Cat 5, Straight-Through (T568B) |
| Maximum Cable Length | 305 m (1000 ft) |
| Compatible Mixer | JBL CSM-32 |
| Control Method | Analog DC Voltage |
| Status Indicator | Active LED |
| Mounting Type | Wall-Mounted |
| EU Version Dimensions | 86 × 86 × 18.8 mm |
| US Version Dimensions | 114.3 × 69.9 × 18.4 mm |
| Available Colours | Black / White |
| Product Status | Discontinued |
