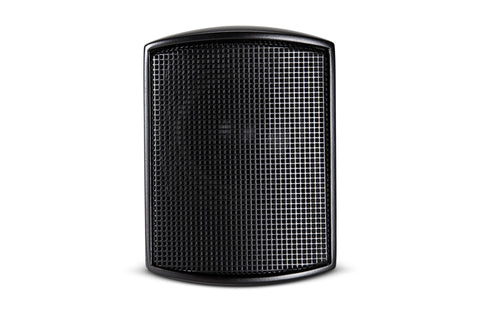

JBL Control 52 Surface-Mount Satellite Speaker for Subwoofer-Satellite Loudspeaker System
Key Features
Product Description
Surface-Mount Satellite Speaker for Subwoofer-Satellite Loudspeaker System

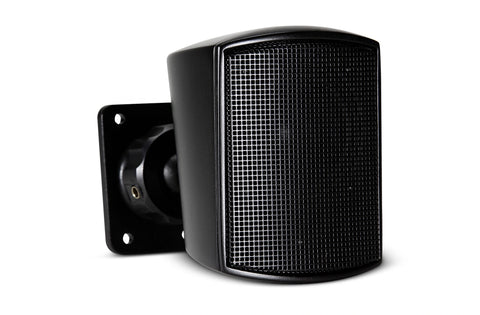

The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.
For full-range wide-bandwidth performance, either 2 or 4 Control 52P mid-high speakers can be driven from the Control 50S/T pendant subwoofer (or from a Control 60PS/T pendant or Control 40CS/T in-ceiling subwoofer). The crossover for this subwoofer-satellite system is included in the subwoofer, and the system can be driven either low-impedance or from a 70V/100V distributed speaker line.
Specification
| Brand | JBL Professional |
| Model | Control 52 |
| Type | Surface-Mount Satellite Loudspeaker |
| Driver | 60 mm (2.5") |
| Cone | Polypropylene |
| Surround | Butyl Rubber |
| Voice Coil | 19 mm (0.75") Copper-Clad Aluminum |
| Frequency Range (-10 dB) | 140 Hz – 20 kHz |
| Frequency Response (±3 dB) | 180 Hz – 17 kHz |
| Power Rating | 50 W Continuous Program / 25 W Continuous Pink Noise |
| Long-Term Power | 30 W Program / 15 W Pink Noise |
| Sensitivity | 85 dB (4.0 V/1 m = 1 W); 82 dB (2.83 V/1 m) |
| Coverage | 150° × 150° / Omnidirectional |
| Maximum SPL | 94 dB Average / 100 dB Peak |
| Nominal Impedance | 16 Ω |
| Input Connector | Removable locking 2-pin connector with screw terminals |
| Enclosure | High-impact Polystyrene |
| Grille | Painted zinc-plated steel |
| Dimensions (H × W × D) | 115 × 84 × 96 mm |
| Wall Bracket Depth | 51 mm |
| Net Weight | 0.7 kg each |
| Shipping Weight | 0.8 kg |
| Mounting | Included swivel-ball wall bracket |
| Colours | Black / White |
