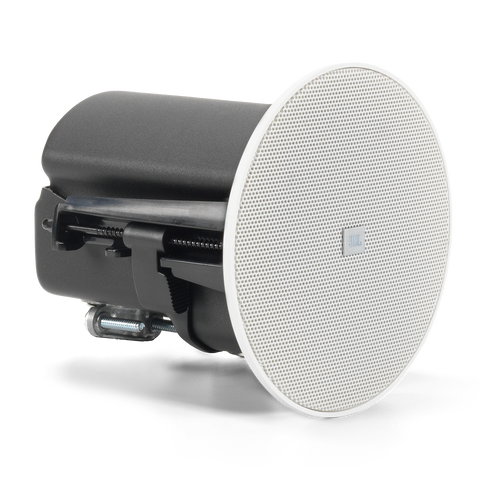

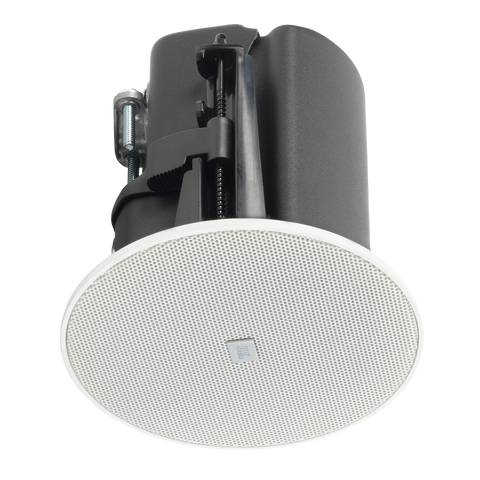

JBL Control 442C/T 2.5" Compact Ceiling Loudspeaker
Key Features
Product Description

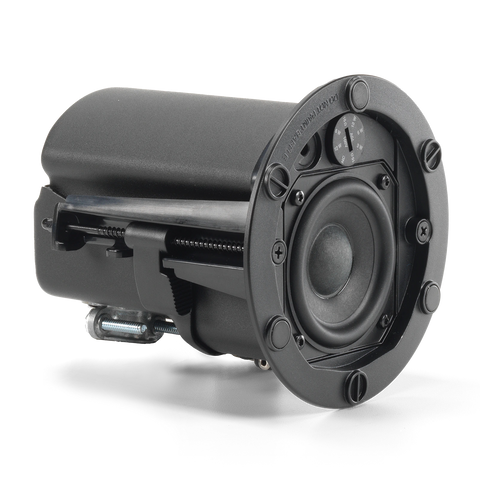

The JBL Control 442C/T, part of the flagship Control 400 Premium Coverage Series, is a compact ceiling loudspeaker, featuring a 2.5” driver and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.

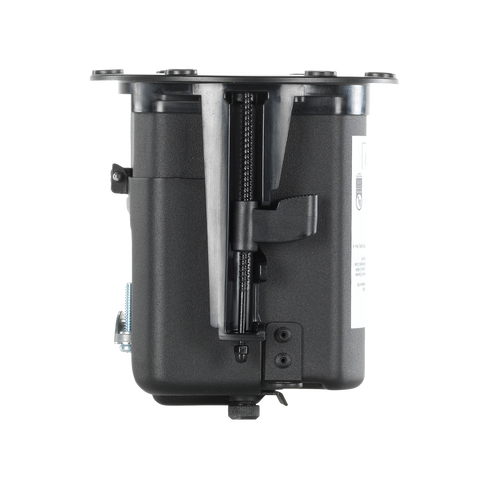

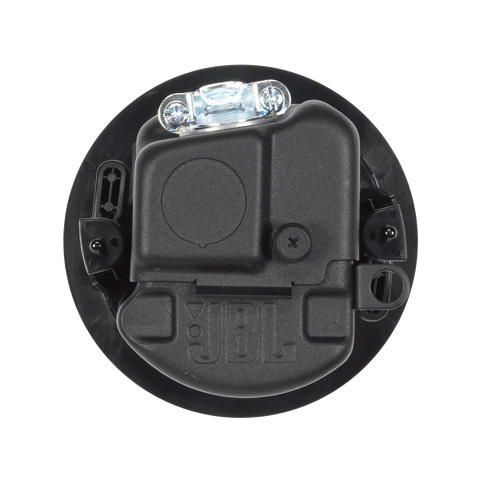

Control 400 Series ceiling speakers boast thoughtfully engineered mounting features to enhance safety, efficiency, and repeatability. Terminal covers allow for convenient top or side cable entry and are secured effortlessly with captive hand-screws. The reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment.
All models embrace design elements tailored for modern interiors. The included full-face magnetic grille is paintable for seamless integration into any decor, while available black and square grilles provide added customization. Additionally, the Control 442C/T supports both 70V/100V and low impedance applications.
Specification
|
Brand |
JBL Professional |
|
Model |
Control 442C/T |
|
Driver Size |
60 mm (2.5-inch) full-range driver |
|
Frequency Response (±3 dB) |
178 Hz – 20 kHz |
|
Frequency Range (-10 dB) |
130 Hz – 20 kHz |
|
Power Capacity (2 hours) |
22.5 W continuous pink noise |
|
Continuous Program Power |
45 W |
|
Peak Power (2 hours) |
90 W |
|
Sensitivity (1W/1m) |
86 dB |
|
Coverage Angle |
160° conical |
|
Maximum SPL |
99.5 dB continuous / 105.5 dB peak |
|
Nominal Impedance |
16 Ω |
|
Transformer Taps (70V) |
12 W, 6 W, 3 W |
|
Transformer Taps (100V) |
12 W, 6 W |
|
Recommended High-Pass Filter |
120 Hz, 24 dB/octave Linkwitz-Riley |
|
Protection Rating |
IP33 |
|
Ceiling Cutout Size |
104 mm (4.1 inches) |
|
Dimensions (H × Diameter) |
138 × 131 mm |
|
Installation Depth |
129 mm (side cable entry) |
|
Net Weight |
1.1 kg |
|
Grille Colour |
White |
