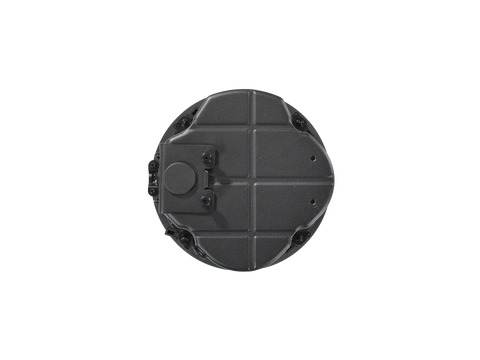

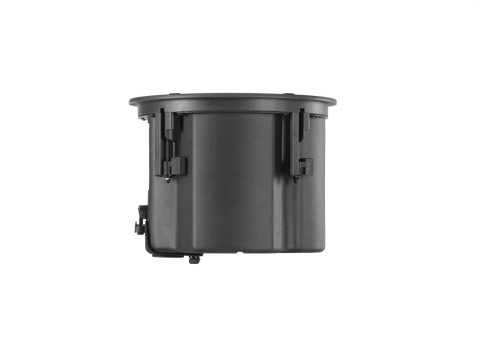

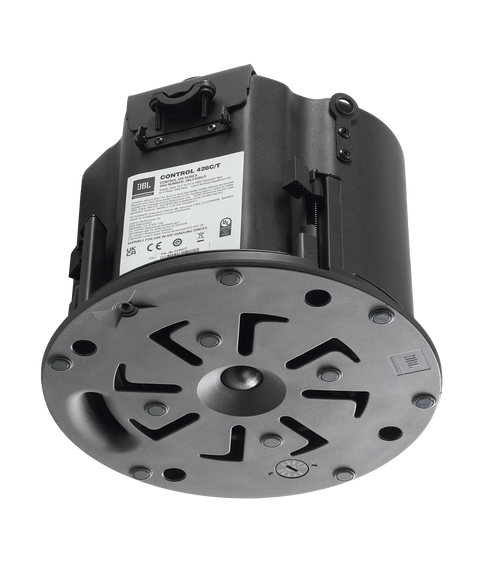

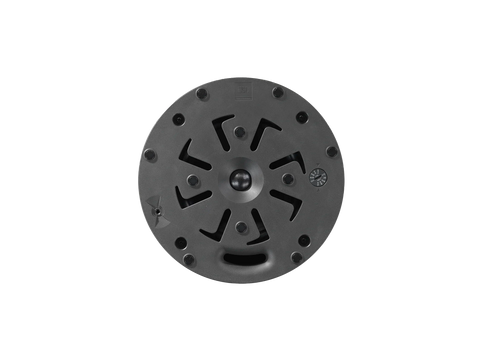

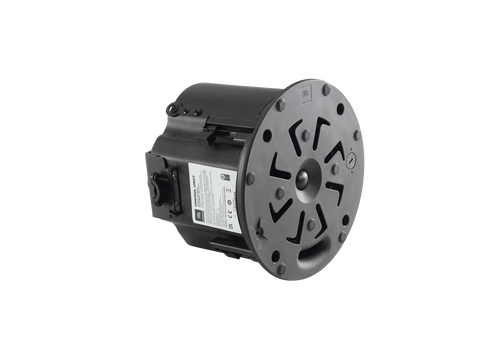

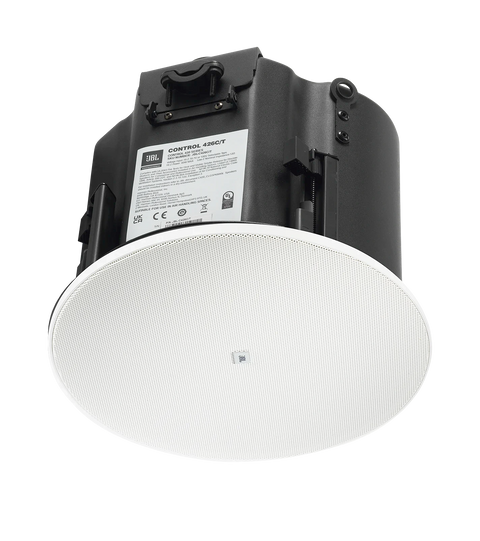

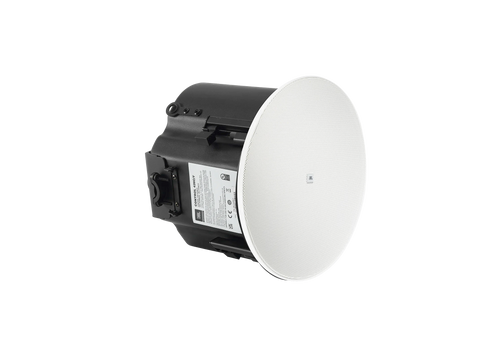

JBL Control 426C/T 6.5" CRBI™-Equipped Two-Way Coaxial Ceiling Loudspeaker
Rs. 30,562.00
Key Features
Standard warranty provide by OEM
JBL Control 426C/T 6.5" CRBI™-Equipped Two-Way Coaxial Ceiling Loudspeaker
Rs. 30,562.00
Product Description
The JBL Control 426C/T is a two-way coaxial ceiling loudspeaker, featuring a 6.5” woofer and integrated enclosure that is ideal for installation in most ceiling plenum spaces. Integrated CRBI™ technology provides 110° of consistent, full, rich sound to the listening area. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. The JBL Control 426C/T includes a transformer to support both 70V/100V and low impedance applications.
Specification
| Model | JBL Control 426C/T |
| Product Type | 6.5" 2-Way Coaxial Ceiling Loudspeaker |
| LF Driver | 165 mm (6.5") treated paper cone |
| HF Driver | 25 mm (1") textile soft-dome, neodymium magnet |
| Frequency Range (-10 dB) | 72 Hz – 19 kHz |
| Frequency Response (±3 dB) | 95 Hz – 17 kHz |
| Power Capacity | 220 W Continuous Program (2 hrs) |
| Continuous Pink Noise | 110 W / 440 W Peak (2 hrs) |
| 100-Hour Power | 75 W / 300 W Peak |
| Sensitivity | 89 dB |
| Coverage Angle | 110° conical |
| Directivity (Q) | 4.3 |
| Directivity Index (DI) | 6.3 dB |
| Maximum SPL | 109 dB continuous / 115 dB peak |
| Nominal Impedance | 12Ω |
| 70V Transformer Taps | 60 W / 30 W / 15 W / 7.5 W |
| 100V Transformer Taps | 60 W / 30 W / 15 W |
| Recommended HPF | 60 Hz, 24 dB/oct LR |
| Maximum Input Voltage | 36 V RMS / 72 V peak |
| Overload Protection | PTC power limiting |
| Ceiling Cutout | 223 mm (8.8") |
| Dimensions | 190 mm H × 253 mm Dia. |
| Backcan Depth | 181 mm from ceiling tile to top of backcan |
| Environmental Rating | IP33 |
| Operating Temperature | 0°C – 45°C |
| Grille | White RAL9003, paintable magnetic bezel-less grille |
| Net Weight | 4.2 kg |
| Shipping Weight | 13.48 kg per pair |
| SKU | JBL-C426C/T |
