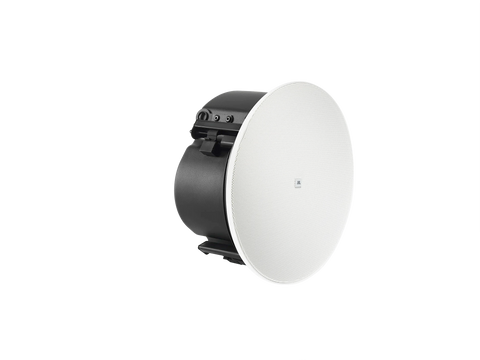

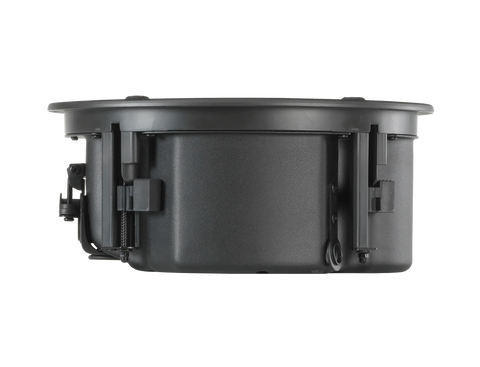

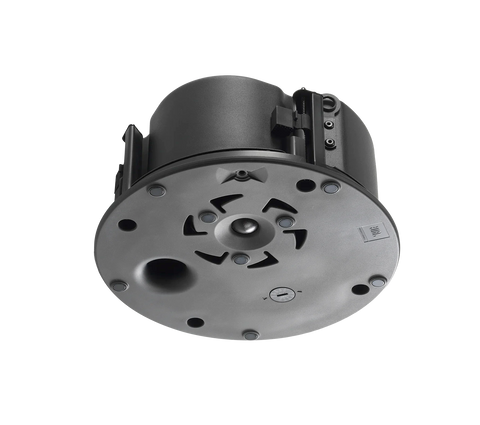

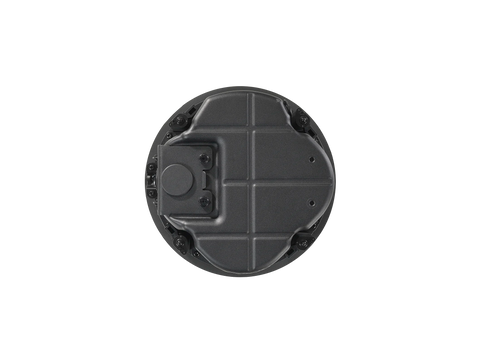

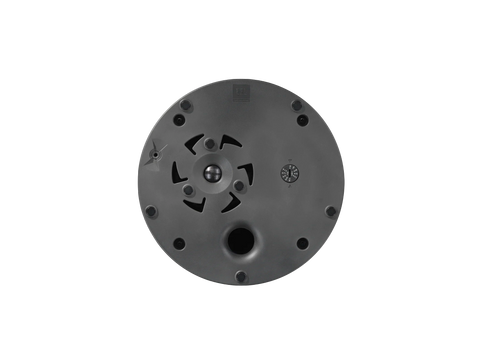

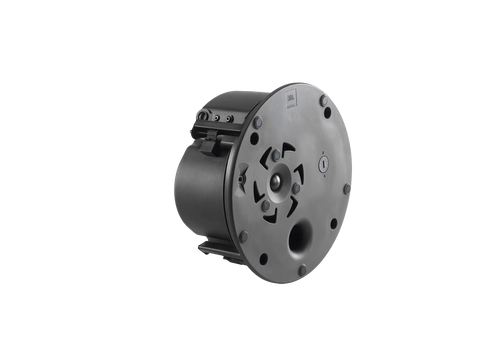

JBL Control 424LP 4" CRBI™-Equipped Two-Way Coaxial Ceiling Loudspeaker
Key Features
Product Description
The JBL Control 424LP is a two-way coaxial ceiling loudspeaker, featuring a 4” woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted. Integrated CRBI™ technology provides 130° of consistent, full, rich sound character that closely matches that of the Control 424C/T. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. Like all Control 400 Enhanced Coverage models, the Control 424LP includes a transformer to support both 70V/100V and low impedance applications.
Specification
| Model | JBL Control 424LP |
| Product Type | 4" 2-Way Coaxial Low-Profile Ceiling Loudspeaker |
| LF Driver | 100 mm (4") treated paper cone |
| HF Driver | 19 mm (0.75") textile soft-dome |
| Frequency Range (-10 dB) | 75 Hz – 18 kHz |
| Frequency Response (±3 dB) | 88 Hz – 17 kHz |
| Power Capacity | 120 W Continuous Program (2 hrs) |
| Continuous Pink Noise | 60 W / 240 W Peak (2 hrs) |
| 100-Hour Power | 40 W / 160 W Peak |
| Sensitivity | 85 dB |
| Coverage | 130° conical |
| Directivity (Q) | 3.3 |
| Directivity Index (DI) | 5.2 dB |
| Maximum SPL | 103 dB continuous / 109 dB peak |
| Nominal Impedance | 16Ω |
| 70V Transformer Taps | 30 W / 15 W / 7.5 W / 3.7 W |
| 100V Transformer Taps | 30 W / 15 W / 7.5 W |
| Recommended HPF | 70 Hz, 24 dB/oct LR |
| Overload Protection | PTC power limiting |
| Environmental Rating | IP33 |
| Operating Temperature | 0°C – 45°C |
| Ceiling Cutout | 224 mm (8.8") |
| Overall Dimensions | 107 mm H × 253 mm Dia. |
| Above-Ceiling Depth | 98 mm |
| Net Weight | 3.0 kg |
| Grille | White RAL9003, paintable magnetic bezel-less grille |
| SKU | JBL-C424LP |
