JBL Control 419CS/T 8" Ceiling Subwoofer
Rs. 42,008.00
Key Features
Standard warranty provide by OEM
JBL Control 419CS/T 8" Ceiling Subwoofer
Rs. 42,008.00
Product Description

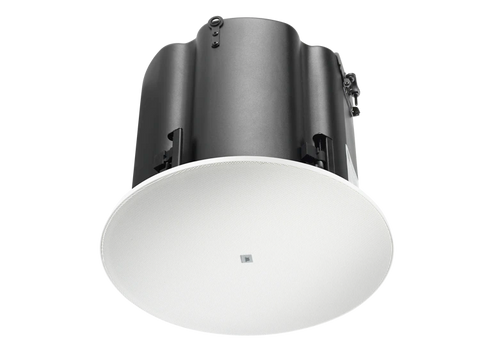

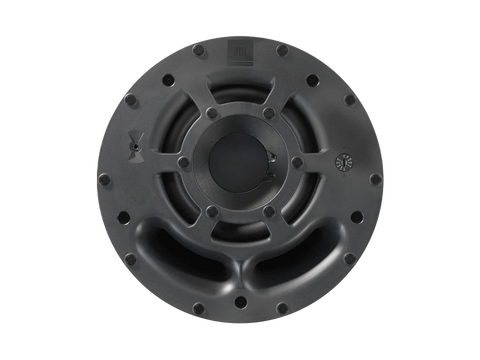

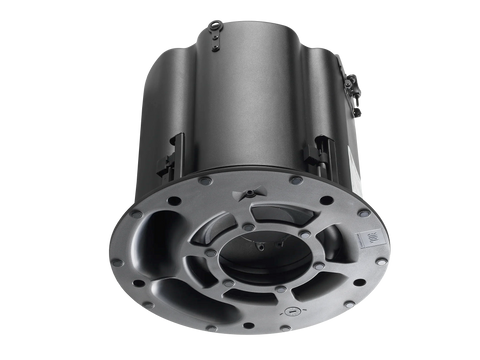

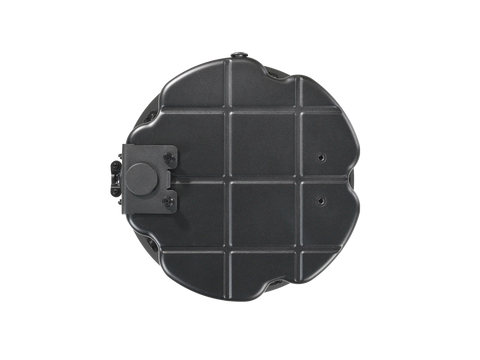

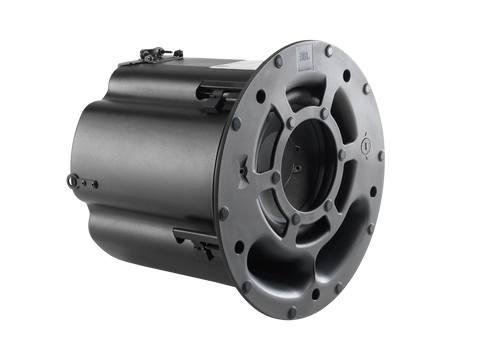

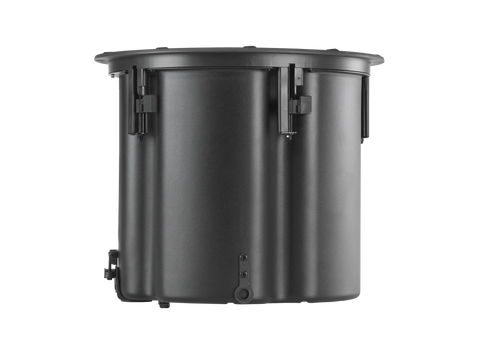

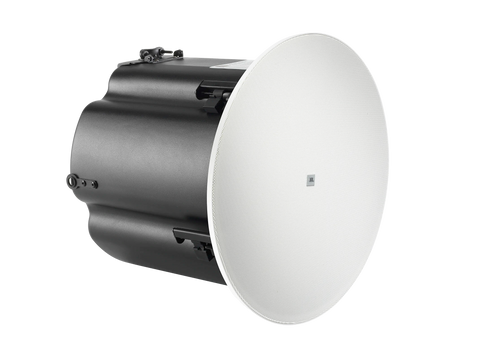

The JBL Control 419CS/T is a ceiling subwoofer, featuring an 8” woofer and integrated enclosure for installation in most ceiling plenum spaces. When you need to extend low-end performance, the Control C419CS/T integrates seamlessly with Control 400 Series full-range models to significantly extend low-frequency bass output. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. The JBL Control 419CS/T includes a transformer to support both 70V/100V and low impedance applications.
Specification
| Brand | JBL Professional |
| Model | Control 419CS/T |
| Speaker Type | 8" In-Ceiling Subwoofer |
| LF Driver | 200 mm (8") woofer |
| Driver Cone | Highly treated paper cone |
| Voice Coil | 38 mm (1.5") copper voice coil |
| Frequency Range (-10 dB) | 47 Hz – 320 Hz |
| Frequency Response (±3 dB) | 55 Hz – 150 Hz |
| Power Capacity | 320 W Continuous Program |
| Power Handling | 160 W Continuous IEC Pink Noise / 640 W Peak (2 hrs) |
| 100-Hour Power | 80 W Continuous IEC Pink Noise / 320 W Peak |
| Sensitivity | 90 dB, 1 W @ 1 m, center of ceiling |
| Coverage | 180° Conical |
| Maximum SPL | 112 dB Continuous / 118 dB Peak |
| Nominal Impedance | 8Ω |
| Transformer Taps – 70V | 60 W / 30 W / 15 W / 7.5 W |
| Transformer Taps – 100V | 60 W / 30 W / 15 W |
| Transformer Type | Low-saturation subwoofer-band transformer |
| Low-Pass Filter | Built-in passive low-pass filter |
| Recommended HPF | 45 Hz, 24 dB/oct LR |
| Environmental Rating | IP33 |
| Ceiling Cutout | 308 mm (12.2") |
| Dimensions (H × Dia.) | 289 × 346 mm |
| Backcan Depth | 280 mm |
| Net Weight | 8.8 kg |
| Color | White RAL9003, paintable |
| Grille | Full-face bezel-less magnetic grille |
| Safety Compliance | UL1480A, UL2043, NFPA90A, NFPA70, CSA C22.2 No.205 |
| SKU | JBL-C419CS/T |
