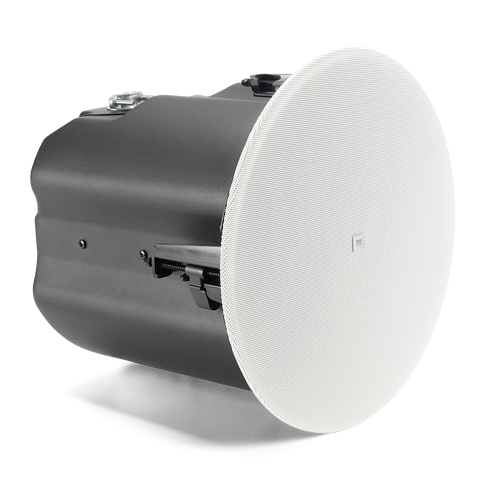

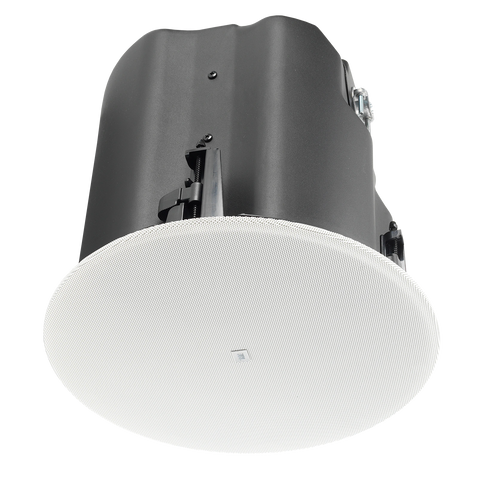

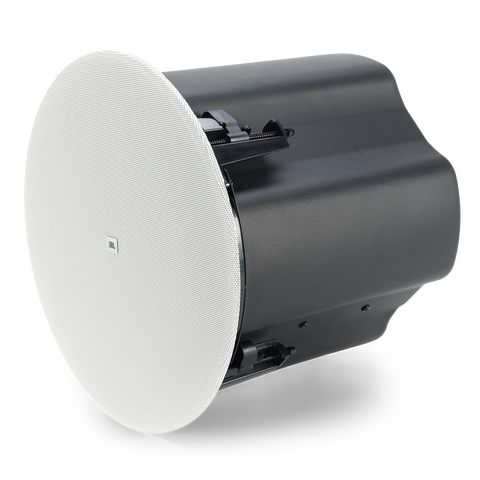

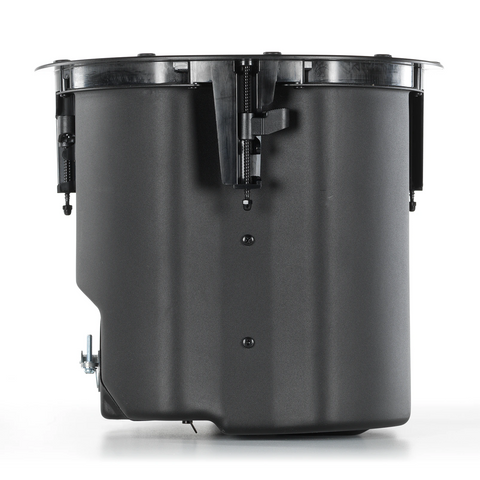

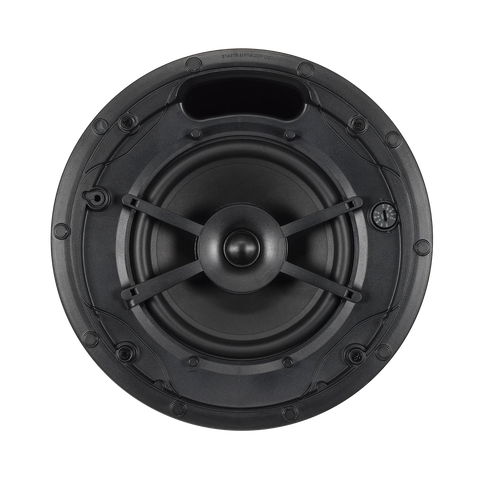

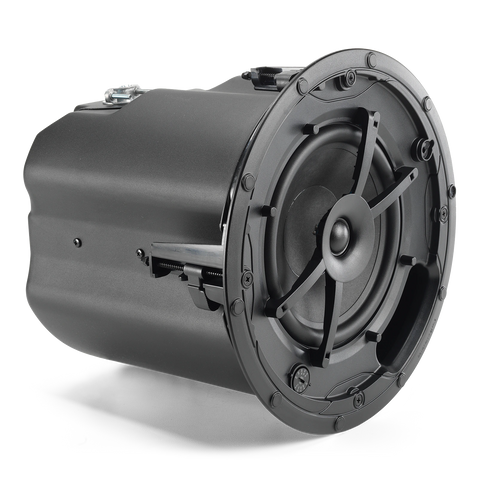

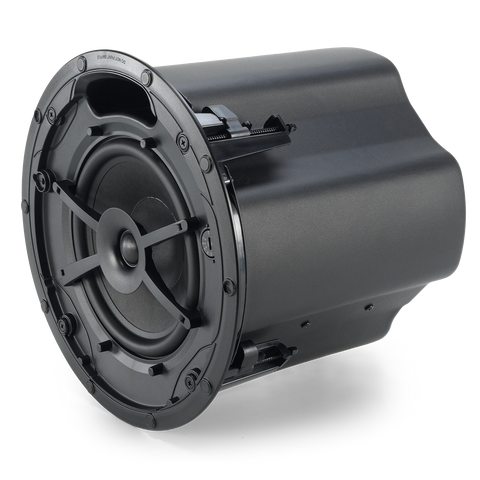

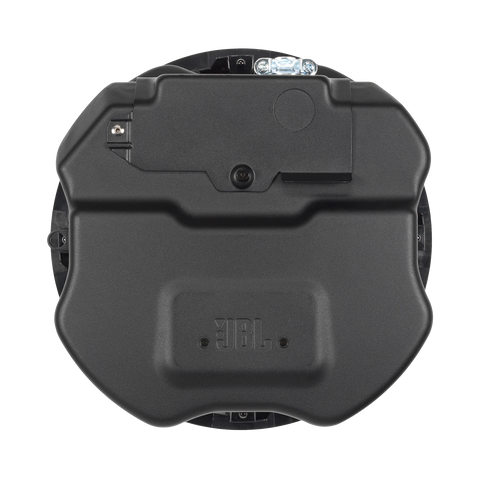

JBL Control 418C/T 8" Two-Way Coaxial Ceiling Loudspeaker
Key Features
Product Description
The JBL Control 418C/T, part of the Control 400 Standard Coverage Series, is a two-way coaxial ceiling loudspeaker, featuring an 8” woofer and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.
All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.
The Control 418C/T includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 418C/T supports both 70V/100V and low impedance applications.
Specification
| Brand | JBL Professional |
| Model | Control 418C/T |
| Speaker Type | 2-Way Coaxial Ceiling Loudspeaker |
| LF Driver | 200 mm (8") woofer, paper cone, SBR surround |
| HF Driver | 25 mm (1") soft-dome tweeter |
| Frequency Range (-10 dB) | 57 Hz – 20 kHz |
| Frequency Response (±3 dB) | 74 Hz – 19 kHz |
| Power Capacity | 270 W Continuous Program |
| Power Handling | 135 W (540 W Peak) Continuous Pink Noise, 2 hrs |
| 100-Hour Power | 90 W (360 W Peak) Continuous Pink Noise |
| Sensitivity | 92 dB, 1 W @ 1 m |
| Coverage | 100° Conical |
| Maximum SPL | 113 dB Continuous / 119 dB Peak |
| Nominal Impedance | 8Ω |
| Transformer Taps – 70V | 60 W / 30 W / 15 W / 7.5 W |
| Transformer Taps – 100V | 60 W / 30 W / 15 W |
| Minimum Impedance | 6.9Ω @ 200 Hz |
| Recommended HPF | 60 Hz, 24 dB/oct LR |
| Ceiling Cutout | 282 mm (11.1") |
| Dimensions (H × Dia.) | 283 × 315 mm |
| Backcan Depth | 271 mm from ceiling tile to top of backcan |
| Environmental Rating | IP33 |
| Operating Temperature | 0°C – 45°C |
| Enclosure | Powder-coated formed-steel backcan |
| Baffle | PC/ABS, UL94 5VB |
| Grille | Bezel-less, paintable magnetic SPCC grille |
| Color | White RAL9003 |
| Net Weight | 5.8 kg |
| SKU | JBL-C418C/T |
