JBL Control 416C/T 6.5" Two-Way Coaxial Ceiling Loudspeaker
Key Features
Product Description

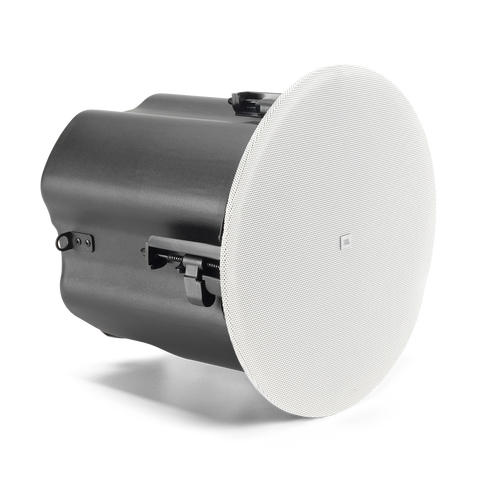

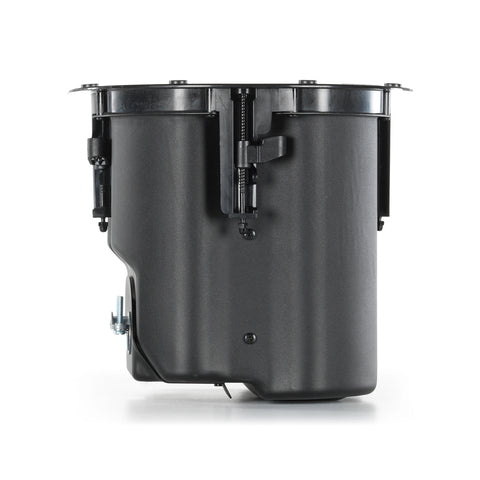

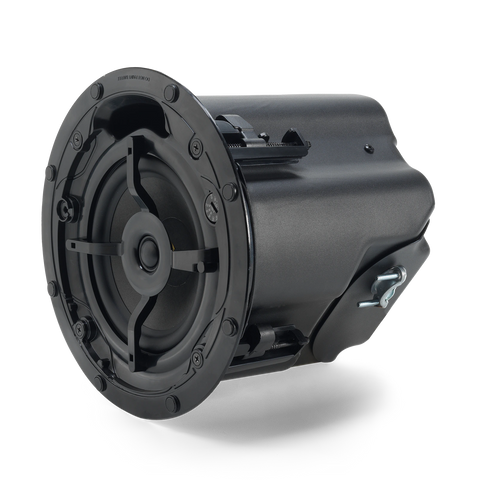

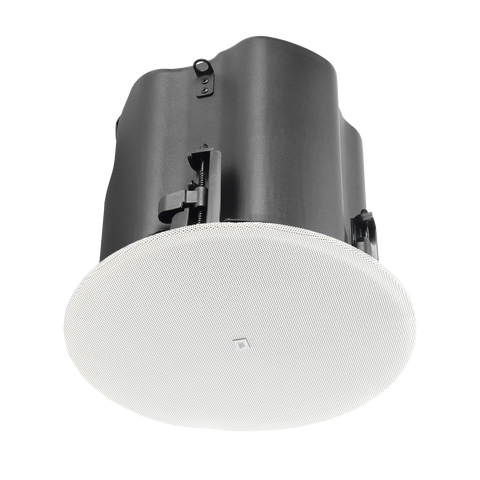

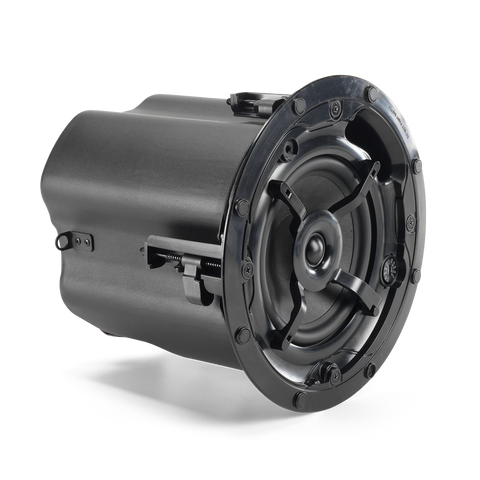

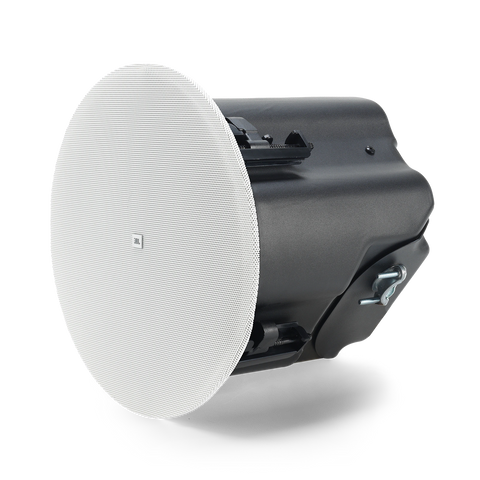

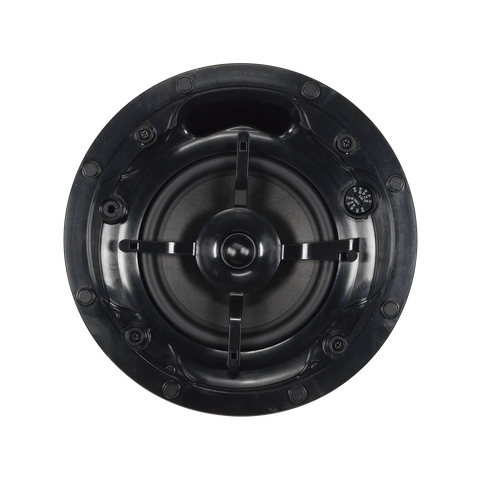

The JBL Control 416C/T, part of the Control 400 Standard Coverage Series, is a two-way coaxial ceiling loudspeaker, featuring a 6.5” woofer and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.
All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.

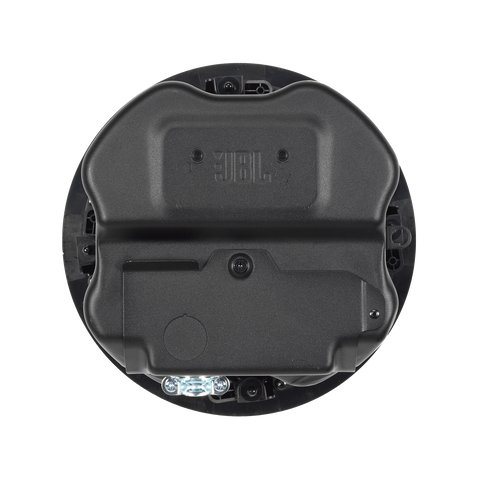

The Control 416C/T includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 416C/T supports both 70V/100V and low impedance applications.
Specification
| Brand | JBL Professional |
| Model | Control 416C/T |
| Speaker Type | 2-Way Coaxial Ceiling Loudspeaker |
| LF Driver | 165 mm (6.5") woofer, paper cone, SBR surround |
| HF Driver | 20 mm (0.75") soft-dome tweeter |
| Frequency Range (-10 dB) | 61 Hz – 20 kHz |
| Frequency Response (±3 dB) | 84 Hz – 19 kHz |
| Power Capacity | 150 W Continuous Program |
| Power Handling | 75 W Continuous Pink Noise / 300 W Peak (2 hrs) |
| 100-Hour Power | 50 W Continuous Pink Noise / 200 W Peak |
| Sensitivity | 89 dB, 1 W @ 1 m |
| Coverage | 120° Conical |
| Maximum SPL | 108 dB Continuous / 114 dB Peak |
| Nominal Impedance | 8Ω |
| Transformer Taps – 70V | 30 W / 15 W / 7.5 W / 3.8 W |
| Transformer Taps – 100V | 30 W / 15 W / 7.5 W |
| Ceiling Cutout | 223 mm (8.8") |
| Dimensions | 233 mm H × 261 mm Diameter |
| Backcan Depth | 222 mm |
| Environmental Rating | IP33 |
| Operating Temperature | 0°C – 45°C |
| Grille | Full-face magnetic, paintable |
| Color | White RAL9003 |
| Net Weight | 3.75 kg |
| Shipping Weight | 12.64 kg/pair |
| Safety Compliance | UL 1480A, UL 2043, NFPA 90A, NFPA 70, CSA C22.2 No.205 |
