JBL Control 414CT Micro Plus 4" Two-Way High-Output Ceiling Loudspeaker
Key Features
Product Description

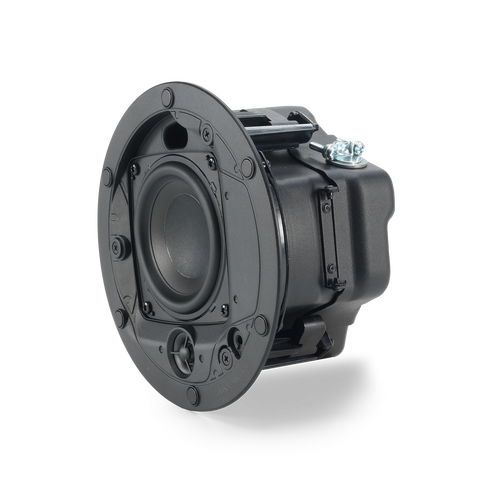

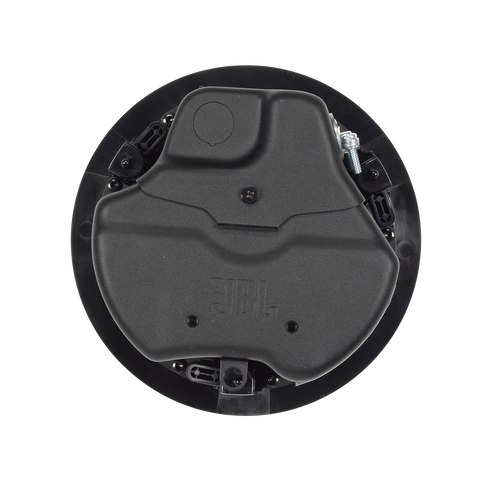

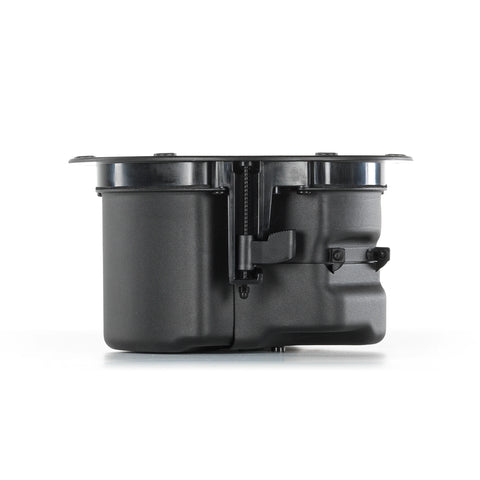

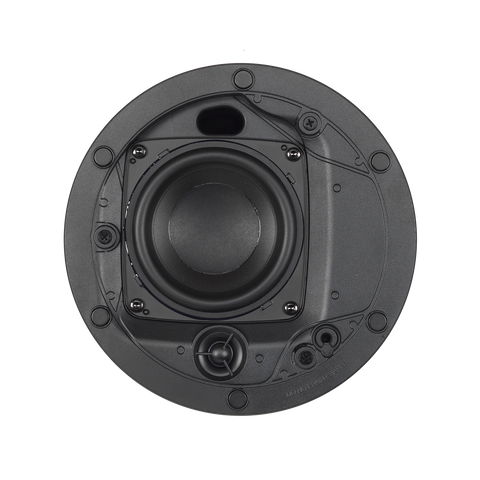

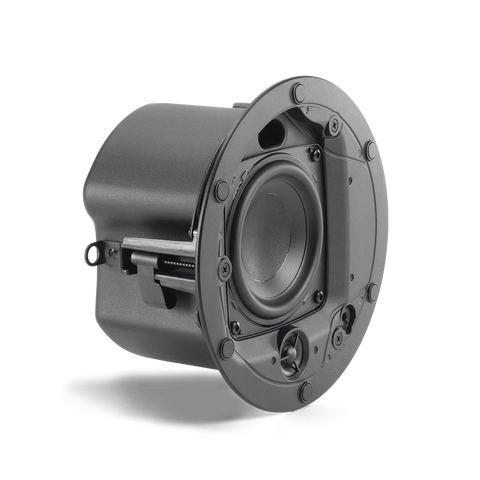

The JBL Control 414CT Micro Plus, part of the Control 400 Standard Coverage Series, is a two-way high-output ceiling loudspeaker, featuring a 4” woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted.

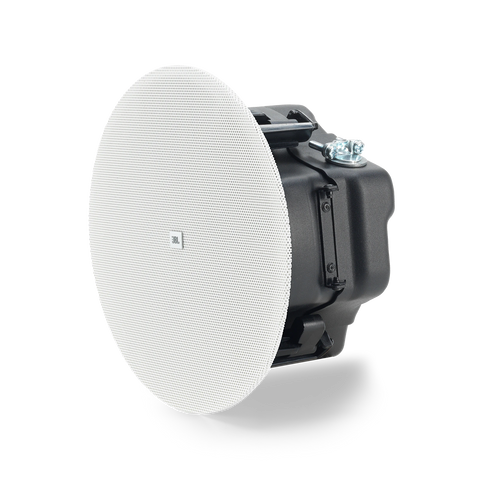

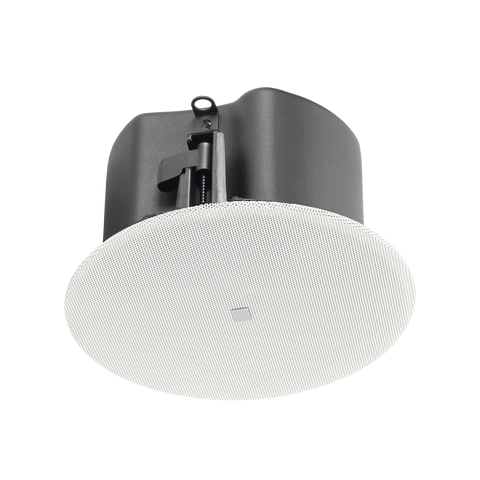

All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.
The Control 414CT Micro Plus includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment.
Specification
| Brand | JBL Professional |
| Model | Control 414CT Micro Plus |
| Speaker Type | 2-Way High-Output Ceiling Loudspeaker |
| Enclosure Type | Low-Profile Integrated Enclosure |
| LF Driver | 103 mm (4") woofer, PP cone & paper cup, SBR surround |
| HF Driver | 13 mm (0.5") PEI dome tweeter |
| Frequency Range (-10 dB) | 69 Hz – 25 kHz |
| Power Capacity | 25 W Continuous Pink Noise (100 hrs) |
| Peak Power | 100 W |
| Sensitivity | 85 dB, 1 W @ 1 m |
| Coverage | 160° Conical |
| Maximum SPL | 99 dB Continuous / 105 dB Peak |

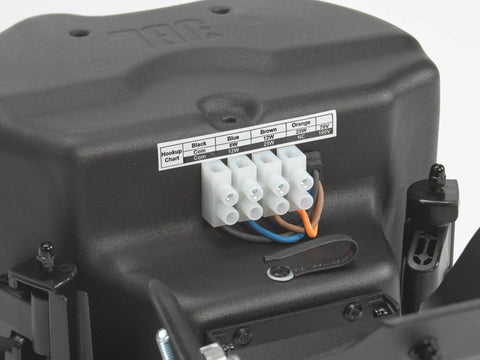

| Transformer Taps – 70V | 25 W / 12 W / 6 W |
| Transformer Taps – 100V | 25 W / 12 W |
| Nominal Impedance | N/A – transformer-only |
| Ceiling Cutout | 168 mm (6.6") |
| Overall Dimensions | 114 mm H × 203 mm Diameter |
| Backcan Depth | 105 mm from ceiling tile to top of backcan |
| Environmental Rating | IP32 |
| Operating Temperature | 0°C – 45°C |
| Grille | Full-face magnetic, paintable |
| Standard Color | White RAL9003 |
| Net Weight | 2.12 kg |
| Shipping Weight | 8.6 kg/pair |
| Safety Certifications | UL 1480A, UL 2043, NFPA 90A, NFPA 70, CSA C22.2 No.205 |
| SKU | JBL-C414MPT |
