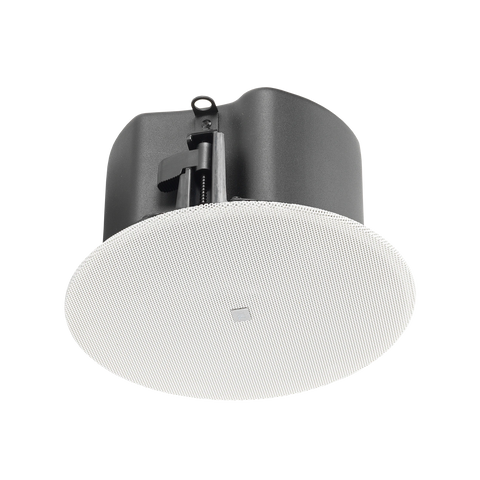

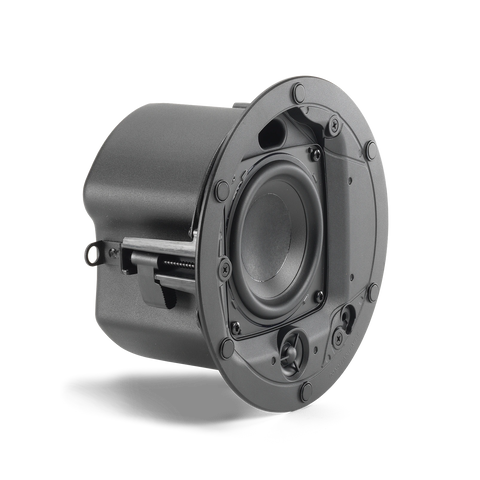

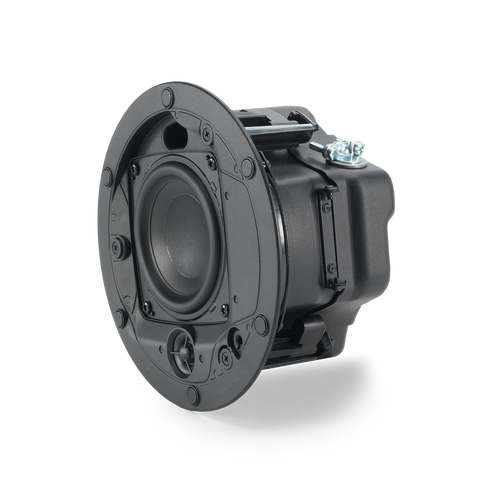

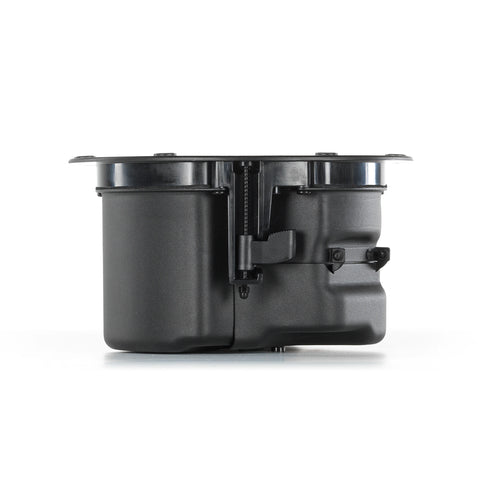

JBL Control 414CT Micro Plus 4" Two-Way High-Output Ceiling Loudspeaker
Key Features
Product Description
The JBL Control 414CT Micro Plus, part of the Control 400 Standard Coverage Series, is a two-way high-output ceiling loudspeaker, featuring a 4” woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted.

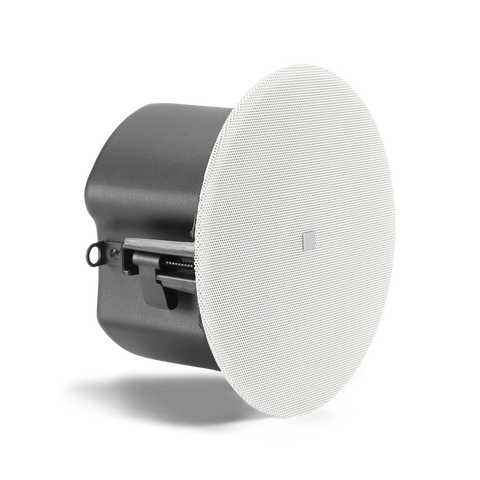

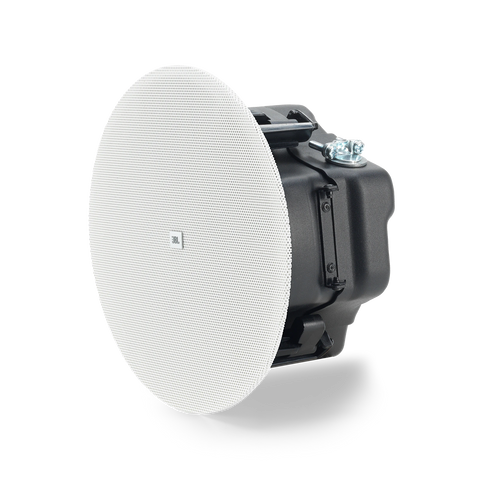

All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.

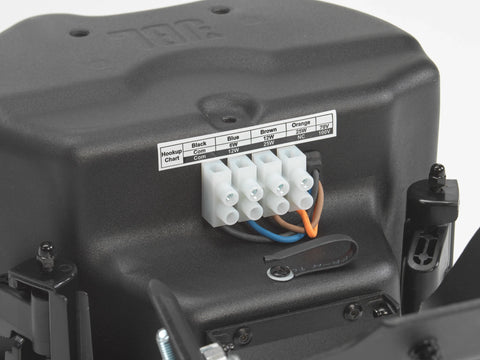

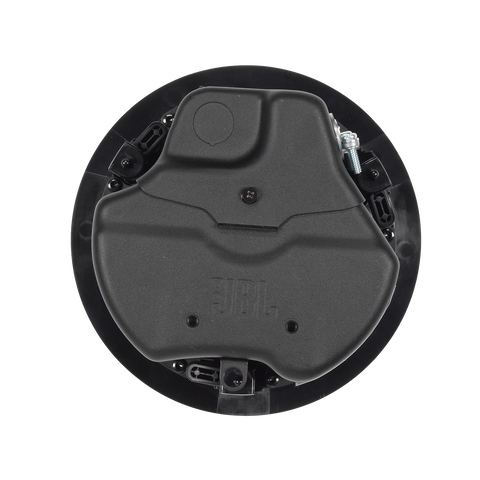

The Control 414CT Micro Plus includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment.
Specification
| Brand | JBL Professional |
| Model | Control 414C/T |
| Speaker Type | 2-Way Coaxial Ceiling Loudspeaker |

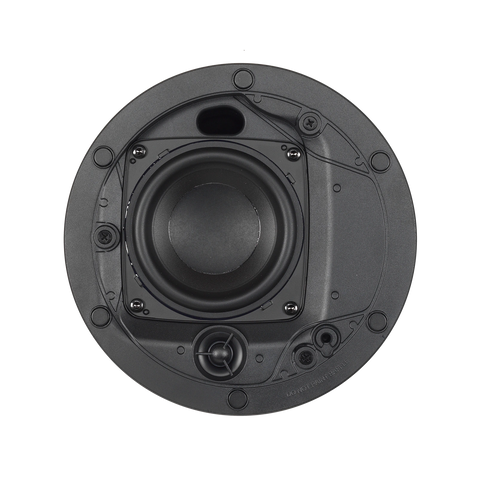

| LF Driver | 100 mm (4") woofer, paper cone, SBR surround |
| HF Driver | 20 mm (0.75") soft-dome tweeter |
| Frequency Range (-10 dB) | 65 Hz – 20 kHz |
| Power Capacity | 45 W Continuous Pink Noise / 180 W Peak (2 hrs) |
| 100-Hour Power | 30 W Continuous Pink Noise / 120 W Peak |
| Sensitivity | 86 dB, 1 W @ 1 m |
| Coverage | 130° conical |
| Maximum SPL | 103 dB continuous / 109 dB peak |
| Nominal Impedance | 8Ω |
| Transformer Taps – 70V | 25 W / 12.5 W / 6.3 W / 3.2 W |
| Transformer Taps – 100V | 25 W / 12.5 W / 6.3 W |
| Ceiling Cutout | 168 mm (6.6") |
| Dimensions (H × Dia.) | 186 × 203 mm |
| Backcan Depth | 177 mm |
| Environmental Rating | IP33 |
| Operating Temperature | 0°C – 45°C |
| Grille | Bezel-less, paintable magnetic grille |
| Color | White RAL9003 |
| Net Weight | 2.50 kg |
| Safety Compliance | UL 1480A, UL 2043, NFPA 90A, NFPA 70, CSA C22.2 No.205 |
