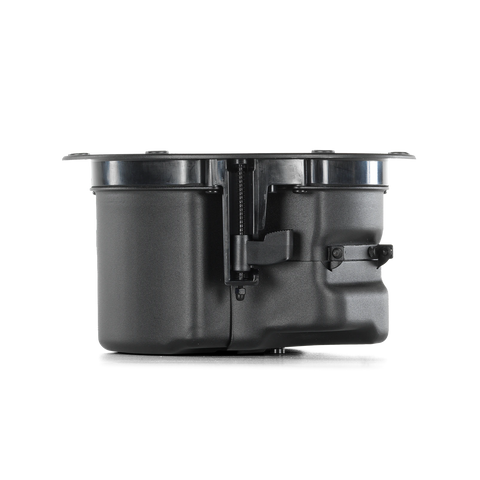

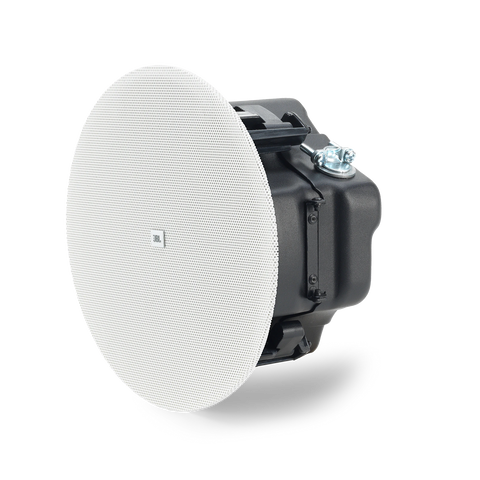

JBL Control 414C/T Micro 4" Two-Way Ceiling Loudspeaker with Low-Profile Enclosure
Key Features
Product Description
The JBL Control 414C/T Micro, part of the Control 400 Standard Coverage Series, is a two-way ceiling loudspeaker, featuring a 4” woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted.

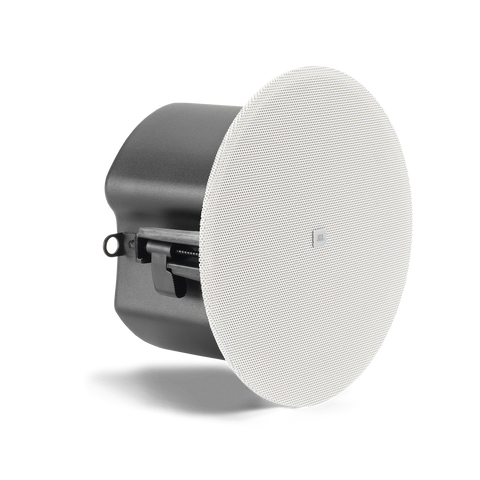

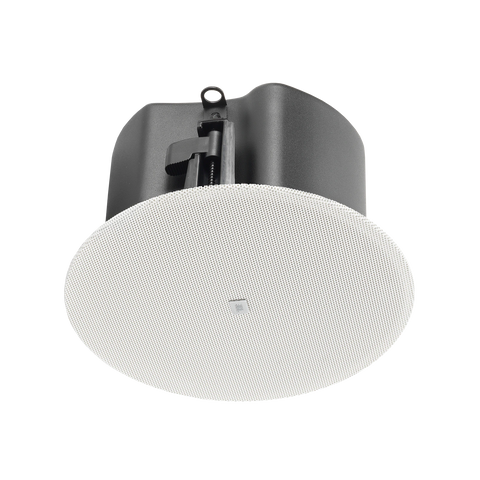

All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.
The Control 414C/T Micro includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 414C/T Micro supports both 70V/100V and low impedance applications.
Specification
| Brand | JBL Professional |
| Model | Control 414C/T |
| Speaker Type | 2-Way Coaxial Ceiling Loudspeaker |

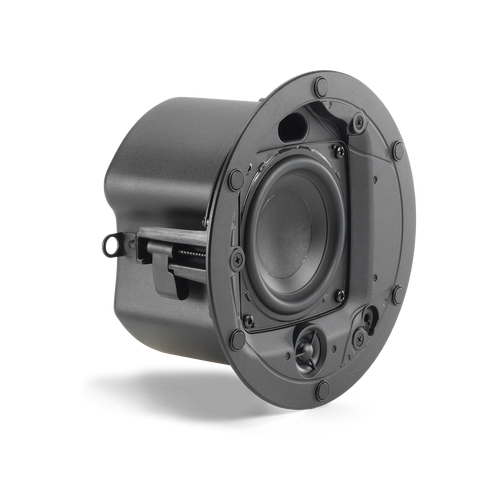

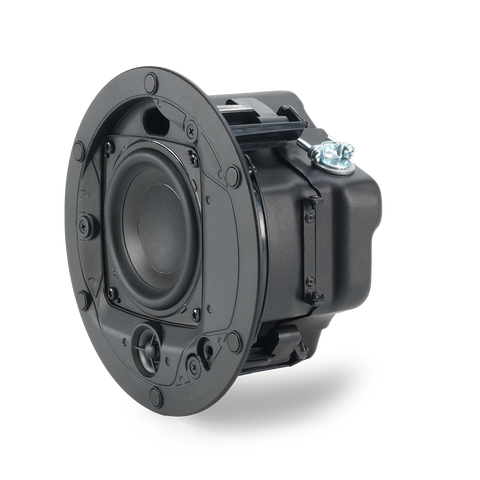

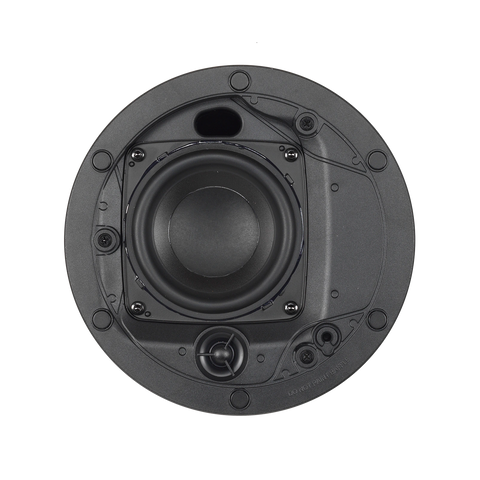

| LF Driver | 100 mm (4") woofer, paper cone, SBR surround |
| HF Driver | 20 mm (0.75") soft-dome tweeter |
| Frequency Range (-10 dB) | 65 Hz – 20 kHz |
| Power Capacity | 45 W Continuous Pink Noise / 180 W Peak (2 hrs) |
| 100-Hour Power | 30 W Continuous Pink Noise / 120 W Peak |
| Sensitivity | 86 dB, 1 W @ 1 m |
| Coverage | 130° conical |
| Maximum SPL | 103 dB continuous / 109 dB peak |
| Nominal Impedance | 8Ω |

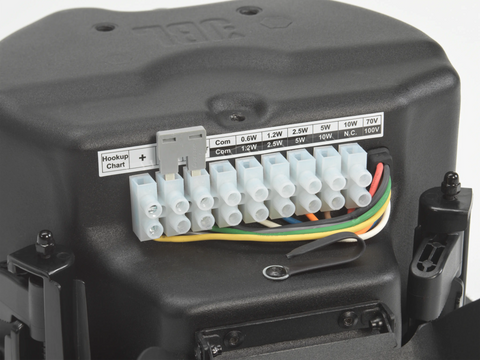

| Transformer Taps – 70V | 25 W / 12.5 W / 6.3 W / 3.2 W |
| Transformer Taps – 100V | 25 W / 12.5 W / 6.3 W |
| Ceiling Cutout | 168 mm (6.6") |
| Dimensions (H × Dia.) | 186 × 203 mm |

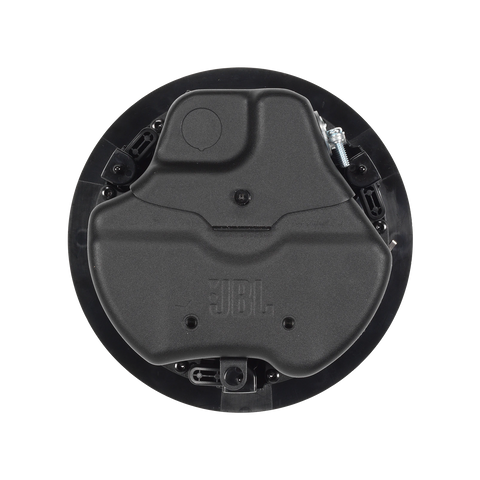

| Backcan Depth | 177 mm |
| Environmental Rating | IP33 |
| Operating Temperature | 0°C – 45°C |
| Grille | Bezel-less, paintable magnetic grille |
| Color | White RAL9003 |
| Net Weight | 2.50 kg |
| Safety Compliance | UL 1480A, UL 2043, NFPA 90A, NFPA 70, CSA C22.2 No.205 |
