JBL Control 414C/T 4" Two-Way Coaxial Ceiling Loudspeaker
Key Features
Product Description

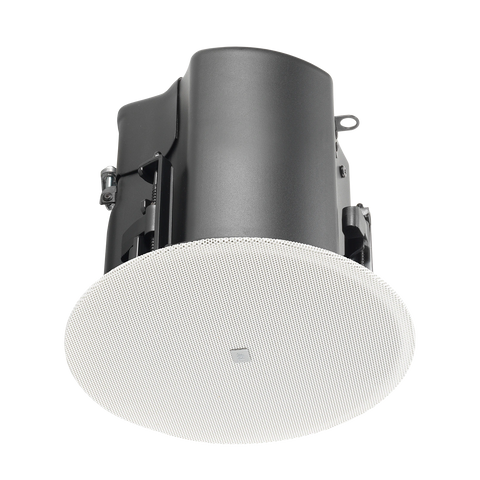

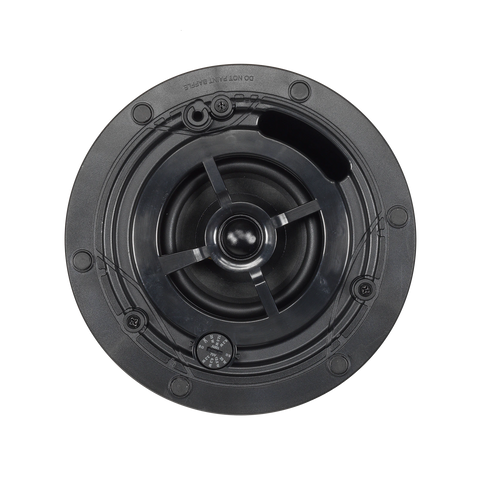

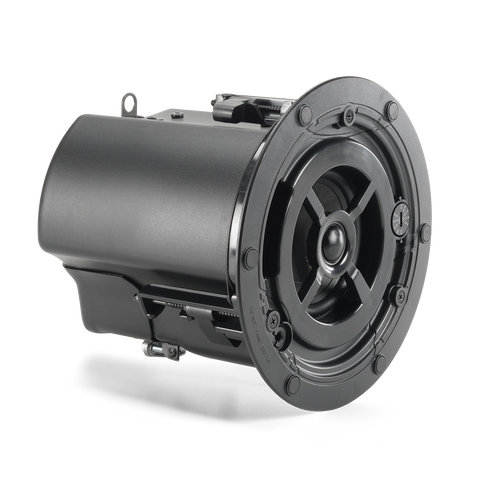

The JBL Control 414C/T, part of the Control 400 Standard Coverage Series, is a two-way coaxial ceiling loudspeaker, featuring a 4” woofer and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.

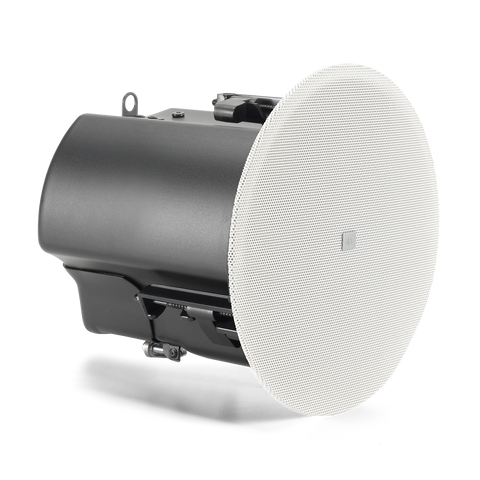

All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.

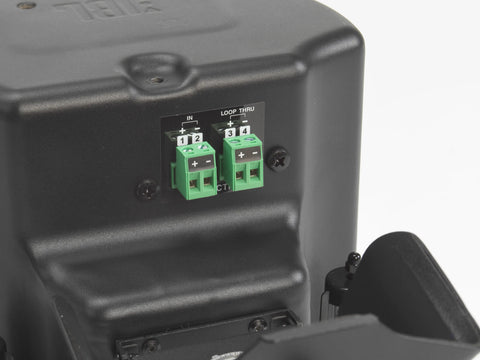

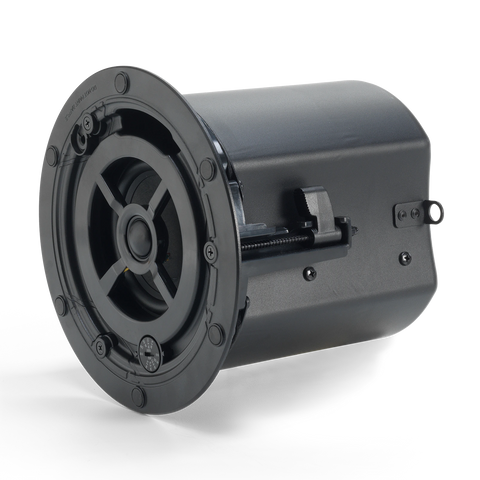

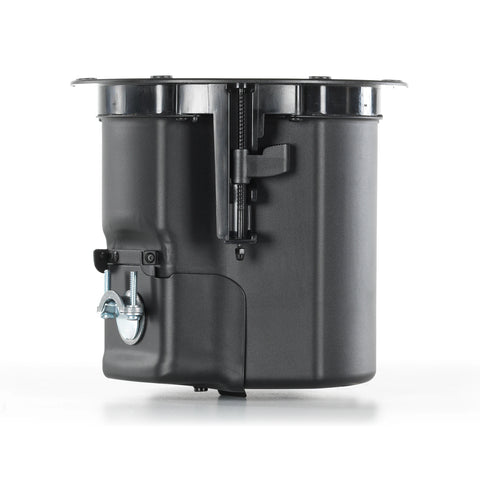

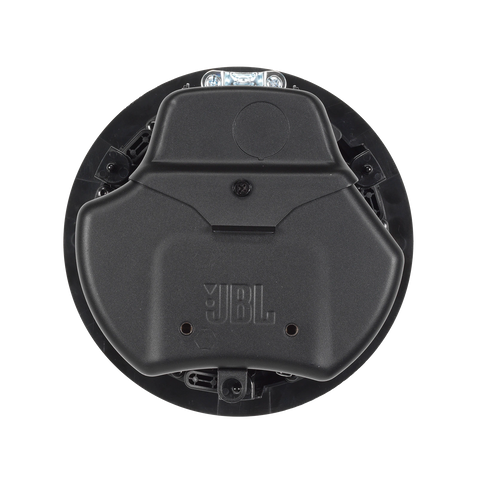

The Control 414C/T includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 414C/T supports both 70V/100V and low impedance applications.
Specification
| Brand | JBL Professional |
| Model | Control 414C/T |
| Speaker Type | 2-Way Coaxial Ceiling Loudspeaker |
| LF Driver | 100 mm (4") woofer, paper cone, SBR surround |
| HF Driver | 20 mm (0.75") soft-dome tweeter |
| Frequency Range (-10 dB) | 65 Hz – 20 kHz |
| Power Rating | 45 W Continuous Pink Noise (2 hrs) |
| Peak Power | 180 W (2 hrs) |
| 100-Hour Power | 30 W Continuous Pink Noise / 120 W Peak |
| Sensitivity | 86 dB, 1 W @ 1 m |
| Coverage | 130° Conical |
| Maximum SPL | 103 dB Continuous / 109 dB Peak |
| Nominal Impedance | 8Ω |
| Transformer Taps – 70V | 25 W / 12.5 W / 6.3 W / 3.2 W |
| Transformer Taps – 100V | 25 W / 12.5 W / 6.3 W |
| Ceiling Cutout | 168 mm (6.6") |
| Dimensions (H × Dia.) | 186 × 203 mm |
| Backcan Depth | 177 mm from ceiling tile to top of backcan |
| Environmental Rating | IP33 |
| Operating Temperature | 0°C to 45°C |
| Net Weight | 2.50 kg |
| Color | White RAL9003, paintable |
| Safety Compliance | UL 1480A, UL 2043, NFPA 90A, NFPA 70, CSA C22.2 No.205 |
