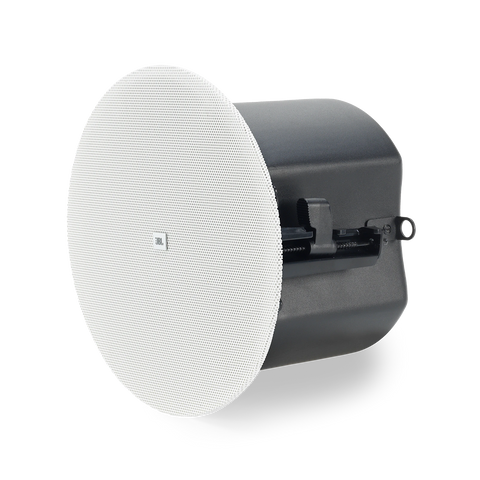

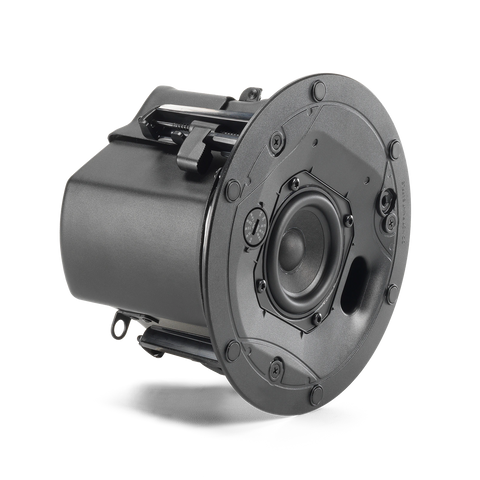

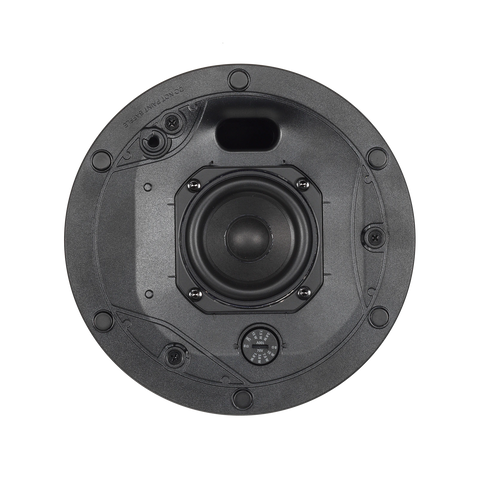

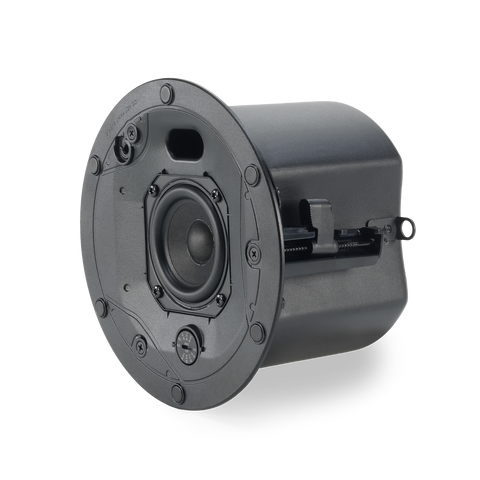

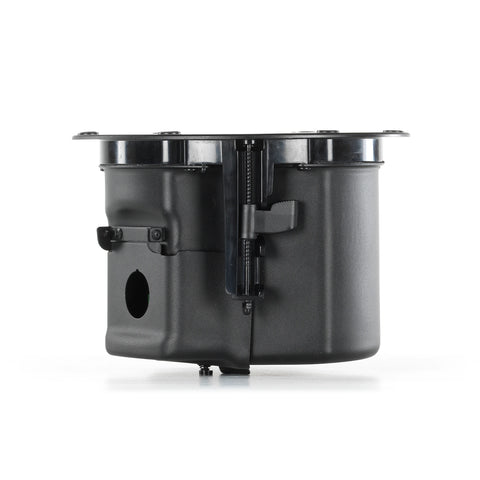

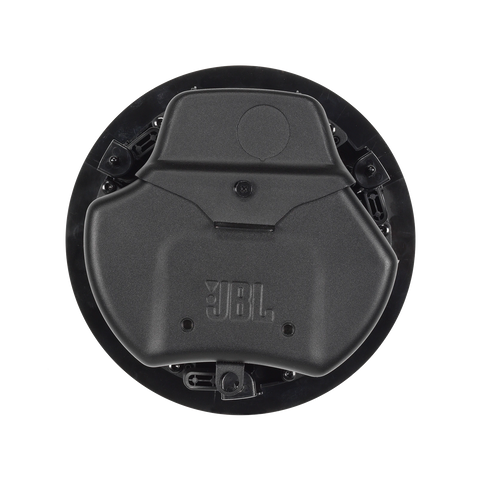

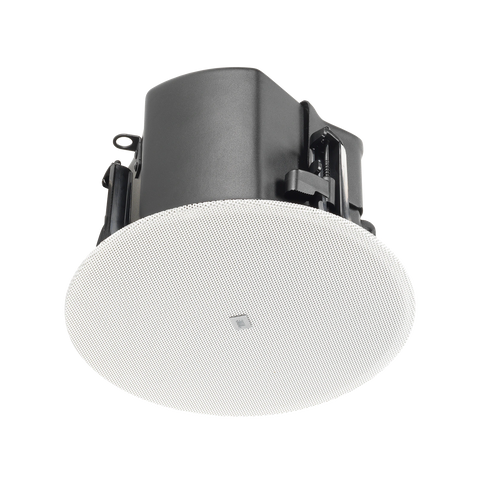

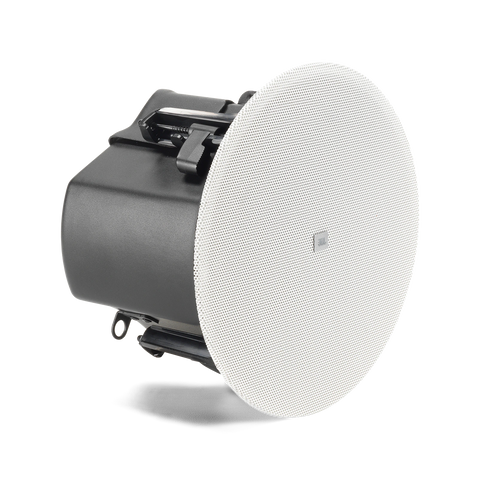

JBL Control 412C/T 3" Full-Range Ceiling Loudspeaker
Key Features
Product Description
The JBL Control 412C/T, part of the Control 400 Standard Coverage Series, is a full-range ceiling loudspeaker, featuring a 3” driver and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.
All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.
The Control 412C/T includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 412C/T supports both 70V/100V and low impedance applications.
Specification
| Brand | JBL Professional |
| Model | Control 412C/T |
| Speaker Type | Full-Range Ceiling Loudspeaker |
| Driver | 76 mm (3") Full-Range |
| Frequency Range (-10 dB) | 68 Hz – 17 kHz |
| Frequency Response (±3 dB) | 85 Hz – 16 kHz |
| Power Capacity | 60 W Continuous Program |
| Power Handling | 30 W Continuous Pink Noise (2 hrs), 20 W Continuous Pink Noise (100 hrs) |
| Peak Power | 120 W (2 hrs) / 80 W (100 hrs) |
| Sensitivity | 84 dB, 1 W @ 1 m |
| Coverage | 160° Conical |
| Maximum SPL | 99 dB Continuous / 105 dB Peak |
| Nominal Impedance | 8Ω |
| Transformer Taps – 70V | 15 W / 7.5 W / 3.8 W / 1.9 W |
| Transformer Taps – 100V | 15 W / 7.5 W / 3.8 W |
| Minimum Impedance | 7.1Ω @ 500 Hz |
| Recommended HPF | 80 Hz, 24 dB/oct LR |
| Environmental Rating | IP33 |
| Enclosure | Powder-coated formed-steel backcan; PC/ABS baffle |
| Grille | Bezel-less, paintable SPCC magnetic grille |
| Ceiling Cutout | 168 mm (6.6") |
| Dimensions (H × Dia.) | 143 × 203 mm |
| Backcan Depth Above Ceiling | 134 mm |
| Net Weight | 1.75 kg |
| Operating Temperature | 0°C to 45°C |
| Safety Certifications | UL 1480A, UL 2043, NFPA 90A, NFPA 70, CSA C22.2 No. 205 |
| Applications | Commercial AV, retail, hospitality, education, offices, background music and paging |
