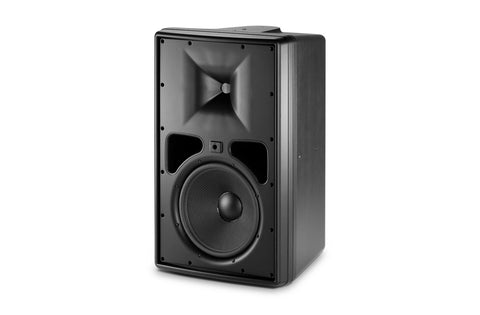

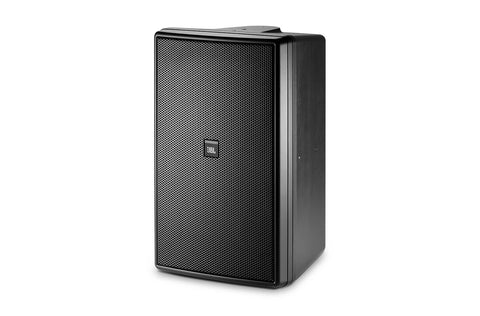

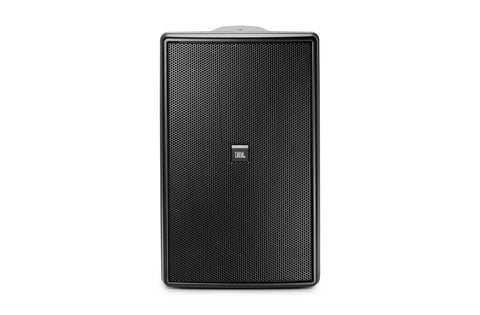

JBL Control 31 Two-Way High-Output Indoor-Outdoor Monitor Speaker
Key Features
Product Description
The JBL Control 31 is a high-output 2-way indoor/outdoor monitor loudspeaker designed for applications requiring powerful, high-fidelity sound with wide and consistent coverage. It combines a 10-inch woven-fiberglass LF driver with JBL’s high-output 2414H-C compression driver to deliver extended bandwidth and smooth, controlled performance.
Its 110° × 110° symmetrical coverage provides consistent sound distribution whether the speaker is installed vertically or horizontally. The Control 31 also features a weather-resistant IP55-rated enclosure, WeatherMax™ grille and corrosion-resistant construction, making it suitable for demanding indoor and outdoor installations.
The speaker offers 8Ω direct operation with 250 W capability, as well as a built-in 150 W transformer for 70V/100V distributed audio systems. JBL's included InvisiBall® mounting system provides flexible and discreet installation, while multiple attachment points allow suspension or optional U-bracket mounting.
Specification
| Brand | JBL Professional |
| Model | Control 31 |
| Type | 2-Way High-Output Indoor/Outdoor Monitor Speaker |
| LF Driver | 250 mm (10") woven-fiberglass cone |
| LF Voice Coil | 52 mm (2") |
| HF Driver | JBL 2414H-C compression driver |
| HF Exit | 25 mm (1") |
| Frequency Range (-10 dB) | 33 Hz – 19 kHz |
| Frequency Response (±3 dB) | 42 Hz – 14 kHz |
| Power Rating | 250 W / 1000 W Peak, 2 hrs; 200 W / 800 W Peak, 100 hrs |
| Sensitivity | 92 dB |
| Maximum SPL | 116 dB Continuous / 123 dB Peak |
| Coverage | 110° H × 110° V |
| Directivity Factor (Q) | 5.7 |
| Directivity Index (DI) | 7.3 dB |
| Nominal Impedance | 8 Ω |
| Transformer Taps – 70V | 150 / 75 / 38 / 19 W |
| Transformer Taps – 100V | 150 / 75 / 38 W |
| Direct / Thru Setting | 8 Ω nominal |
| Recommended High-Pass | 40 Hz, 24 dB/octave |
| Crossover | 2nd-order Low-Pass + 2nd-order High-Pass with conjugate shaping |
| Enclosure | High-impact polystyrene (HIPS), 10% glass-filled |
| Grille | WeatherMax™ multi-layer weather-resistant grille |
| Outdoor Rating | IP55 |
| Mounting | InvisiBall® wall-mount system |
| Dimensions (H × W × D) | 593 × 372 × 345 mm |
| Net Weight | 18.8 kg |
| Colour | Black / White |
