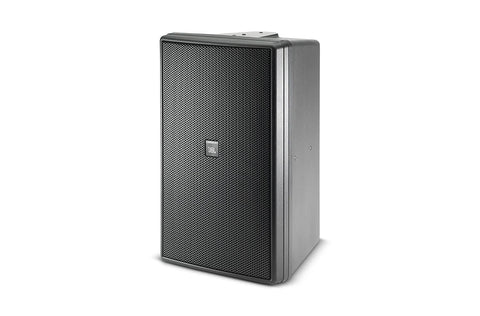

JBL Control 30 Three-Way High Output Indoor / Outdoor Monitor Speaker
Rs. 134,874.00
Key Features
Standard warranty provide by OEM
JBL Control 30 Three-Way High Output Indoor / Outdoor Monitor Speaker
Rs. 134,874.00
Product Description
Three-Way High Output Indoor / Outdoor Monitor Speaker
The Control 30 utilizes high power components, computer optimized horn and coaxial component design, patent-pending cabinet manufacturing techniques, and a complex network to achieve smooth high fidelity performance, extended bandwidth and well-controlled, defined coverage from a compact loudspeaker.
Specification
| Brand | JBL Professional |
| Model | Control 30 |
| Type | 3-Way High-Output Indoor/Outdoor Monitor Speaker |
| LF Driver | 250 mm (10") fiberglass/Kevlar® cone, neodymium magnet |
| MF Driver | 125 mm (5") anodized aluminum cone |
| HF Driver | 25 mm (1") titanium diaphragm compression driver |
| Frequency Range (-10 dB) | 38 Hz – 17 kHz |
| Frequency Response (±3 dB) | 40 Hz – 16 kHz |
| Power Capacity | 500 W Continuous Program / 250 W Continuous Pink Noise |
| Maximum SPL | 123 dB Short-Term / 117 dB Long-Term |
| Sensitivity | 93 dB, 1 W @ 1 m |
| Coverage | 120° H × 110° V |
| Directivity Factor (Q) | 5.2 |
| Directivity Index (DI) | 7.1 dB |
| Nominal Impedance | 4 Ω |
| Transformer Taps – 70V | 150 / 75 / 38 / 19 W |
| Transformer Taps – 100V | 150 / 75 / 38 W |
| Thru Position | 4 Ω nominal |
| Crossover | 3rd-order LF low-pass, 2nd-order MF high-pass / 3rd-order MF low-pass, 3rd-order HF high-pass |
| Enclosure | High-Impact Polystyrene (HIPS), 10% glass-filled |
| Grille | Thermoset composite-coated steel with WeatherMax™ multi-layer foam |
| Protection | SonicGuard® full-range power limiting |
| Environmental Rating | IP-X5; exceeds Mil-Spec 810 |
| Input | Screw-down terminal strip |
| Mounting | InvisiBall® mounting system; 10 × 6 mm attachment points |
| Dimensions (H × W × D) | 593 × 372 × 345 mm |
| Net Weight | 18.9 kg |
| Shipping Weight | 20.3 kg |
| Colour | Black / White |
