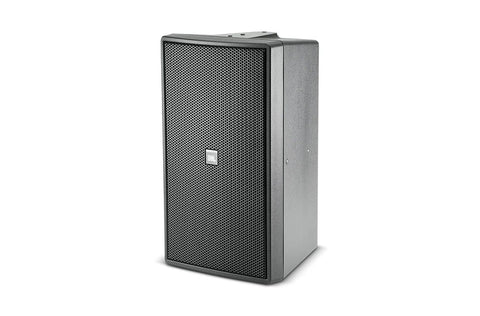

JBL Control 29AV-1 Premium Indoor / Outdoor Monitor Speaker
Rs. 60,652.00
Key Features
Standard warranty provide by OEM
JBL Control 29AV-1 Premium Indoor / Outdoor Monitor Speaker
Rs. 60,652.00
Product Description
The JBL Control 29AV-1 is a premium 2-way 8-inch indoor/outdoor surface-mount loudspeaker with a rotatable 110° × 85° horn, 8Ω bypass, and 70V/100V transformer operation. JBL specifies IP-X4 splash resistance and SonicGuard™ overload protection.
Specification
| Model | JBL Control 29AV-1 |
| Product Type | 2-Way Indoor/Outdoor Surface-Mount Loudspeaker |
| LF Driver | 8" (200 mm) Kevlar cone woofer |
| LF Voice Coil | 2" (50 mm) |
| HF Driver | 1" (25 mm) titanium diaphragm compression driver |
| Frequency Range (-10 dB) | 37 Hz – 18 kHz |
| Frequency Response (±3 dB) | 43 Hz – 15 kHz |
| Power Capacity | 300 W Continuous Program / 150 W Continuous Pink Noise |
| Sensitivity | 90 dB, 1 W @ 1 m |
| Maximum SPL | 118 dB Short-Term / 112 dB Long-Term |
| Coverage | 110° H × 85° V, rotatable |
| Directivity Factor (Q) | 6.7 |
| Directivity Index (DI) | 8.3 dB |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.3 Ω @ 230 Hz |
| Crossover Frequency | 2.5 kHz |
| Transformer Taps – 70V | 110 W / 55 W / 28 W / 14 W |
| Transformer Taps – 100V | 110 W / 55 W / 28 W |
| Thru Position | 8 Ω nominal |
| Overload Protection | SonicGuard™ full-range power limiting |
| Enclosure | High-impact polystyrene |
| Grille | Thermoset composite-coated steel |
| Environmental Rating | IEC 529 IP-X4 splashproof |
| Mounting | InvisiBall™ mounting system; 10 × 6 mm attachment points |
| Dimensions (H × W × D) | 520 × 306 × 277 mm |
| Net Weight | 12.2 kg |
| Shipping Weight | 14.0 kg |
| Colors | Black / White (-WH) |
| Optional Accessories | MTC-29CM ceiling adapter, MTC-29UB U-bracket |
