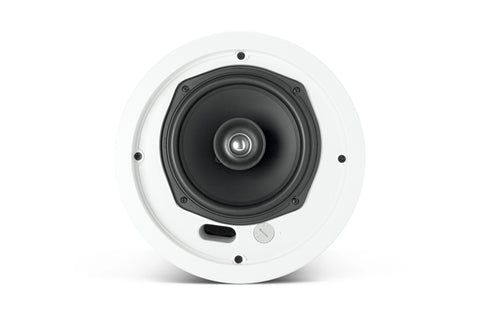

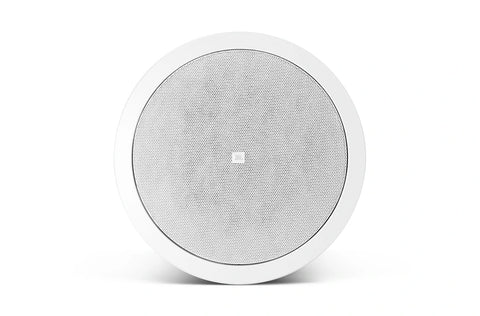

JBL Control 26CT-LS 2-Way Coaxial Ceiling Loudspeaker
Rs. 28,084.00
Key Features
Standard warranty provide by OEM
JBL Control 26CT-LS 2-Way Coaxial Ceiling Loudspeaker
Rs. 28,084.00
Product Description
Ceiling Loudspeaker Assembly for Life Safety Applications
The Control 26CT-LS is a compact ceiling speaker providing premium performance in background or foreground music sound systems.
Specification
| Model | JBL Control 26CT-LS |
| Product Type | 2-Way Coaxial Ceiling Loudspeaker |
| Application | Life-Safety, Background & Foreground Music |
| LF Driver | 6.5" (165 mm) woofer |
| HF Driver | 0.75" (19 mm) titanium-coated tweeter |
| Frequency Range (-10 dB) | 80 Hz – 20 kHz |
| Power Capacity | 150 W Continuous Program / 75 W Continuous Pink Noise |
| Sensitivity | 89 dB SPL, 1 W @ 1 m |
| Coverage | 110° conical |
| Directivity Factor (Q) | 5.9 |
| Directivity Index (DI) | 4.6 dB |
| Maximum SPL | 107 dB @ 1 m |
| Transformer Taps – 70V | 60 W / 30 W / 15 W / 7.5 W |
| Transformer Taps – 100V | 60 W / 30 W / 15 W |
| Transformer Insertion Loss | < 0.8 dB |
| Enclosure / Backcan | Formed steel |
| Baffle/Rim | Medium-impact polystyrene, UL94V-0 fire rated |
| Input Connector | Removable locking connector with screw-down terminals |
| Ceiling Cutout | 220 mm |
| Dimensions (H × Dia.) | 210 × 252 mm |
| Depth from Ceiling Tile | 190 mm |
| Net Weight | 4.2 kg each |
| Shipping Weight | 9.7 kg per pair |
| Color | White |
| Safety Rating | UL1480 UUMW, UL2043, NFPA90, NFPA70; IEC60849/EN60849 |
| Plenum Use | Yes, backcan included |
| Included Accessories | C-ring support plate, 2 tile rails, cutout template, paint shield, Euroblock connector |
