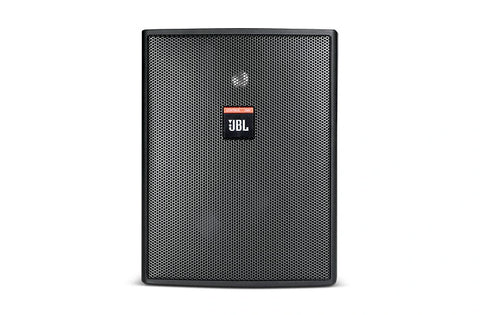

JBL Control 25AV-LS Two-Way Professional Compact Loudspeaker
Key Features
Product Description
Compact Indoor Outdoor Background Foreground Loudspeaker for Life Safety Applications
The Control 25AV-LS is built on the same platform as our popular Control 25AV and is UL 1480 UUMW listed for use in fire alarm and/ or emergency communication systems. The Control 25AV-LS utilizes a deep cabinet, high power components and complex network to achieve extremely smooth high fidelity performance from a compact 2-way loudspeaker. Premium performance capability and even coverage ensures excellent sound quality throughout the listening area.
A top-quality, low saturation transformer, enables the loudspeaker to be used on either 70 volt or 100 volt distributed speaker lines, with similar fidelity performance to the 8 ohm bypass position.
The patented InvisiBall® mounting method is simple to install, aims easily, and provides a high degree of theft deterrence. The cabinet accepts a variety of paints to match any décor. Weather resistance is maximized by utilizing an aluminum grille featuring polyester powder coating and liquid-tight MTC-PC2 terminal covers.
Coating the woofer cone in polypropylene and terminating its circumference in JBL’s WeatherEdge™, a seamless, butyl rubber extension of the woofer surround, protects critical transducer elements. The polycarbonate tweeter diaphragm is reinforced with a thin film of titanium for added rigidity and endurance. Nickel/zinc rust-resistant terminals ensure a secure input connection.
Specification
| Model | JBL Control 25AV-LS |
| Product Type | 2-Way Professional Compact Loudspeaker |
| Application | Life-Safety / Emergency Communication / Commercial Audio |
| LF Driver | 5.25" (130 mm) polypropylene-coated woofer |
| LF Voice Coil | 1" (25 mm) |
| HF Driver | 0.75" (20 mm) titanium-coated PEI |
| Frequency Range (-10 dB) | 90 Hz – 20 kHz |
| Power Capacity | 200 W Continuous Program / 100 W Continuous Pink Noise |
| Transformer Power | 60 W |
| Sensitivity | 87 dB @ 1 W/1 m in 8Ω bypass; 71 dB @ 1 W/4 m per EN54-24 at 60 W tap |
| Coverage | 110° × 85° |
| Directivity Factor (Q) | 4.8 |
| Directivity Index (DI) | 6.5 dB |
| Maximum SPL | 107 dB average / 113 dB peak @ 1 m, 8Ω bypass |
| Nominal Impedance | 8 Ω bypass |
| Transformer Taps – 70V | 60 W / 30 W / 15 W / 7.5 W |
| Transformer Taps – 100V | 60 W / 30 W / 15 W |
| Enclosure | ABS, UL94-5VA rated |
| Grille | Aluminum with polyester powder coating |
| Input Connectors | Captive screw-down terminals |
| Safety Certifications | UL-1480 UUMW, EN54-24:2008, NFPA90, NFPA70A |
| Dimensions (H × W × D) | 236 × 186 × 159 mm |
| Net Weight | 3.8 kg each |
| Mounting | InvisiBall™ wall-mounting system |
| Color | Black / White options |
