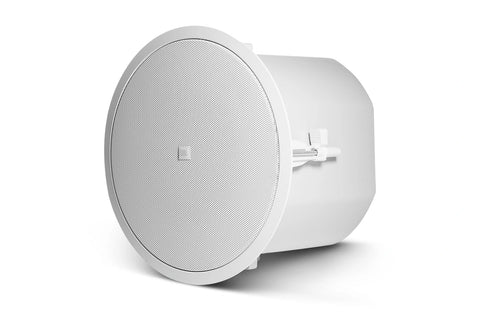

JBL Control 226C/T 6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver
Rs. 52,156.00
Key Features
Standard warranty provide by OEM
JBL Control 226C/T 6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver
Rs. 52,156.00
Product Description
6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver
The JBL Professional Control 226C/T is a premium in-ceiling professional loudspeaker designed for applications requiring superior quality sound in ceiling mount applications.
Specification
| Brand | JBL Professional |
| Model | Control 226C/T |
| Product Type | 2-Way Coaxial Ceiling Loudspeaker |

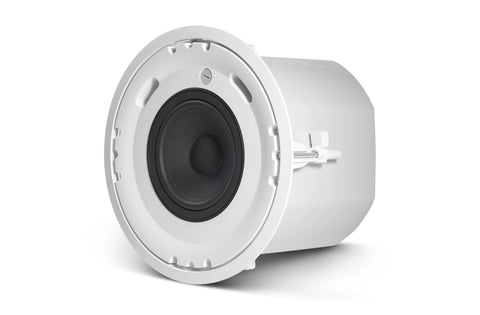

| LF Driver | 165 mm (6.5") Kevlar-Reinforced Woofer |
| HF Driver | 25 mm (1") Compression Driver |
| Frequency Range (-10 dB) | 47 Hz – 19 kHz |
| Frequency Response (±3 dB) | 74 Hz – 17 kHz |
| Coverage | 120° Conical, Constant Directivity |
| Sensitivity | 90 dB |
| Power Rating | 150 W Continuous Pink Noise / 600 W Peak, 2 hrs |
| Long-Term Power | 100 W Continuous / 400 W Peak, 100 hrs |
| Maximum SPL | 112 dB Continuous Average / 118 dB Peak |
| Nominal Impedance | 8 Ω |
| Transformer Taps | 70V: 68 W / 34 W / 17 W / 8.5 W; 100V: 68 W / 34 W / 17 W |
| Transformer Bypass | Yes, 8 Ω |
| Crossover Frequency | 2.2 kHz |
| Crossover Type | 3rd-order, 18 dB/octave |
| Enclosure / Backcan | Formed Steel Integrated Backcan |
| Baffle / Rim | ABS, UL94-V0 Flame Rated |
| Ceiling Cutout | Ø307 mm (12.1") |
| Overall Diameter | Ø330 mm (13") |
| Depth | 246 mm (9.7") |
| Ceiling Thickness | 12–70 mm |

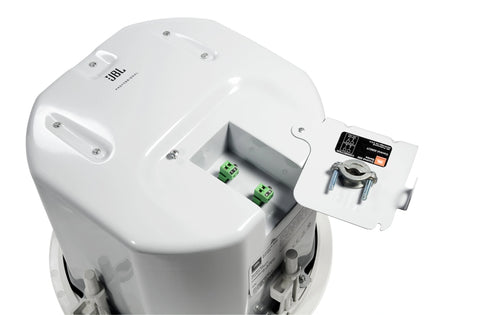

| Input Connector | Removable Locking Connector with Screw Terminals |
| Safety Certifications | UL1480, UL2043, NFPA90, NFPA70, IEC60849/EN60849 |
| Plenum Rated | Yes |
| Net Weight | 9.1 kg |
| Color | White |
