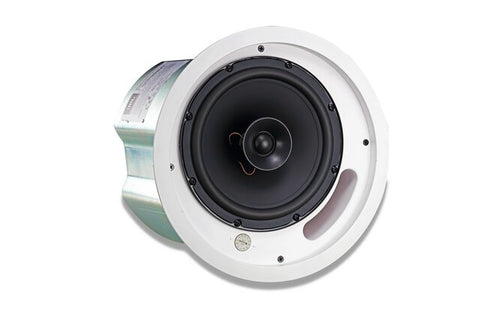

JBL Control 18C/T Two-Way 8-Inch Coaxial Ceiling Loudspeaker
Rs. 30,680.00
Key Features
Standard warranty provide by OEM
JBL Control 18C/T Two-Way 8-Inch Coaxial Ceiling Loudspeaker
Rs. 30,680.00
Product Description
Two-Way 8-Inch Coaxial Ceiling Loudspeaker
Control 18C/T is a full-range ceiling speaker consisting of a 200 mm (8.0 inch) high tech cone driver and a 25 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with an integrated backcan for quick and easy installation. The speaker is designed to provide excellent sound quality for a wide variety of medium to high volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more.
Specification
| Brand | JBL Professional |
| Model | Control 18C/T |
| Product Type | 2-Way 8" Coaxial Ceiling Loudspeaker |
| LF Driver | 1 × 200 mm (8") High-Output Driver |
| HF Driver | 1 × 25 mm (1") Soft-Dome Liquid-Cooled Tweeter |
| Frequency Range (-10 dB) | 58 Hz – 20 kHz |
| Coverage | 90° Conical |
| Power Capacity | 180 W Continuous Program / 90 W Continuous Pink Noise |
| Sensitivity | 92 dB |
| Maximum SPL | 112 dB Average / 118 dB Peak @ 1 m |
| Nominal Impedance | 8Ω |
| Transformer Taps | 60 W / 30 W / 15 W @ 70V & 100V; 7.5 W @ 70V |
| Operation | 8Ω Direct / 70V / 100V |
| Enclosure / Backcan | Integrated Blind-Mount Backcan |
| Baffle Material | UV-Resistant ABS, UL94-V0 / UL94-5HB |
| Grille | Paintable |
| Ceiling Cutout | 276 mm |
| Overall Diameter | 307 mm |
| Depth | Approx. 290 mm |
| Color | White / Black |
| Status | Discontinued |
