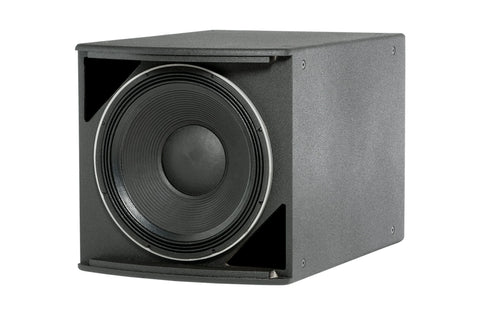

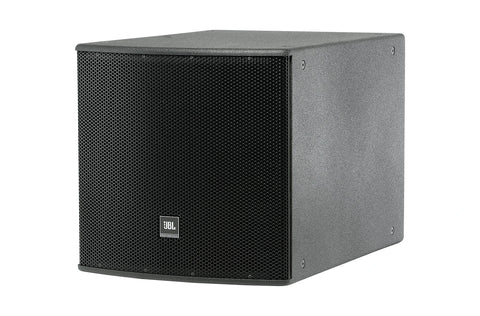

JBL ASB7118 High Power 18-inch Subwoofer
Rs. 419,372.00
Key Features
Standard warranty provide by OEM
JBL ASB7118 High Power 18-inch Subwoofer
Rs. 419,372.00
Product Description
Ultra Long Excursion High Power 18-inch Subwoofer
The ASB7118 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s exclusive 2269H Ultra Long Excursion 18" Differential Drive® woofer. This woofer features neodymium magnet, dual voice coils and dual gaps, JBL’s exclusive Vented Gap Cooling™ and ultra robust composite cone for high excursion and extra long life. Woofer is capable of a peak-to-peak maximum excursion of 89 mm (3.5").
Specification
| Specification | Details |
|---|---|
| Brand | JBL Professional |
| Model | ASB7118 |
| System Type | Ultra High-Power 18" Subwoofer |
| Enclosure Type | Front-Loaded Vented |
| LF Driver | 1 × JBL 2269H, 18" Differential Drive® |
| Voice Coil | 4" Dual Coil, Dual Gap |
| Magnet | Neodymium |
| Maximum Excursion | 89 mm (3.5") peak-to-peak |
| Frequency Range (-10 dB) | 22 Hz – 1 kHz |
| Frequency Response (±3 dB) | 34 Hz – 1 kHz |
| Transducer Power Rating (AES) | 2000 W / 8000 W Peak, 2 hrs |
| Long-Term System Power | 1200 W / 4800 W Peak, 100 hrs |
| Maximum SPL | 129 dB Continuous Average / 135 dB Peak |
| Maximum SPL Band | 25 Hz – 200 Hz |
| System Sensitivity | 96 dB SPL, 1 W @ 1 m |
| Nominal Impedance | 8 Ω |
| Enclosure Material | 16 mm 11-ply exterior-grade birch plywood |
| Suspension Points | 16 × M10 threaded attachment points |
| Input Connectors | NL4 Neutrik Speakon® + covered barrier strip terminals |
| Grille | Powder-coated 14-gauge perforated steel with acoustically transparent foam |
| Environmental Rating | MIL-STD 810; IP-X3 |
| Dimensions (H × W × D) | 546 × 560 × 815 mm |
| Net Weight | 42.9 kg |
| Finish | Black DuraFlex™; White available on request |
| Optional Accessories | M10 × 35 mm forged shoulder eyebolts with washers |
