JBL ASB6125 Dual 15" High-Power Subwoofer
Rs. 398,486.00
Key Features
Standard warranty provide by OEM
JBL ASB6125 Dual 15" High-Power Subwoofer
Rs. 398,486.00
Product Description
High Power Dual 15-inch Subwoofer

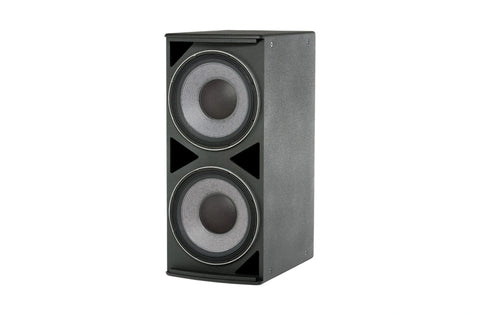

The ASB6125 is a high power, lightweight front-loaded vented subwoofer enclosure housing two JBL 2265H-1 Differential Drive® dual voice coil dual gap 15" woofers. These woofers feature neodymium magnets and ultra robust cones for extra long life.
Specification
| Brand | JBL Professional |
| Model | ASB6125 |
| System Type | Dual 15" High-Power Subwoofer |
| Enclosure Type | Front-Loaded Vented |
| LF Drivers | 2 × JBL 2265H-1, 15" Differential Drive® |
| Voice Coil | 3" Dual Coil, Dual Gap |
| Magnet | Neodymium |
| Frequency Range (-10 dB) | 32 Hz – 1 kHz |
| Frequency Response (±3 dB) | 38 Hz – 1 kHz |
| Input Modes | Drivers Parallel / Drivers Discrete |
| Transducer Power Rating (AES) | 1600 W / 6400 W Peak, 2 hrs |
| Long-Term System Power | 1350 W / 5400 W Peak, 100 hrs |
| Maximum SPL | 132 dB-SPL Continuous Average / 138 dB Peak |
| Maximum SPL Band | 35 Hz – 400 Hz |
| System Sensitivity | 100 dB-SPL, 1 W @ 1 m |
| Nominal Impedance | 4 Ω Parallel / 2 × 8 Ω Discrete |
| Enclosure Material | 16 mm 11-ply exterior-grade birch plywood |
| Suspension Points | 16 × M10 threaded attachment points |
| Input Connectors | NL4 Neutrik Speakon® + covered barrier strip |

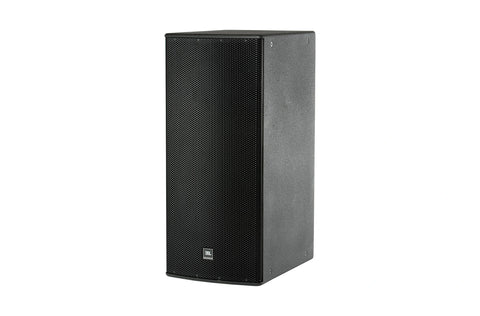

| Grille | Powder-coated 14-gauge perforated steel with acoustically transparent foam |
| Environmental Rating | MIL-STD 810; IP-X3 |
| Dimensions (H × W × D) | 965 × 419 × 597 mm |
| Net Weight | 36.7 kg |
| Finish | Black DuraFlex™; White available on request |
| Optional Accessories | M10 × 35 mm forged shoulder eyebolts with washers |
