JBL AM7200/95 High-Power 2-Way Mid-High Frequency Loudspeaker
Key Features
Product Description
High Power Mid-High Frequency

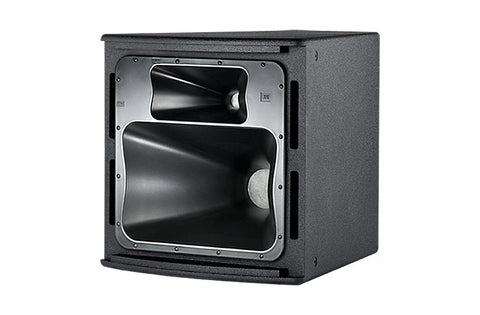

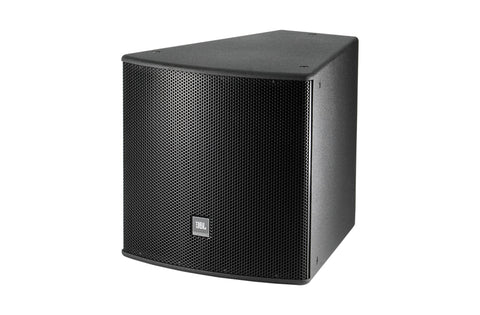

AM7200 speakers are high power mid-high frequency loudspeaker system comprised of one 200 mm (8 in) CMCD Cone Midrange Compression Driver and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Preengineered array bracketry is available. AM7200 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
Specification
| Brand | JBL Professional |
| Model | AM7200/95 |
| System Type | High-Power 2-Way Mid-High Frequency Loudspeaker |
| Midrange Driver | JBL CMCD-82H Cone Midrange Compression Driver |
| Midrange Driver Size | 8" (200 mm) Differential Drive® dual voice-coil |
| HF Driver | JBL 2432H Compression Driver |
| HF Exit | 1.5" (38 mm) |
| HF Voice Coil | 3" (75 mm) |
| Frequency Range (-10 dB) | 260 Hz – 20 kHz |
| Frequency Response (±3 dB) | 330 Hz – 18 kHz |
| Coverage Pattern | 90° × 50°, Rotatable |
| Directivity Factor (Q) | 11 |
| Directivity Index (DI) | 10.5 dB |
| System Sensitivity | 108 dB SPL (1W/1m), Passive |
| Maximum SPL – Bi-Amp | MF: 133 dB Continuous / 139 dB Peak; HF: 133 dB Continuous / 139 dB Peak |
| Maximum SPL – Passive | 133 dB Continuous / 139 dB Peak |
| Nominal Impedance | 8 Ω |
| MF Sensitivity | 108 dB SPL |
| HF Sensitivity | 115 dB SPL |
| MF Power Rating | 350 W AES / 1400 W Peak |
| HF Power Rating | 100 W AES / 400 W Peak |
| System Power Rating | 200 W / 800 W Peak, 100-hour IEC |
| Crossover Mode | Bi-Amp / Passive Switchable |
| Crossover Frequency | 2.2 kHz |
| Waveguide | PT-K95MH Progressive Transition™ |
| Enclosure | Trapezoidal, 16 mm 11-ply Finnish birch plywood |
| Suspension Points | 13 × M10 threaded points |
| Input Connectors | NL4 Neutrik Speakon® + covered barrier-strip terminals |
| Grille | Powder-coated 14-gauge perforated steel with acoustic foam backing |
| Environmental Rating | MIL-STD 810 / IPX3 |
| Dimensions (H × W × D) | 548 × 561 × 657 mm |
| Weight | 27.2 kg |
| Finish | Black DuraFlex™; White available |
