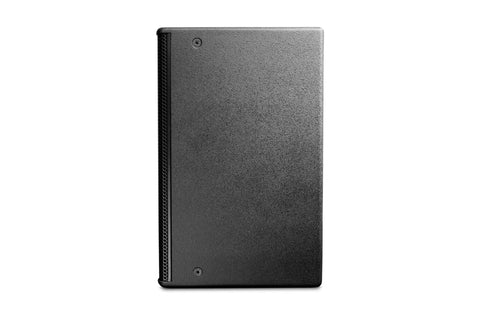

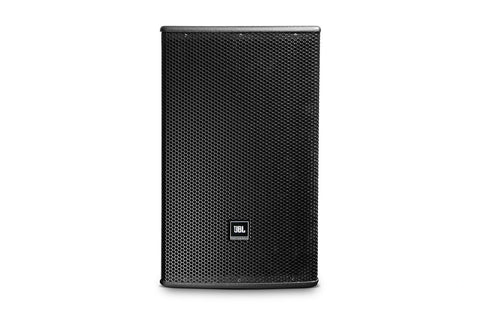

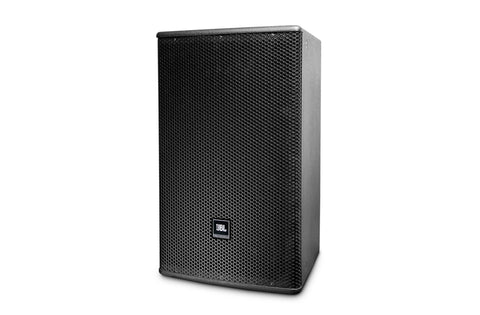

JBL AC566 15-inch 2-Way Speaker with 60° x 60° Horn
Rs. 174,599.00
Key Features
Standard warranty provide by OEM
JBL AC566 15-inch 2-Way Speaker with 60° x 60° Horn
Rs. 174,599.00
Product Description
15-inch 2-Way Speaker with 60° x 60° Horn

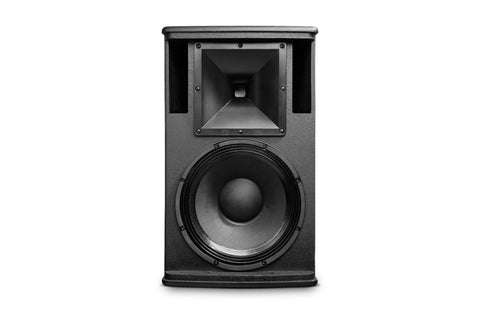

AC566 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC566 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications
Specifications
| Brand | JBL Professional |
| Model | AC566 |
| System Type | 2-Way Full-Range Passive Loudspeaker |
| LF Driver | 1 × 15" (384 mm) woofer |
| LF Voice Coil | 66 mm (2.5") |
| HF Driver | 1 × JBL 2408H-2 compression driver |
| HF Exit | 25 mm (1") |
| HF Voice Coil | 38 mm (1.5") |
| Frequency Range (-10 dB) | 60 Hz – 20 kHz |
| Frequency Response (±3 dB) | 75 Hz – 18 kHz |
| Sensitivity | 98 dB SPL (1W/1m) |
| Maximum SPL | 122 dB / 128 dB Peak |
| AES Power Rating | 350 W / 1400 W Peak |
| IEC Power Rating | 250 W Continuous / 500 W Program / 1000 W Peak |
| Nominal Impedance | 8 Ω |
| Coverage Pattern | 60° × 60° H × V |
| Crossover Frequency | 1.5 kHz |
| Crossover Mode | Passive |
| Input Connectors | Dual Neutrik NL4MP + covered barrier terminals |
| Enclosure | 15 mm multi-ply hardwood plywood |
| Grille | 1.5 mm perforated steel with acoustic foam backing |
| Suspension | 14 × M10 + 4 × M10 wall-mount points |
| Dimensions (H × W × D) | 680 × 420 × 445 mm |
| Weight | 19.8 kg |
| Finish | Textured black; White (-WH) available |
