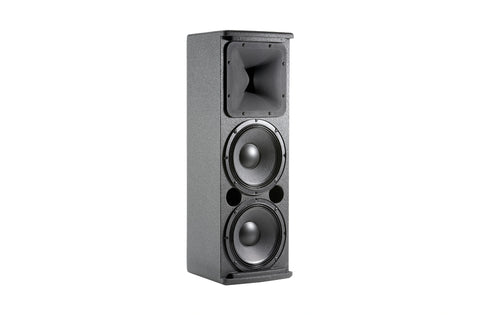

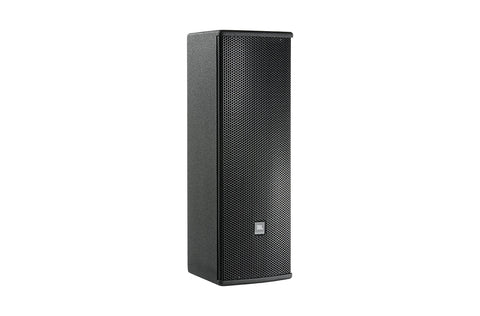

JBL AC28/26 Compact Dual 8-inch 2-way Loudspeaker with 120° x 60° Horn
Rs. 215,599.00
Key Features
Standard warranty provide by OEM
JBL AC28/26 Compact Dual 8-inch 2-way Loudspeaker with 120° x 60° Horn
Rs. 215,599.00
Product Description
Compact Dual 8-inch 2-way Loudspeaker with 120° x 60° Rotatable Horn
An extension of the industry-leading AE Series, the AE Compact family consists of high output, 2-way loudspeaker systems combining flexibility with high fidelity. Ranging from a single 5.25" point-and-shoot box to dual 8" loudspeaker system that are specifically designed for better serving the needs of both designers and artists alike. The ultra-compact AC15 and AC25 models include a 1" dome tweeter, while the AC16, AC26, AC18, and AC28 models feature 1" exit compression drivers, providing sonic clarity and crisp detail. Furthermore, the AC18 and AC28, featuring JBL's Progressive TransitionTM Rotatable Waveguides, offer the system designer a choice of coverage patterns in either 90° x 50° or 120° x 60° configurations.
Specifications
| Brand | JBL Professional |
| Model | AC28/26 |
| System Type | Compact 2-Way Loudspeaker |
| LF Drivers | 2 × JBL 228J, 8" (205 mm) SFG™ |
| HF Driver | 1 × 2408H-1, 1" (25 mm) exit compression driver |
| Frequency Range (-10 dB) | 53 Hz – 20 kHz |
| Frequency Response (±3 dB) | 65 Hz – 20 kHz |
| Coverage Pattern | 120° × 60° H × V |
| Sensitivity | 94 dB SPL (1W/1m) |
| Maximum SPL | 120 dB |
| AES Power Rating | 700 W |
| Power Rating | 375 W Continuous / 750 W Program / 1500 W Peak |
| Nominal Impedance | 8 Ω |
| Crossover Frequency | 2.1 kHz |
| HF Waveguide | PT-D126HF-1, field rotatable |
| Enclosure | 12 mm & 15 mm exterior-grade multi-ply hardwood plywood |
| Connectors | 2 × Neutrik NL4 in parallel + covered barrier terminals |
| Suspension | 6 × M8 attachment points |
| Environmental Rating | MIL-STD 810; IPX3 |
| Dimensions (H × W × D) | 679.5 × 237.5 × 254 mm |
| Weight | 18.6 kg |
| Finish | Black DuraFlex™; White available on request |
