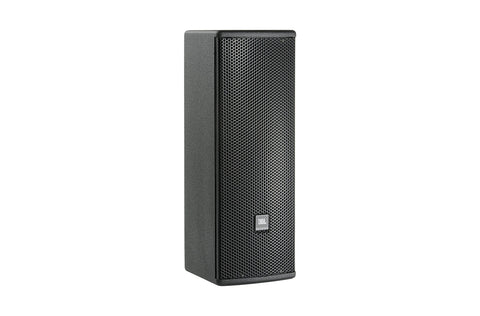

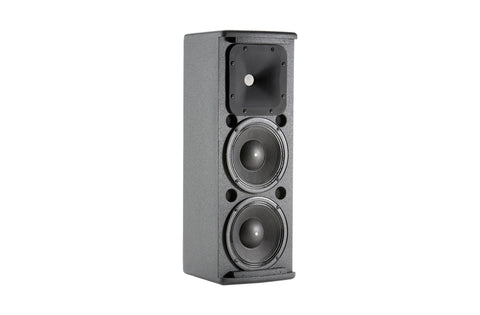

JBL AC26 Ultra Compact 6-inch 2-way Loudspeaker
Rs. 166,599.00
Key Features
Standard warranty provide by OEM
JBL AC26 Ultra Compact 6-inch 2-way Loudspeaker
Rs. 166,599.00
Product Description
Ultra Compact 6-inch 2-way Loudspeaker
An extension of the industry-leading AE Series, the AE Compact family consists of high output, 2-way loudspeaker systems combining flexibility with high fidelity. Ranging from a single 5.25" point-and-shoot box to dual 8" loudspeaker system that are specifically designed for better serving the needs of both designers and artists alike. The ultra-compact AC15 and AC25 models include a 1" dome tweeter, while the AC16, AC26, AC18, and AC28 models feature 1" exit compression drivers, providing sonic clarity and crisp detail. Furthermore, the AC18 and AC28, featuring JBL's Progressive TransitionTM Rotatable Waveguides, offer the system designer a choice of coverage patterns in either 90° x 50° or 120° x 60° configurations.
Specifications
| Brand | JBL Professional |
| Model | AC26 |
| System Type | Ultra-Compact 2-Way Loudspeaker |
| LF Drivers | 2 × JBL 226J, 6.5" (165 mm) SFG™ |
| HF Driver | 1 × 2414H, 1" (25 mm) exit compression driver |
| Frequency Range (-10 dB) | 55 Hz – 20 kHz |
| Frequency Response (±3 dB) | 70 Hz – 18 kHz |
| Coverage | 90° × 90° H × V |
| Sensitivity | 92 dB SPL (1W/1m) |
| Maximum SPL | 117 dB |
| AES Power Rating | 350 W |
| Power Rating | 180 W Continuous / 360 W Program / 720 W Peak |
| Nominal Impedance | 8 Ω |
| Crossover Frequency | 2.2 kHz |
| Enclosure | 12 mm & 15 mm exterior-grade multi-ply hardwood plywood |
| Connectors | Dual Neutrik NL4 + covered screw/barrier terminals |
| Dimensions (H × W × D) | 539.8 × 199.4 × 226.1 mm |
| Weight | 11.0 kg |
| Suspension | 6 × M8 points + 4 × M6 rear points |
| Environmental Rating | MIL-STD 810 / IPX3 |
| Finish | Black DuraFlex™; White available on request |
